Product Information

05020GA-24M-AA-00

05020GA-24M-AA-00 electronic component of MinebeaMitsumi

Datasheet
Blowers & Centrifugal Fans DC Blower, 50x20mm, 24VDC, 5.6CFM, Lead Wires
Manufacturer: MinebeaMitsumi
Large
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 16.075 ea
Line Total: USD 16.08

164 - Global Stock
Ships to you between
Mon. 13 May to Wed. 15 May
MOQ: 1  Multiples: 1
Pack Size: 1

 More Buying Options & Price Grid(s)

Availability Price Quantity
159 - WHS 1


Ships to you between Mon. 13 May to Wed. 15 May

MOQ : 1
Multiples : 1

Stock Image

05020GA-24M-AA-00
MinebeaMitsumi

1 : USD 14.789
10 : USD 14.122
25 : USD 13.2825
50 : USD 13.0295
120 : USD 11.4425
1080 : USD 11.293
2520 : USD 11.2815

Read More Specifications


Manufacturer
Product Category
RoHS - XON
Icon ROHS
Type
Current Type
Operating Supply Voltage
Airflow
Bearing Type
Noise
Speed
Power Rating
Height
Width
Housing Material
Termination Style
Series
Frame Dimensions - mm
Length
Pressure Type
Product
Size
Brand
Factory Pack Quantity :
Cnhts
Hts Code
Product Type
Subcategory
Taric
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Minebeamitsumi"

Image Description
432002 electronic component of MinebeaMitsumi 432002

Fan Accessories Fan Cord, 48 Inch Length, Straight
Stock : 524

432020 electronic component of MinebeaMitsumi 432020

Fan Accessories Fan Cord, 36 Inch Length, Straight
Stock : 493

055010 electronic component of MinebeaMitsumi 055010

Fan Accessories Fan Guard for 5900/6800 Series, 150x172mm
Stock : 27

055031 electronic component of MinebeaMitsumi 055031

Thrml Mgmt Access Fan Guard 50mm Carbon Steel
Stock : 15

432021 electronic component of MinebeaMitsumi 432021

Fan Accessories Fan Cord, 36" Length, Right Angle
Stock : 45

055018 electronic component of MinebeaMitsumi 055018

Thrml Mgmt Access Fan Guard Carbon Steel Alloy
Stock : 49

1608KL-04W-B20-L00 electronic component of MinebeaMitsumi 1608KL-04W-B20-L00

DC Fan Axial Ball Bearing 12V 10.2V to 13.8V 6CFM 22.5dB 40 X 40 X 20mm
Stock : 0

055025 electronic component of MinebeaMitsumi 055025

Thrml Mgmt Access Fan Guard 40mm Carbon Steel Alloy
Stock : 790

03510SS-05X-AT-00 electronic component of MinebeaMitsumi 03510SS-05X-AT-00

DC Fans Fan, 60x15mm, 24VDC Rib, Tach, 3Wire
Stock : 60

055015 electronic component of MinebeaMitsumi 055015

Thrml Mgmt Access Fan Guard 120mm Carbon Steel Alloy
Stock : 2914

More Products By Category "Blowers & Centrifugal Fans"

Image Description
BFB0512HHA-C electronic component of Delta BFB0512HHA-C

Blowers & Centrifugal Fans DC Blower, 50x10mm, 12VDC, Ball Bearing, Lead Wires, Locked Rotor Sensor
Stock : 528

OAB908AN-22-1/2 electronic component of Orion OAB908AN-22-1/2

Blowers & Centrifugal Fans AC Blower, Dual Speed, Side Inlet, 183x190x70mm, 230VAC, 100CFM, 80W, 68dBA, 3100RPM, Sealed Dual Ball Bearing, Wire Leads
Stock : 9

RER100-25/14 electronic component of ebm papst RER100-25/14

DC Motorized Impeller Centrifugal Ball Bearing 24V 12V to 28V 33.6CFM 47dB 100 X 32mm
Stock : 0

55442.40765 electronic component of ebm papst 55442.40765

AC Blower Sleeve Bearing 220V/240V 28W 50Hz/60Hz 75CFM 50dB Flange Mount
Stock : 15

UB3F3-700 electronic component of Sunon UB3F3-700

Blowers DC Blower, 15x3mm, 3VDC, 4.53CFM, 0.1W, 30.0/30cm dBA, 14000RPM, 33.85inch H2O, Vapo Bearing, 2 Lead Wire, IP55, Mighty Mini Series
Stock : 0

R2S133-AE17-05 electronic component of ebm papst R2S133-AE17-05

Blowers & Centrifugal Fans AC Backward-Curved Motorized Impeller, 133mm Round, 230VAC, 188CFM
Stock : 5

OA254AP-11-1TB electronic component of Orion OA254AP-11-1TB

Blowers & Centrifugal Fans AC Blower, 254x89mm, 115VAC, 547CFM, 33W, 55dBA, 1650RPM, Dual Ball, Terminal
Stock : 124

CBM-5015V-140 electronic component of CUI Devices CBM-5015V-140

CBM-50V Series 4000 RPM 50 x 50 mm 3.5 CFM 12 V OmniCOOL Bearing DC Blower
Stock : 0

EF50151B2-1B00U-A99 electronic component of Sunon EF50151B2-1B00U-A99

Blowers & Centrifugal Fans Blower, 50x15mm, 12VDC, 3.5CFM, 3.5CFM, 0.65W, 34dBA, 0.4 inchH2O, 2Ball Bearing
Stock : 189

3105310 electronic component of Rittal 3105310

Heater; heatsink; SK 3105; 8÷10W; 110÷240V; IP20; screw,DIN rail
Stock : 3

Additional Infomation About Product

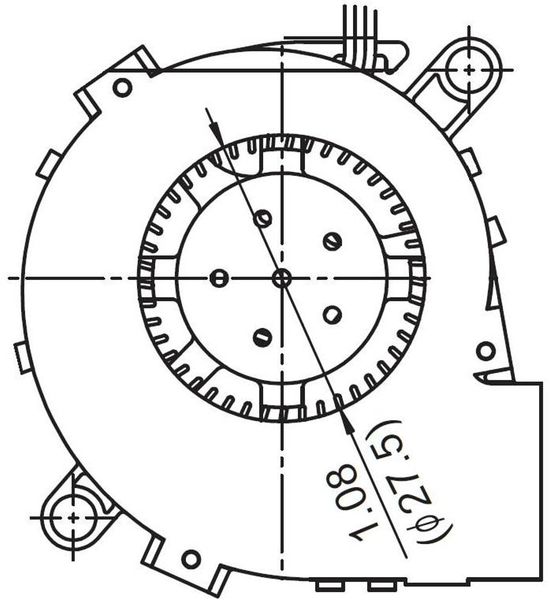

L 05020GA BM5020 50X20 DCBlowerFan General Specications Motor Protection Auto Restart / Polarity Protection DC500V 10M Insulation Resistance 10M or over with a DC500V Megger AC700V 1s Dielectric Withstand Voltage K, L Class10 +70 (Operating) Allowable Ambient M Class 10 +60 (Operating) Temperature Range 40 +70 (Storage) non-condensing environment 10% L10 Life Expected Life Failure Rate: 10% L10 Life Outline 25 50,000 (Hours) (50) 0.3 0.5 2 4.3 (20) (27.5) 38.0 0.3 0.3 0.2 (18) (20) 2.0 17.5 0.5 AIR NAME AIR AIR PLATE (2.5) (6) (24.9) 0.3 10.0 Characteristic Curves Material 200 UL94V-0 M Class UL94V-0 150 L Class UL1061 AWG26 + 100 K Class Casing Lower Plastic (Black) UL94V-0 Ps Casing Upper Steel (Pa) Impeller Plastic (Black) UL94V-0 50 Bearing Ball Bearing Lead Wire UL1061 AWG26 + Red, Black 0 0 0.04 0.08 0.12 0.16 0.20 3 Q (m /min) Air Flow Specications Rating Voltage Operating Voltage Current Input Power Speed Max.Air Flow Max. Static Pressure Noise Mass Model 1 1 -1 1 3 1 1 1 Product No. (V) (V) (A)* (W)* (min )* (m /min)* (CFM)* (Pa) (In H2O) (dB)* (g) 05020GA-12K-AA- 00 0.07 0.84 3600 0.10 3.5 75.0 0.30 20.0 05020GA-12L-AA- 00 12 4.5 13.8 0.12 1.44 4600 0.13 4.5 124.0 0.49 27.0 30 05020GA-12M-AA- 00 0.18 2.16 5600 0.16 5.6 184.0 0.73 32.0 Rotation: Clockwise as seen from the label side *1: Average Values in Free Air www.eminebea.com Copyright MinebeaMitsumi Inc. 95 Static Pressure min 200 0.3 1.0 0.3 1.0 (29) 0.5 18.8 (20) (23) 0.5 43.0 (53) General Blower Refrigerator Server Industrial DC FAN purposeX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Blowers & Centrifugal Fans category: Click to view products by MinebeaMitsumi manufacturer: Other Similar products are found below : MKEL-DRB R2D140-AB02-14 R2D160-AC02-13 R4D310-AS18-01 R4D400-AD22-06 R4E180-AS11-09 R4S175-AA16-12 AIF60112 AIF801724 RLF35-812N2P-103 DOP-EXI014RAE KFB1724VHT-AF00 KFC1048DS-S45D AIF641714 CME-COP01 R1G220-AB07-09 R2E180CH0312 R2S150-AD08-09 RD20S-4/210660 RH56M-6/204689 D2E146-CD51-09 TP04G-AS2 TP05G-BT2 TP-PCC BR200W250 D4E133-AA01-51 DFD0612H/SPECTRA DOP-EXI028RAE 55462.19890 K1G200-AA73-02 G2D160-AF02-01 G2E150-BA52-07 G2S150-AB56-42 D4E225-BC01-02 R2D225-AV02-14 D2E146-HT67-63 K1G220-AA67-02 G2E140-AG02-05 R3G190-AB23-02 55410.91750 55462.19891 G3G160-AC70-01 R1G120-AD17-11 R3G250-AM70-01 R2E225-RA02-47 RER225-63/18/2TDMP R4E310- AO12-14 D2E146-HT65-64 3612751 G2D140-AC30-18

HS Compliance

Tariff Desc

FANS AND/OR BLOWERS, DC OR AC, axial OR radial OR crossflow type, having ANY one OR more of the following:
(a) sleeve OR ball OR magnetic bearings;
(c) AC operating voltage NOT less than 115 V and NOT greater than 240 V;
(d) maximum speed exceeding 1 000 RPM;
(e) diameter NOT greater than 300 mm;
(f) height NOT greater than 300 mm;
(g) length NOT greater than 300 mm,
with OR without filters
TC 17129205
