09225SA-24M-EA-00

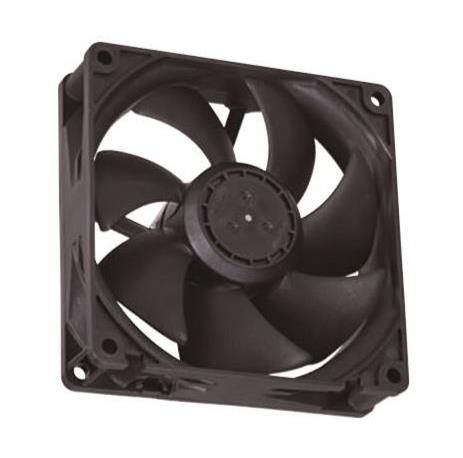

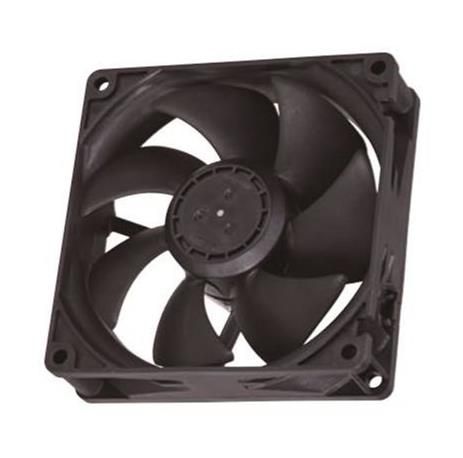

General Industrial Server Refrigerator Blower DC FAN purpose L 09225SA 92 X25 DCAxialFan Ball Bearing General Specications Motor Protection Auto Restart / Polarity Protection DC500V 10M Insulation Resistance 10M or over with a DC500V Megger AC700V 1s Dielectric Withstand Voltage 10 +70 (Operating) Allowable Ambient 40 +70 (Storage) Temperature Range non-condensing environment 10% L10 Life Expected Life Failure Rate: 10% L10 Life Outline 60 40,000 (Hours) Panel Out-cuts Inlet Side Outlet Side 0.2 4 4.3 4 4.3 4 4.3 AIR NAME PLATE 0.3 4 4 82.5 82.5 82.5 0.5 0.5 25.0 92.0 89.6 89.6 AOutline is A (Rib) type. Characteristic Curves Material 80 UL94V-0 UL94V-0 Q Class 70 60 UL3385 AWG26 + N Class 50 Casing Plastic (Black) UL94V-0 M Class 40 Impeller Plastic (Black) UL94V-0 30 Ps Bearing Ball Bearing L Class (Pa) Lead Wire UL3385 AWG26 + Red, Black 20 10 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 3 Q (m /min) Air Flow Specications Casing Form - - -A Rib TypeE Flange Type Rating Voltage Operating Voltage Current Input Power Speed Max.Air Flow Max. Static Pressure Noise Mass Model 1 1 -1 1 3 1 1 1 1 1 Product No. (V) (V) (A)* (W)* (min )* (m /min)* (CFM)* (Pa)* (In H O)* (dB)* (g) 2 09225SA-12L- A- D0 0.10 1.20 2400 1.13 39.9 29.0 0.12 25.0 09225SA-12M- A- D0 6.0 13.8 0.14 1.68 2750 1.28 45.2 36.2 0.14 29.0 12 09225SA-12N- A- D0 0.16 1.92 3100 1.45 51.2 45.0 0.18 32.0 09225SA-12Q- A- D0 7.0 13.8 0.25 3.00 3900 1.84 65.0 73.0 0.29 40.0 102 09225SA-24L- A- D0 0.05 1.20 2400 1.13 39.9 29.0 0.12 25.0 12.0 27.6 09225SA-24M- A- D0 0.07 1.68 2750 1.28 45.2 36.2 0.14 29.0 24 09225SA-24N- A- D0 12.0 26.4 0.08 1.92 3100 1.45 51.2 45.0 0.18 32.0 09225SA-24Q- A- D0 12.0 27.6 0.13 3.12 3900 1.84 65.0 73.0 0.29 40.0 Rotation: Clockwise as seen from the label side *1: Average Values in Free Air Airow Outlet: Label side 36 www.eminebea.com Copyright MinebeaMitsumi Inc. 104.0 100.0 0.5 92.0 min 300 0.3 82.5 Static Pressure 82.5 89.6 82.5 89.6X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for DC Fans category: Click to view products by MinebeaMitsumi manufacturer: Other Similar products are found below : 614R AUB0612L AFB0948HH-S687 G2E085-AA05-10 4318/12T AUB0912H-F00 3412N/2ME W2G110-AM39-01 8412GLV 8412NGL- 12 6448-384 4114N/17-251 4318/2R 4412F/2D 424JMU 4414/2HH 4112 N/12GL-175 9GA0912F402 9GA0812B20011 AFB0824SHBAV1 DV5214/2NP-230 9GA0912H4021 THC1548MGDJJ 9GA0812B2001 GFB1224SHG 8500NU 9WG1212E101-E 3241.124 DC0401012V2B-3T0 ASFP14391 ASFP64371 ASFP64391 ASFP84391 ASFP92391 9A0612G402 AD5012HB-C71 AD5012MB-C71 ASFP84372 ASFP64372 31100-000440-RS 026758A 514F MEC0381V1-000U-G99 4292 MF60152V1-1000U-G99 3610KL-04W-B50-D00 109P0412K3023 EE92251B1-000U-F99 8218J/2H4P PF60381B1-000U-S99
