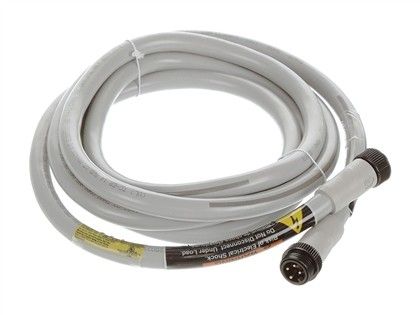

This document was generated on 02/21/2020 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 1300620124 Status: Active Overview: BradPower Cordsets and Receptacles Description: BradPower A-Size (7/8M22) Double-Ended Cordset, 4 Poles, Male (Straight) to Female (Straight), 14 AWG, PVC Cable, 2.0m (6.56 ) Length Documents: Drawing (PDF) RoHS Certificate of Compliance (PDF) Agency Certification Series image - Reference only UL E258922 General EU ELV Product Family Industrial Cordsets Not Relevant Series 130062 Connector End A BradPower A-Size (7/8M22) EU RoHS China RoHS Connector End B BradPower A-Size (7/8M22) Not Reviewed IP Rating IP67 REACH SVHC Material - Contact Copper Alloy Not Reviewed Overview BradPower Cordsets and Receptacles Halogen-Free Product Name BradPower A-Size Status Protocol EtherNet Not Reviewed Region Europe For more information, please visit Contact US Type Double Ended China ROHS Not Reviewed UPC 78678856614 ELV Not Relevant Physical RoHS Phthalates Not Reviewed Cable Diameter N/A Cable Length 2.0m (6.56 ) Color - Cable Jacket Gray Search Parts in this Series Coupling Style Threaded 130062 Series Gender Female-Male Keyway Single LED Indicator No Material - Cable Jacket PVC Material - Connector Body PVC Material - Coupling Nut Black Epoxy Coated Zinc Material - Plating Mating Gold Orientation Straight to Straight Poles 4 Temperature Range - Operating -20C to +105C Wire Size AWG 14 Wire/Cable Type STOOW Electrical Current - Maximum per Contact 10.0A Voltage - Maximum 600V Material Info Engineering Number 114030A46M020 Reference - Drawing Numbers Sales Drawing SD-130062-017, SD-130062-017-001 This document was generated on 02/21/2020 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for D-Sub Micro-D Connectors category: Click to view products by Molex manufacturer: Other Similar products are found below : 003626 025-1227-000 0685610016 0688014147 0688014227 07190-SP036 0745461602 0751341000 0795762102 0797580009 0834249014 0836129020 0836129024 0836199011 0887329200 0897613412 0923150410 0923150615 0923151609 0923171036 094- 0116-2007 094-6135-0000 094-6136-0000 094-6235-0000 094-6335-0000 094-6435-0000 094-6535-0000 094-6635-0000 094-6636-0000 094-6735-0000 094-6935-0000 094-6936-0000 095-0605-2053 095-0607-2055 095479-0007 095480-0011 096510-0306 09651226803 096513-0002 096516-0222 098-9027-0029 10090930-P150ALF 100RC21SCBR1 100RC31SCBRP2 100RC37PC6P1 100RN31P-C6PT2 10114-3000PE 10114-6000EC 10114-6000EL 10120-3000PE
