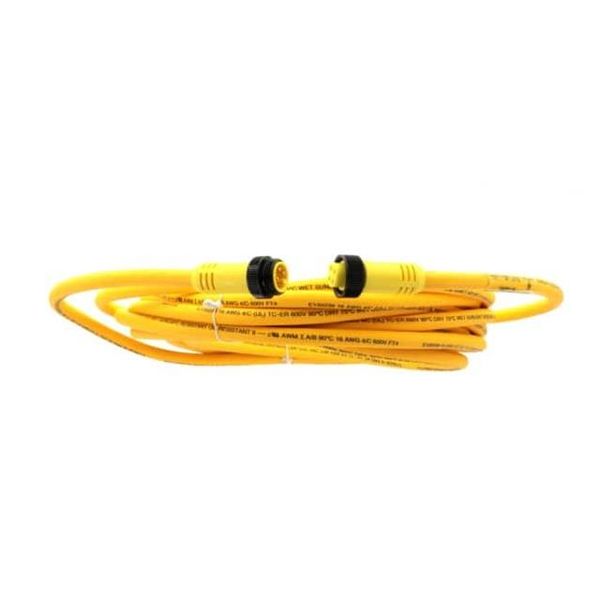

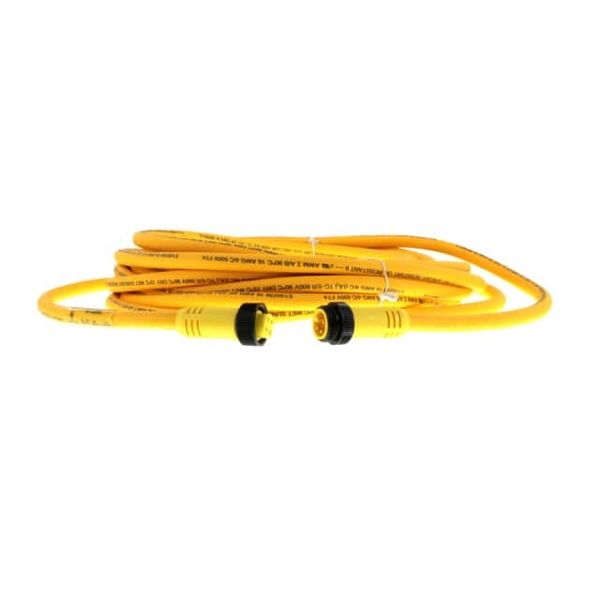

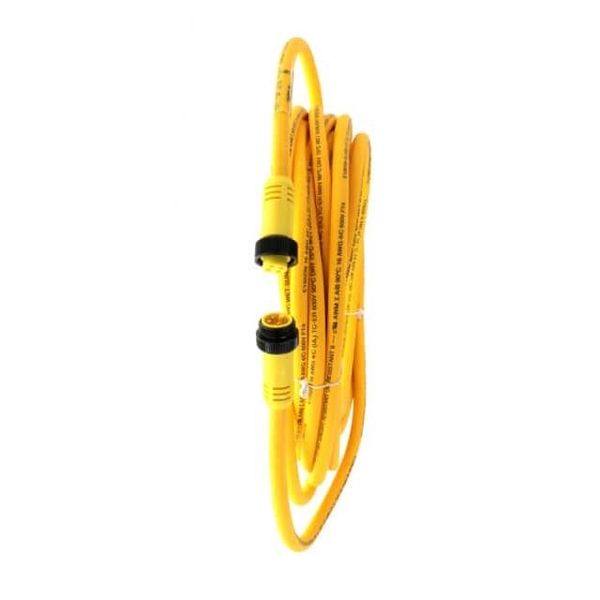

This document was generated on 07/07/2020 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 1300100873 EU ELV Status: Active Not Relevant Overview: Brad Mini-Change Connectors Description: Mini-Change A-Size Double-Ended Cordset, 4 Poles, Male (Straight) to Female EU RoHS China RoHS (Straight), 16 AWG, TPE Cable, 10.0m (32.81 ) Length Compliant with Exemption 6(c) REACH SVHC Documents: Not Contained Per Drawing (PDF) RoHS Certificate of Compliance (PDF) -ED/01/2018 (15 January 2018) Agency Certification Halogen-Free UL E152210 Status Not Low-Halogen General Product Family Industrial Cordsets For more information, please visit Contact US Series 130010 China ROHS 50 Image Connector End A Mini-Change ELV Not Relevant Connector End B Mini-Change RoHS Phthalates Not Contained IP Rating IP67 Material - Contact Copper Alloy Overview Brad Mini-Change Connectors Product Name Mini-Change Search Parts in this Series Protocol DeviceNet 130010 Series Region America Type Double Ended UPC 78678886001 Physical Cable Diameter 10.67mm (.420 ) Cable Length 10.0m (32.81 ) Color - Cable Jacket Yellow Coupling Style Threaded Gender Female-Male Keyway Single LED Indicator No Material - Cable Jacket TPE Material - Connector Body TPE Material - Coupling Nut Black Epoxy Coated Zinc Material - Plating Mating Gold Net Weight 1746.329/g Orientation Straight to Straight Poles 4 Temperature Range - Operating -20C to +105C Wire Size AWG 16 Wire/Cable Type TC-ER Electrical Current - Maximum per Contact 10.0A Voltage - Maximum 600V Material Info Engineering Number 114030K12M100 Reference - Drawing Numbers Sales Drawing 1300100863-000, SD-130010-016 This document was generated on 07/07/2020PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
