157284 Nexans

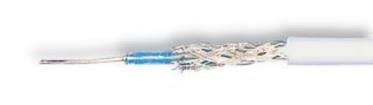

Communication Data Cables Filotex Main applications PRODUCT REFERENCES High frequency interconnections or PCB in telecommunication equiments FILOTEX ref. : ET 087 059 Electrical characteristics Voltage rating:250 Volts (RMS) Operating temperature: - 90C to + 200C Operating frequency: up to 3 GHz Impedance: 50 5 Capacitance: 85 pF/m Relative propagation velocity: 69.5 % Attenuation at 0.5 GHz 1.5 dB/m 1.0 GHz 2.3 dB/m 1.5 GHZ 2.9 dB/m 2.0 GHz 3.4 dB/m CONSTITUTION 3.0 GHZ 4.3 dB/m Conductor : 1 x 0.17 mm solid silver plated Physical characteristics copper covered steel Very good resistance to solvents Very good resistance to soldering operations Insulation : Nominal weight : 3 g/m Extruded PTFE = 0.52 0.05 mm Shield : 0.05 mm silver plated copper braid Jacket : FEP = 1.17 0.05 mm 140 - 146 rue E. Delacroix B.P. 1 91211 DRAVEIL CEDEX - FRANCE Tl : +33(0)169 83 78 00 - Fax :+33(0)169 42 05 70 Issue 2 - February 1999 - 1 - Passing on or copying of the document, use or communicate of its content is not permitted without prior written authorization.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for nexans manufacturer: Other Similar products are found below : M16878/4-BGE-9 M22759/34-16-0 3X1YY50 M81044/12-16-2 M27500-20ML1T08 2112/10-1SJ-24 2112/10-1SJ-22 30-286-22-1 M22759/87-16-96 M22759/32-20-2 M81044/12-16-9 SUPERPOL 10 M81044/9-8-9 2112/10-14(GAW805AB14) M22759/87-12-9 M22759/34-22-2 M81044/12-22-9 M22759/92-20-2 EN2714-013A004F M22759/44-16-9 M22759/34-16-9 M22759/187-16-96 M22759/43- 24-6 M22759/41-24-9 M27500-24SB1T23 M22759/81-22-5 M81044/12-16-5 30-284-14-2 M81044/12-20-9 M81044/9-10-9 M27500- 24SN3N23 M22759/43-24-8 M22759/34-20-0 M22759/33-26-7 M22759/32-24-9 M22759/43-10-9 HM2N18-9 2698096-5999 M22759/91- 12-9 M22759/41-20-9 M22759/43-24-5 M22759/43-24-7 M22759/11-20-9 13-DRX23P03P 30-285-22-2 M27500-22TG5T14 M22759/33- 26-9 13-DRS26P04P-V1 M22759/33-26-3 M22759/34-14-9
