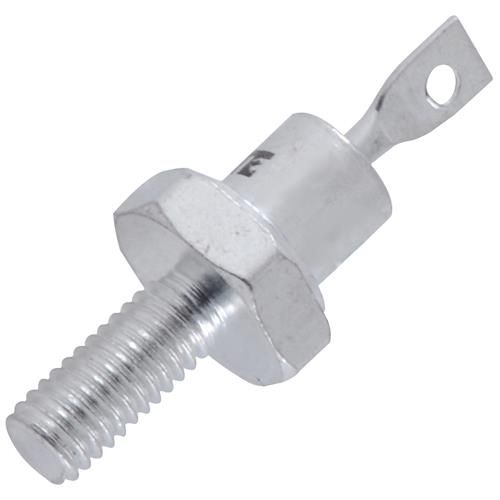

NTE5892 thru NTE5899 NTE5900 thru NTE5911 Silicon Power Rectifier Diode, 16 Amp, DO4 Description and Features: The NTE5892 through NTE5911 are low power general purpose rectifier diodes in a DO4 type pack- age designed for battery chargers, converters, power supplies, and machine tool controls. Features: High Surge Current Capability High Voltage Available Designed for a Wide Range of Applications Available in Anode toCase or Cathode toCase Style Ratings and Characteristics: Average Forward Current (T = +140C Max), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16A C F(AV) Maximum Forward Surge Current, I FSM 50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295A 60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310A 2 Fusing Current, I t 2 50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435A s 2 60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395A s 2 2 Fusing Current, I t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6150A s Maximum Reverse Recovery Voltage Range, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 to 1000V RRM Voltage Ratings: (T = +175C) J V Max V Max V Max. V I Max NTE Type Number RRM RSM R R(SR) RM Repetitive Peak NonRepetitive Peak Direct Reverse Minimum Avalanche Reverse Current Cathode Anode Reverse Volt. Reverse Voltage Voltage Voltage Rated V RRM to Case to Case (V) (V) (V) (V) (mA) 5892 5893 50 75 50 12 5894 5895 100 150 100 12 5896 5897 200 275 200 12 5898 5899 300 385 300 12 5900 5901 400 500 400 500 12 5902 5903 500 613 50 626 12 5904 5905 600 725 600 750 12 5908 5909 800 950 800 950 12 5910 5911 1000 1200 1000 1150 12Electrical Specifications: Parameter Symbol Test Conditions Rating Unit Maximum Average Forward Current I 180 sinusoidal condition, T = +140C Max 16 A F (AV) C Maximum RMS Forward Current I 25 A F(RMS) Maximum Peak OneCycle I t = 10ms Sinusoidal Half Wave, 295 A FSM NonRepetitive Surge Current No voltage reapplied t = 8.3ms 310 A t = 10ms 350 A 100% rated voltage reapplied, T = +175C J t = 8.3ms 370 A 2 2 2 Maximum I t for Individual Device I t t = 10ms 100% rated voltage reapplied, 612 A s Fusing Initial T = +175C J 2 t = 8.3ms 560 A s 2 2 2 t = 0.1 to 10ms, No voltage reapplied, Note 1 6125 Maximum I t I t A t Maximum Peak Forward Voltage V I = 50A, T = +25C 1.23 V FM FM J Maximum Value of Threshold V T = +175C 0.78 V M (TO) J Voltage Maximum Value of Forward Slope r T = +175C 7.55 m t J Resistance 2 2 Note 1. I t for time t = I t t x x Thermal Mechanical Specifications: Parameter Symbol Test Conditions Rating Unit Maximum Operation Junction Temperature T 65 to + 175 C J Maximum Storage Temperature T 65 to + 200 C stg Maximum Internal Thermal Resistance R DC operation 1.6 K/W thJC Junction toCase Thermal Resistance, CasetoSink R Mounting surface flat, smooth and 0.5 K/W thCS greased Mounting Torque T Nonlubricated threads 1.2 1.5 mN (10.5 13.5) (inlb) Approximate Weight wt 11 (0.25) g (oz) .250 (6.35) Max .437 (11.1) .175 (4.45) Max Max .060 (1.52) Dia Min 1032 NF2A .405 (10.3) .453 .424 (10.8) Max (11.5) Dia Max Max 1.250 (31.75) Max
