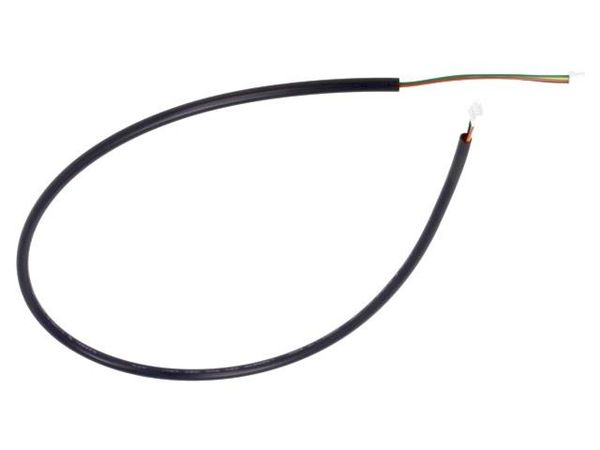

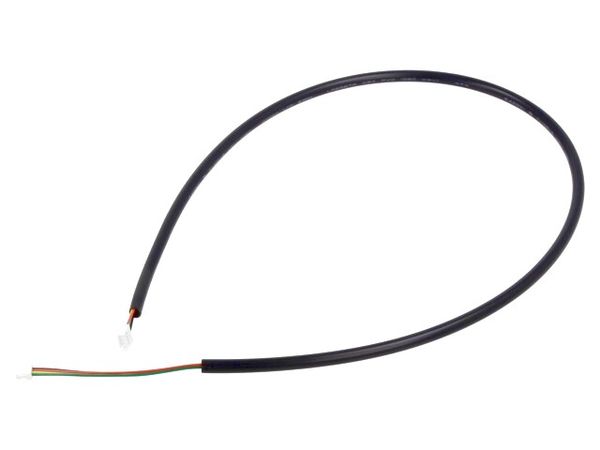

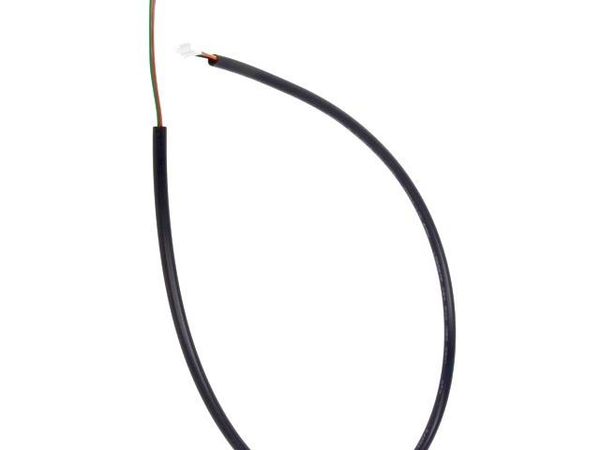

New Product Sensor Evaluation Board 2JCIE-EV Sensor evaluation board that supports open platform Easily implement development of a new IoT system that senses a wide variety of environmental information RoHS compliant Refer to Safety Precautions on Page 9. Features Easily develop sensing IoT applications and PoC Evaluation board with six types of sensing functions. The product can be connected to a Raspberry Pi *1, Arduino *2, or Feather *3 baseboard, and enables easy sensor evaluation. The product can be connected to OMRON sensors (MEMS thermal sensor, MEMS flow sensor, Light convergent reflective sensor, air quality sensor, etc.) and Qwiic sensors. Can be connected to OMRON OMRON sensor evaluation board sensors *4 Six types of Includes a connector that supports sensing functions Qwiic sensors. Temperature, humidity, light, Can be connected to a variety of sensors barometric pressure, noise, acceleration + Platform Supports three platforms Raspberry Pi *1, Arduino *2, Feather *3 (Raspberry Pi) + Sample source code for acquiring sensor data is available on GitHub *1. Raspberry Pi is a registered trademark of the Raspberry Pi Foundation. *2. Arduino is a registered trademark of Arduino LLC and Arduino SRL. *3. Feather is a registered trademark of Adafruit Industries LLC. *4. For details, see External Expansion Sensor on page 3. 12JCIE-EV Ordering Information Unit Supported platform *4 Type Appearance Model Table of Models RP type 2JCIE-EV01-RP1 Raspberry Pi *1 3 A/1 B+/2 B/3 B/3 B+/Zero/Zero W *5 AR type 2JCIE-EV01-AR1 Arduino *2 MKR Vidor 4000/MKR WiFi 1010/MKR ZERO *5 FT type 2JCIE-EV01-FT1 Feather *3 HUZZAH32 *5 Supported Accessories (Sold Separately) Type Model 2JCIE-HARNESS-01 2JCIE-HARNESS-02 2JCIE-HARNESS-03 Cable harness 2JCIE-HARNESS-04 2JCIE-HARNESS-05 *1. Raspberry Pi is a registered trademark of the Raspberry Pi Foundation. *2. Arduino is a registered trademark of Arduino LLC and Arduino SRL. *3. Feather is a registered trademark of Adafruit Industries LLC. *4. Boards for supported platforms are not included. *5. Do not use a model other than those listed in each table of platform supporting models. Note: The temperature sensor on the sensor evaluation board may output a high value due to heat generated by the platform. If you need to eliminate this effect, either separate the sensor from the unit by connecting a cable or otherwise, or use an external temperate/humidity sensor that supports SparkFun Qwiic. Ratings and Specifications Specifications Model 2JCIE-EV01-RP1 2JCIE-EV01-AR1 2JCIE-EV01-FT1 Item Protocol Pi HAT Shield for MKR form factor FeatherWing Dimensions (mm) Approx. 65 x 30 Approx. 61.5 x 25 Approx. 50.8 x 23.9 Sparkfun Qwiic (3.3 V I2C) CN4 CN4 CN4 CN5 CN5 CN5 2 5V I C for expansion TH1 TH1 TH1 5V UART for expansion CN6 CN6 CN6 5V DIO for expansion --- CN7, CN8 TH2 Sensing data that can be acquired Temperature, humidity, light, barometric pressure, noise, 3-axis acceleration Absolute maximum rating: Power voltage (5 V) -0.2 to 5.5 V Absolute maximum rating: Power voltage (3.3 V) -0.2 to 3.6 V Absolute maximum rating: Input/output terminal voltage (5 V) -0.2 to 5.2 V Absolute maximum rating: Input/output terminal voltage (3.3 V) -0.2 to 3.5 V Absolute maximum rating: Power current 700 mA Ambient storage temperature -10 to 60C (no condensation or icing) Ambient storage humidity 30 to 85% (no condensation or icing) Recommended operating range: Power voltage (5 V) 4.75 to 5.25 V Recommended operating range: Power voltage (3.3 V) 3.14 to 3.47 V 2
