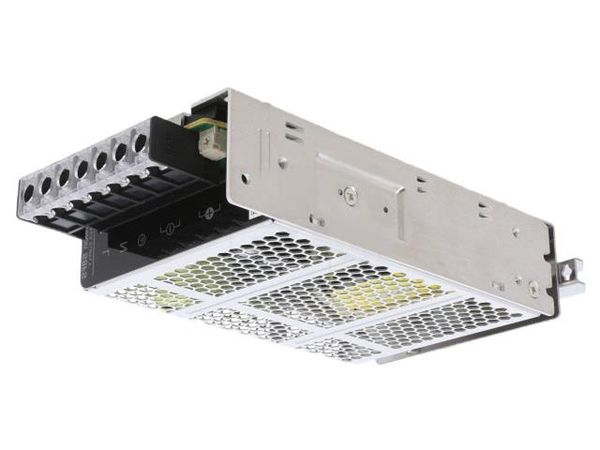

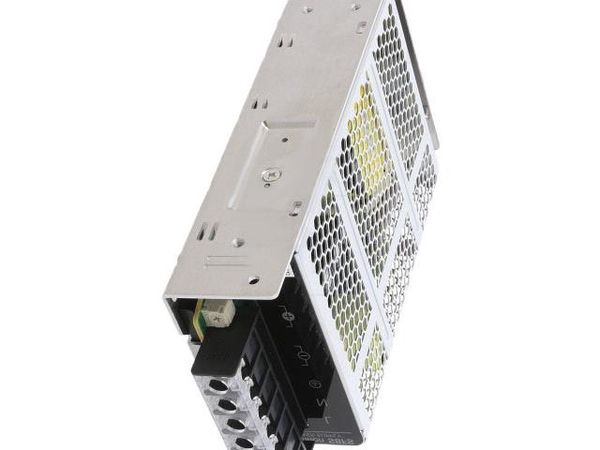

Switch Mode Power Supply S8FS-G (15/30/50/100/150/300/600-W Models) Superior Basic Performance That Ensures Reliability. Wide Range of Standards Certification and Greater Usability. Superior basic performance that ensures reliability Ambient temperatures up to 70C, greater resistance to rusting with aluminum/stainless steel case, and applications at altitudes up to 3,000 m. Certification for Global Standards North America: UL 508 (Listing)*, CSA C22.2 Europe: Overvoltage Category III (EN 50178) EMI: Class B (EN 61204-3) No need for control circuit transformers for which the Machinery Directive is specified. (EN/IEC 61558-2-16) * Refer to pages 4 to 10 for certified models. Refer to Safety Precautions for All Power Supplies and Safety Precautions on page 29. Greater Usability The Terminal Block Cover prevents screws from dropping out and the Front Cover prevents ingress of foreign matter. Lineup Power rating Output voltage 15 W 30 W 50 W 100 W 150 W 300 W 600 W 5 V Yes Yes Yes Yes Yes --- --- 12 V Yes Yes Yes Yes Yes Yes Yes 15 V Yes Yes Yes Yes Yes Yes Yes 24 V Yes Yes Yes Yes Yes Yes Yes 48 V --- --- --- --- Yes Yes Yes Model Number Structure Model Number Legend Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below. S8FS- G - 12 3 4 5 6 7 1. Power Ratings 2. Output voltage 3. Configuration 5. Option (2) *5 7. Option (4) *7 015: 15 W 05: 5 V C: With cover/Direct mounting None: None None: None 030: 30 W 12: 12 V CD: With cover/DIN Rail mounting W: Parallel operation H: Extended hold time 050: 50 W *1 15: 15 V 4. Option (1) 100: 100 W *2 24: 24 V 6. Option (3) *6 None: Screw terminal block 150: 150 W *3 48: 48 V None: None E: Connectors *4 300: 300 W R: Remote control 600: 600 W *1. The output electric power is 40 W for products with an output voltage of 5 V. *4. Applicable only for 150 W or less and 24 V. *2. The output electric power is 80 W for products with an output voltage of 5 V. *5. Applicable only for 600 W and 24 V. *3. The output electric power is 105 W for products with an output voltage of 5 V. *6. Applicable only for 100 W or more and 24 V. *7. Applicable only for 300 W or more and 24 V. 1S8FS-G Ordering Information List of Models Note: For details on normal stock models, contact your nearest OMRON representative. With Cover/DIN Rail Mounting Power ratings Input voltage Output voltage (VDC) Output current Built-in fan Model 5 V 3 A S8FS-G01505CD 12 V 1.3 A S8FS-G01512CD 15 W 15 V 1 A S8FS-G01515CD 24 V 0.65 A S8FS-G01524CD 5 V 6 A S8FS-G03005CD 12 V 3 A S8FS-G03012CD 30 W 15 V 2.4 A S8FS-G03015CD 24 V 1.5 A S8FS-G03024CD 5 V 8 A *1 S8FS-G05005CD 100 to 240 VAC 12 V 4.3 A S8FS-G05012CD (Permissible range 50 W 15 V 3.5 A None S8FS-G05015CD 85 to 264 VAC, 80 to 370 VDC) 24 V 2.2 A S8FS-G05024CD *4 5 V 16 A *2 S8FS-G10005CD 12 V 8.5 A S8FS-G10012CD 100 W 15 V 7 A S8FS-G10015CD 24 V 4.5 A S8FS-G10024CD 5 V 21 A *3 S8FS-G15005CD 12 V 13 A S8FS-G15012CD 150 W 15 V 10 A S8FS-G15015CD 24 V 6.5 A S8FS-G15024CD 48 V 3.3 A S8FS-G15048CD 12 V 25 A S8FS-G30012CD 100 to 240 VAC 15 V 20 A S8FS-G30015CD (Permissible range 300 W 85 to 264 VAC, 24 V 14 A S8FS-G30024CD 120 to 370 VDC) 48 V 7 A S8FS-G30048CD Yes 12 V 50 A S8FS-G60012CD 100 to 240 VAC 15 V 40 A S8FS-G60015CD (Permissible range 600 W 85 to 264 VAC, 24 V 27 A S8FS-G60024CD 120 to 350 VDC) 48 V 13 A S8FS-G60048CD Note: Ask your OMRON representative for pricing information on optional models. *1. The output electric power is 40 W. *2. The output electric power is 80 W. *3. The output electric power is 105 W. *4. Applicable to products produced from May 2018. With Cover/DIN Rail Mounting (Extended hold time type) Power ratings Input voltage Output voltage (VDC) Output current Built-in fan Model 100 to 240 VAC (Permissible range 300 W 14 A S8FS-G30024CD-H 85 to 264 VAC, 120 to 370 VDC) 24 V Yes 100 to 240 VAC (Permissible range 600 W 27 A S8FS-G60024CD-H 85 to 264 VAC, 120 to 350 VDC) 2
