SCC100F-9-C

SCC100F-9-C electronic component of Pancon

Datasheet
MAS-CON® .100 IDC Wire to Board Connector System - IDC Female Sockets - Accessories - 9 Circuits

Manufacturer: Pancon
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

100: USD 0.3625 ea
Line Total: USD 36.25

2716 - Global Stock
Ships to you between
Fri. 29 Sep to Thu. 05 Oct
MOQ: 100  Multiples: 100
Pack Size: 100
Availability Price Quantity
2716 - Global Stock


Ships to you between Fri. 29 Sep to Thu. 05 Oct

MOQ : 100
Multiples : 100

Stock Image

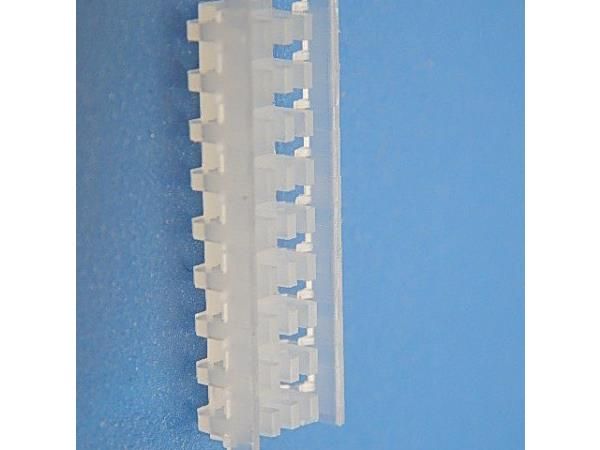

SCC100F-9-C
Pancon

100 : USD 0.3596
200 : USD 0.3557
300 : USD 0.3386
400 : USD 0.3347
3000 : USD 0.1916
5000 : USD 0.1848
10000 : USD 0.1523
25000 : USD 0.1369


Manufacturer
Pancon
Product Category
Standard Card Edge Connectors
Connector Series
Mas - Con
Connector Variant
Close End, Inline Splice
Type Of Connector Accessories
Protection Cover
Number Of Pins
9
Contacts Pitch
2.54Mm
