UTPCH28MBUY Panduit

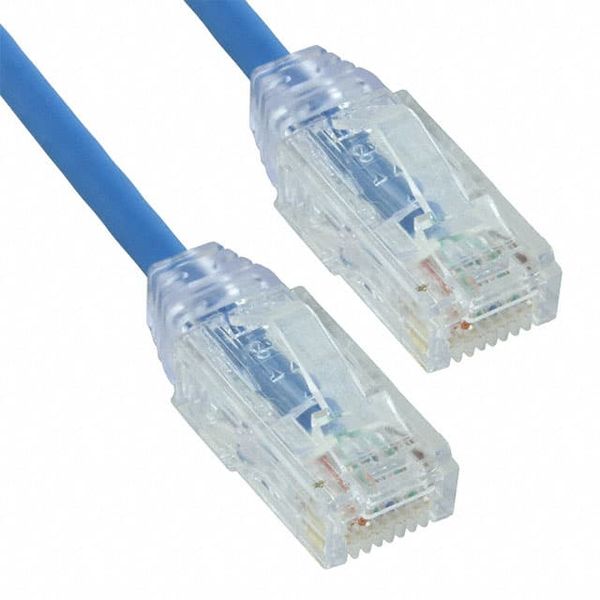

2 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. TWIST TIE NOTES: **1. SEE CURRENT CATALOG FOR VARIOUS APPLICATIONS AND TO INDICATE COLOR AND/OR PACKAGE QUANTITY. 2. SEE CATALOG FOR A COMPLETE LIST OF PARTS APPLICABLE FOR USE WITH THIS PART. 3. TERMINATED WITH (8 POSITION) MODULAR PLUGS AT BOTH ENDS PER T568A. 4. CONSTRUCTED WITH 24AWG STRANDED CAT5e UTP CM PATCH CABLE 5. MATERIALS: PLUG: POLYCARBONATE 6. NOMINAL CABLE DIAMETER IS 0.215 IN (5.46MM). B B CABLE COLORS ** = COLOR OFF WHITE -- T568A WIRING SCHEME BLACK BL PLUG POSITION CABLE WIRE 1 WHITE GREEN BLUE BU IDENTIFICATION 2 GREEN LABEL 3 WHITE ORANGE RED RD 4 BLUE YELLOW YL 5 WHITE BLUE 6 TANGLE-FREE ORANGE GREEN GR 7 LATCH WHITE BROWN 8 BROWN ORANGE OR MODULAR PLUG VIOLET VL GRAY GY PLUG POSITION ONE SEE SHEET 2 FOR PATCH CORD LENGTHS AND PART NUMBERS PART NUMBER UTPCHXX**Y TITLE TX5e UTP COPPER PATCH CORDS (CM) A A CUSTOMER DRAWING ITEM REVISION NAME M02479KU/00 DATASET FILE NAME M02479KU DC282/00F MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN mm .X .XXX .010 .3 .XX ANGLES .03 .8 DRAWING NUMBER: THIRD ANGLE 5 4-3-14 BJN JSP EJH REVISED & REDRAWN PREVIOUS REVS REMVD FOR CLARITY 02479-282 PROJECTION 02479-282 DRAWN BY DATE CHK SCALE SIZE REV DATE BY CHK APR DESCRIPTION ECN NER 3-16-06 WJC NONE SHT 1 OF 2 A 2 1 D10100DA/142 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. TX5e UTP PATCH CORDS CONDUCTOR INSULATOR PANDUIT PANDUIT MIN. CABLE MIN. CABLE PART NUMBER PART NUMBER LENGTH LENGTH CONDUCTOR WIRE UTPCH1**Y 1 FT. UTPCH0.5M**Y 0.5 m UTPCH2**Y 2 FT. UTPCH1M**Y 1 m JACKET UTPCH3**Y 3 FT. UTPCH1.5M**Y 1.5 m UTPCH4**Y 4 FT. UTPCH2M**Y 2 m UTPCH5**Y 5 FT. UTPCH2.5M**Y 2.5 m B B 6 FT. UTPCH6**Y UTPCH3M**Y 3 m UTPCH7**Y 7 FT. UTPCH4M**Y 4 m UTPCH8**Y 8 FT. UTPCH5M**Y 5 m UTPCH9**Y 9 FT. UTPCH6M**Y 6 m UTPCH10**Y 10 FT. UTPCH7M**Y 7 m UTPCH11**Y 11 FT. UTPCH8M**Y 8 m UTPCH12**Y 12 FT. UTPCH9M**Y 9 m UTPCH13**Y 13 FT. UTPCH10M**Y 10 m UTPCH14**Y 14 FT. UTPCH15M**Y 15 m UTPCH15**Y 15 FT. UTPCH20M**Y 20 m UTPCH16**Y 16 FT. UTPCH25M**Y 25 m UTPCH17**Y 17 FT. UTPCH30M**Y 30 m 4X TWISTED PAIRS UTPCH18**Y 18 FT. UTPCH35M**Y 35 m CROSS-SECTIONAL VIEW OF CABLE UTPCH19**Y 19 FT. UTPCH40M**Y 40 m PART NUMBER 20 FT. UTPCH20**Y UTPCHXX**Y TITLE UTPCH25**Y 25 FT. UTPCH30**Y TX5e UTP COPPER PATCH CORDS (CM) 30 FT. A A UTPCH35**Y 35 FT. CUSTOMER DRAWING ITEM REVISION NAME UTPCH40**Y 40 FT. M02479KU/00 DATASET FILE NAME M02479KU DC282/00F MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN mm .X .XXX .010 .3 .XX ANGLES .03 .8 DRAWING NUMBER: THIRD ANGLE 5 4-3-14 BJN JSP EJH SEE SHEET 1 FOR REVISION HISTORY 02479-282 PROJECTION 02479-282 DRAWN BY DATE CHK SCALE SIZE REV DATE BY CHK APR DESCRIPTION ECN NER 3-16-06 WJC NONE SHT 2 OF 2 A 2 1 D10100DA/14
