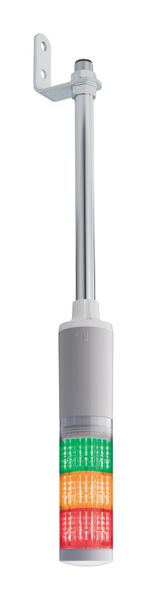

LA6-3DLJWN-RYG

Specifications Dimensions (Unit mm) Signal Tower Model LA6- D - Direct Mount / Terminal Buss Type Steel Pole & L Bracket Rated Voltage DC24 V Cable Type Operating Voltage Range 10% of Rated Voltage LA6-5 D N-RYGBC 5W LA6-5 D B-RYGBC 6.5W Standard LA6-3D N-RYG 3.5W LA6-3D B-RYG 4.5W Rated Power Consumption < Specification : Height > < Specification : Height > LA6-5 D N-YYYYY 7W LA6-5 D B-YYYYY 8W Maximum 5 - B : 330 5 - B : 320 LA6-3D N-YYY 4.5W LA6-3D B-YY 5.5W 3 - B : 264 3 - B : 254 Environmental Condition Power Consumption test with alarm set at Alarm Sound No.1 at maximum volume 5 - N : 290 5 - N : 280 Signal Wire Current Maximum 70mA 3 - N : 224 3 - N : 214 Standby Current Maximum 15mA Operating Ambient Temperature -25 to +60 Operating Humidity Range Less than 90% RH (No Dew or Condensation) Storage Temperature Range -25 to +60 Storage Humidity Range Less than 90% RH (No Dew or Condensation) Mounting Location Indoor Only Mounting Direction Upright/Inverted Direction Protection Rating IP65 (With alarm: IP54) IEC 60529 See Environmental Condition Install in an upright position Sweep Durability: Total amplitude: 0.3 mmp-p (10 - 57.5 Hz), LA6- LJ Acceleration: 20.0 m/s2 (57.5 - 150 Hz) Fixed pitch durability: Acceleration 20.0 m/s2 Vibration Resistance Sweep Durability: Total amplitude 0.3 mmp-p (10 - 57.5 Hz), LA6- TN Acceleration: 20.0 m/s2 (57.5 - 150 Hz) Fixed Vibration Frequency Durability: Acceleration 10.0 m/s2 JIS C 60068-2-6:2010 Environmental Condition Tested while installed in an upright position Insulation Resistance More than 1Mohm at DC500V between the power input lead and chassis. Withstand Voltage 500VAC for 1min between terminals and chassis without breaking insulation Display Color red (1000 mcd) yellow (1700 mcd) green (2600 mcd) blue (1000 mcd) white (1250 mcd) Front Direction Top View Purple (800 mcd) pink (850 mcd) cyan (2150 mcd) lemon (2150 mcd) (Alarm Direction) More, (Unit: mm) (Typical Luminous Intensity) * Due to the characteristics of the LED elements, a variation in diff erence of the color tone and Mounting brightness of every product may occur. Hole Flash Rate 60 2 fpm Outer Dimension No. 1 2400Hz Continuous beep sound No. 2 2400Hz Rapid intermittent beep No. 3 2400Hz Long intermittent beep No. 4 2400Hz Fast intermittent beep No. 5 3600Hz Continuous beep No. 6 3600Hz Rapid intermittent beep Alarm Sound Bottom View Mounting (Typical Frequency) No. 7 3600Hz Long intermittent beep No. 8 3600Hz Fast intermittent beep Hole No. 9 2400Hz & 3375Hz Multiplexed Beep No. 10 2400Hz & 3600Hz Multiplexed Beep Wiring Hole No. 11 4000Hz & 4800Hz Multiplexed Beep Mounting ( TN Type) Hole Sound Level Maximum: 85dB 2 Use 23 for Cable Gland Nameplate Environmental Condition Alarm Sound No.1 measured from the front direction of the alarm opening at 1m Location The set up button is the fourth step (Factory Default: Maximum). Volume Control Do Maximum -> -5dB drop from maximum (standard) -> -10dB drop from maximum (standard) -> OFF (-> Returns to Maximum ) Model Code Data Transfer Main Unit USB micro-B Terminal Female USB2.0/1.1 Interface, Transmission Rate: USB2.0/1.1/1.0 Interface Transfer Cable Charge /Data Transfer Micro USB (not included) Connector: USB Male- USB (MicroB) male Data Programming Exclusive Application Software Signal Tower Application Software (Downloadable from our Homepage) LA6-3DTNB 480g LA6-3DLJ B 980g LA6-3DTN N 420g LA6-3DLJ N 930g Mass (Tolerance 10%) LA6-5 DTNB 590g LA6-5 DLJ B 1090g LA6-5 DTNN 530g LA6-5 DLJ N 1040g EMC Directive (EN 61000-6-4, EN 61000-6-2) RoHS Directive (EN 50581) Compliance Standards UL508, CSA-C22.2 No.14 KC ( KN 61000-6-4, KN 61000-6-2) FCC Part 15 SubpartB Class A CE Marking More Remarks UL Recognized Component (File No.E215660) Wiring Dont Apply Voltage Dont Apply Voltage External Contact External Contact Classification Classification Flashing/Pulse Enable Flashing/Pulse Enable External PLC Output Unit 2 Contact No Flashing/Alarm Flashing/Alarm No Flashing/Alarm Flashing/Alarm Flashing/Pulse Enable Flashing/Pulse Enable Common Line Common Line LED Tier 1/ Input1 LED Tier 1/ Input1 LED Tier 2/ Input2 LED Tier 2/ Input2 LED Tier 3/ Input3 LED Tier 3/ Input3 Lighting/Alarm LED Tier 4/ Input4 LED Tier 4/ Input4 Lighting/Alarm External LED Tier 5/ Input5 LED Tier 5/ Input5 PLC Output Unit 1 Contact Alarm 1/ Input6 Alarm 1/ Input6 Alarm 2/ Input7 Alarm 2/ Input7 Circuit Diagram Mode Change Mode Change Power Supply Wire Power Supply Wire Power Supply Wire Power Supply Wire Flashing/Alarm Type Flashing/Alarm Type DC 24V (Class2) (Non-polarized) DC 24V (Class 2) Full Color Display Indicate abnormal conditions with a variety of color patterns. Can freely set up multiple colors. For example, a serious condition can be indicated with theAll-point Lightin where the entire signal tower is the same color, thus conveying important information. UseOperating Mode to enhance a visual status condition. The downloadable program can be used to make patterns change at set intervals so the signal tower can be used to count time or set a pace. See More, Do More Simple and easy to use complimentary programming software The downloadable complimentary programming software can be used to easily control Display a variet y of colors in various ways to improve your processes. which colors are displayed and how they are to behave. PATLITE innovation continues with improved functionality to drive productivity, improve efficiencies, and reduce waste. One of ou r basic themes is to help you make continuous improvements in your process. In order to make your lives more comfortable, our theme of Visual Information has been a persistent one by making things More active, more flexible and beautifu easier to do. Here, we introduce the LA6 multi-informational signal tower. It can be easily manipulated to display various colors and combination of colors in various TMRevolite was made to redefineligh and to make the ways in order to communicate visual information in a manner that is intuitive and easy to understand. The applications are endless. As a pioneer manufacturer of environment more active, more beautiful, and more flexible. information display equipment, we will strive to provide society the best products in order to meet your expectations for Safety, Security, and Comfort. Separate Display Tact time Display Gradition Display 1 2
