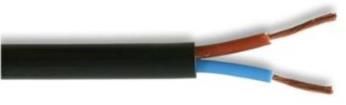

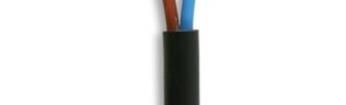

PVC Insulated Mains Cable Series: 3182Y, 3183Y, 3184Y & 3185Y Series - 3182Y Description 2 Core Plain Annealed Copper Wire, PVC Insulation, PVC Sheath Application Power supply wire, suitable for indoor small electrical instrument, or general in portable tool Construction: Insulation Sheath material : PVC Insulation Colour : Blue, Brown Voltage Test : Core to Core : 1,500V AC / 1min Voltage Rating : 300/500V Operating Temperature : -15C to +70C Diagram: Specification Table: Inner Outer Min. Bend Nominal DC Current Type CSA Stranding Rating Diameter Diameter Radius resistance 2 3182Y-0.5 0.5mm 16/0.2mm 2.2mm 6.2mm 62mm 39/km 3A 2 3182Y-0.75 0.75mm 24/0.2mm 2.3mm 6.35mm 64mm 26/km 6A 2 3182Y-1 1mm 32/0.2mm 2.5mm 6.4mm 64mm 19.5/km 10A 2 3182Y-1.5 1.5mm 30/0.25mm 2.9mm 7.4mm 74mm 13.3/km 15A 2 3182Y-2.5 2.5mm 50/0.25mm 3.7mm 9.4mm 94mm 7.98/km 30A www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 23/09/15 V1.2PVC Insulated Mains Cable Series: 3182Y, 3183Y, 3184Y & 3185Y Series - 3183Y Description 3 Core Plain Annealed Copper Wire, PVC Insulation, PVC Sheath Application Power supply wire, suitable for indoor small electrical instrument, or general in portable tool Construction: Insulation Sheath material : PVC Insulation Colour : Blue, Brown, Yellow/Green Stripe Voltage Test : Core to Core : 1,500V AC / 1min Voltage Rating : 300/500V Operating Temperature : -15C to +70C Diagram: Specification Table: Inner Outer Min. Bend Nominal DC Current Type CSA Stranding Rating Diameter Diameter Radius resistance 2 3183Y-0.75 0.75mm 24/0.2mm 2.3mm 6.6mm 66mm 26/km 6A 2 3183Y-1 1mm 32/0.2mm 2.5mm 7.2mm 72mm 19.5/km 10A 2 3183Y-1.25 1.25mm 40/0.2mm 2.8mm 7.8mm 78mm 15.6/km 13A 2 3182Y-1.5 1.5mm 30/0.25mm 2.9mm 8.9mm 89mm 13.3/km 15A 2 3183Y-2.5 2.5mm 50/0.25mm 3.7mm 10mm 100mm 7.98/km 20A 4.95/km 2 3183Y-4 4mm 56/0.3mm 4.4mm 12mm 120mm - 20C www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 23/09/15 V1.2
