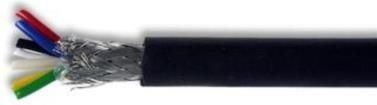

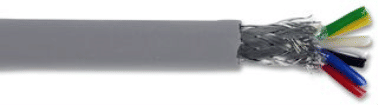

Sub-Miniature Cable Specifications: Description : Sub-miniature cable, 7-1-2C, to Def Stan 61-12 (Part 4) 2 Conductors : 0.055mm (7/0.1mm) tinned annealed copper wires to BS 6360 (as far as applicable), class 5 : Number of wires = 7 : Maximum resistance at 20C (finished cable) : 384/km Insulation : Type 2 PVC compound to BS 7655-3.2 (see table 1) : Minimum point radial thickness : 0.15mm : Minimum diameter : 0.65mm : Maximum diameter : 0.75mm Lay Up : 2 cores, red and blue : Polyester tape Screen : Maximum diameter of Tinned Annealed wires : 0.104mm : Minimum Coverage : 91% Sheath : Type 6 PVC compound to BS 7655-4-2 (see table 2) : Minimum point radial thickness : 0.25mm : Minimum diameter : 2.5mm : Maximum diameter : 3mm Service Data : For local interconnection between instruments and electronic equipment : Not suitable for direct connection to mains power supplies Conformity declaration to EU Directive 2002/95/EC (RoSH) This Cable Does not contain : Lead, cadmium, mercury, hexavalent chromium, PBBs and PBDEs Please note that this declaration does not exclude irrelevant trace levels (extreme low levels) of the listed substances that may be unintentionally present. Description : Sub-miniature Cable, 7-1-3C, to Def Stan 61-12 (Part 4) 2 Conductors : 0.055mm (7/0.1mm) tinned annealed copper bunch, meeting the requirements of BS 6360, where applicable : Maximum resistance (completed cable) at 20C : 384/km Insulation : Type 2 PVC compound to BS 7655 : Minimum radial thickness : 0.15mm : Minimum core diameter : 0.65mm : Maximum core diameter : 0.75mm Lay Up : 3 cores, red, blue and green : Polyester tape www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 13/08/14 V1.0Sub-Miniature Cable Screen : 0.1 mm tinned annealed copper braid : Minimum filling factor : 0.7 Sheath : Type 6 PVC compound to BS 7655 : Minimum radial thickness : 0.3mm : Minimum overall diameter : 2.7mm : Maximum overall diameter : 3.2mm Service Data : For local interconnection between instruments and electronic equipment : Not suitable for direct connection to mains power supplies : Maximum working voltage : 250V ACrms : Nominal capacitance : core to core : 95pF/m, core to screen : 170pF/m : Maximum (conductor) operating temperature : 70C : Approximate mass/length : 15.7kg/km Conformity Declaration to EU Directive 2002/95/EC (RoHS) This cable does not contain : lead, mercury, cadmium, hexavalent chromium, PBB or PBDE Please note that this declaration does not exclude irrelevant trace levels (extremely low levels) of the listed substances that may be unintentionally present Description : Sub-miniature Cable, 7-1-4C, to Def Stan 61-12 (Part 4) 2 Conductors : 0.055mm (7/0.1mm) tinned annealed copper bunch, meeting the requirements of BS 6360, where applicable : Maximum resistance (completed cable) at 20C : 384/km Insulation : Type 2 PVC compound to BS 7655 : Minimum radial thickness : 0.15mm : Minimum core diameter : 0.65mm : Maximum core diameter : 0.75mm Lay Up : 4 cores, red, blue, green and yellow : Polyester tape Screen : 0.1mm tinned annealed copper braid : Minimum filling factor : 0.7 Sheath : Type 6 PVC compound to BS 7655 : Minimum radial thickness : 0.3mm : Minimum overall diameter : 2.9mm : Maximum overall diameter : 3.4mm Service Data : For local interconnection between instruments and electronic equipment : Not suitable for direct connection to mains power supplies : Maximum working voltage : 250V ACrms : Nominal capacitance : core to core : 95pF/m, core to screen : 170pF/m : Maximum (conductor) operating temperature : 70C : Approximate mass / unit length : 17.3kg/km Conformity Declaration to EU Directive 2002/95/EC (RoHS) This cable does not contain : lead, mercury, cadmium, hexavalent chromium, PBB or PBDE Please note that this declaration does not exclude irrelevant trace levels (extremely low levels) of the listed substances that may be unintentionally present. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 13/08/14 V1.0
