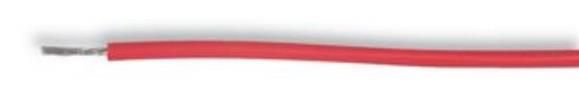

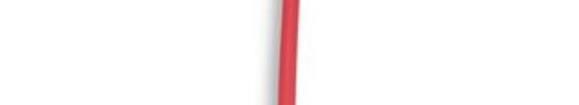

Flexible Wiring Cable BS6195 Type 5A Application: Coil end leads are used mainly as a flexible connection to coil windings of motors, generators, transformers, circuit breakers and actuators. Standards / Conformances: BS6195, Type 5A Construction: Conductor : Tinned annealed copper to EN60228 Class 5 Insulation : Silicone rubber Type EI2 to EN 50363 In Black and Red colour Electrical Characteristics: Rated Voltage : 300 / 500V Physical Characteristics: Maximum temperature : 180C Flame propagation : IEC 60332-1-2 Bend radius : Fixed : 4 cable OD Flexing : 6 cable OD Part Number Table Conductor Nom. Cable Max. Conductor Reel Description Size diameter DC Resistance at Colour Part Number Length (mm) mm 20C (/km) 0.2 2.35 92.4 Black BSR29 BLACK 25M 0.2 2.35 92.4 Red BSR29 RED 25M 0.5 2.7 40.1 Black BSR39 BLACK 25M Silicone Insulated Wire 0.5 2.7 40.1 Red 25m BSR39 RED 25M 0.75 2.9 26.7 Black BSR49 BLACK 25M 0.75 2.9 26.7 BSR49 RED 25M Red 1.0 3.2 20.0 114 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 29/06/16 V1.0X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
