CBBR0164 Pro Power

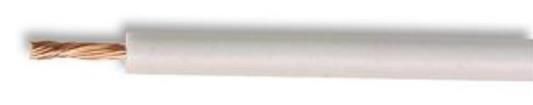

Tri-Rated Wire Product Type : Trirated Cable Construction: Plain Annealed Copper to: Conductor: BS6360 class 5 PVC compound meeting the requirements of: Insulation: Type TI3 to BS EN 50363 Standards / Conformances: BS6231, Type CK Tri-rated Flame Propagation: meets requirements of BS EN 60332-1 Electrical Characteristics: Rated Voltage (V) : 600/1000V Max. Temperature (BS 6231) : 90C Max. Temperature Rating : 105C Physical Characteristics: Max. Conductor DC Min. insulation Max. Overall Conductor Size Weight Resistance at 20C resistance at 90C Diameter (mm) (kg / km) ( / km) (M / km) (mm) 0.5 39 0.0161 3 10 0.75 26 0.0141 3.1 13 1 19.5 0.0128 3.3 16 1.5 13.3 0.0111 3.6 21 2.5 7.98 0.0094 4.1 31 4 4.95 0.0077 4.8 49 6 3.3 0.0059 5.3 73 10 1.91 0.0058 7.8 128 16 1.21 0.0048 9 201 25 0.78 0.0047 11.5 290 35 0.554 0.0040 12.5 392 50 0.386 0.0039 15.4 553 70 0.272 0.0033 17.5 776 120 0.161 0.0029 21.2 1,200 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 23/01/13 V1.1Tri-Rated Wire Part Number Table Description Part Number Wire, Tri Rated, Black, 0.5mm, 100M CBBR0155 Wire, Tri Rated, Blue, 0.5mm, 100M CBBR0156 Wire, Tri Rated, Brown, 0.5mm, 100M CBBR0157 Wire, Tri Rated, Grey, 0.5mm, 100M CBBR0159 Wire, Tri Rated, Orange, 0.5mm, 100M 0.50ORG Wire, Tri Rated, Red, 0.5mm, 100M CBBR0162 Wire, Tri Rated, White, 0.5mm, 100M CBBR0164 Wire, Tri Rated, Yellow, 0.5mm, 100M CBBR0165 Wire, Tri Rated, GRN/YEL, 0.5mm, 100M CBBR0166 Wire, Tri Rated, Black, 0.75mm, 100M CBBR0167 Wire, Tri Rated, Blue, 0.75mm, 100M CBBR0168 Wire, Tri Rated, Brown, 0.75mm, 100M CBBR0169 Wire, Tri Rated, Grey, 0.75mm, 100M CBBR0171 Wire, Tri Rated, Orange, 0.75mm, 100M CBBR0172 Wire, Tri Rated, Red, 0.75mm, 100M CBBR0174 Wire, Tri Rated, Violet, 0.75mm, 100M CBBR0175 Wire, Tri Rated, White, 0.75mm, 100M CBBR0176 Wire, Tri Rated, Yellow, 0.75mm, 100M CBBR0177 Wire, Tri Rated, GRN/YEL, 0.75mm, 100M CBBR0178 Wire, Tri Rated, Black, 1mm, 100M CBBR0179 Wire, Tri Rated, Blue, 1mm, 100M CBBR0180 Wire, Tri Rated, Brown, 1mm, 100M CBBR0181 Wire, Tri Rated, Grey, 1mm, 100M CBBR0183 Wire, Tri Rated, Orange, 1mm, 100M CBBR0184 Wire, Tri Rated, Red, 1mm, 100M CBBR0186 Wire, Tri Rated, Violet, 1mm, 100M CBBR0187 Wire, Tri Rated, White, 1mm, 100M CBBR0188 Wire, Tri Rated, Yellow, 1mm, 100M CBBR0189 Wire, Tri Rated, GRN/YEL, 1mm, 100M CBBR0190 Wire, Tri Rated, Black, 1.5mm, 100M CBBR0191 Wire, Tri Rated, Blue, 1.5mm, 100M CBBR0192 Wire, Tri Rated, Brown, 1.5mm, 100M CBBR0193 Wire, Tri Rated, Grey, 1.5mm, 100M CBBR0195 Wire, Tri Rated, Orange, 1.5mm, 100M CBBR0196 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 23/01/13 V1.1
