HTC3024-1 Pro Power

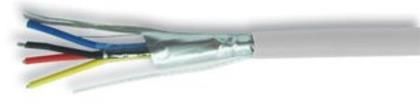

Alarm Screen Cable 4 Core Colour Code 1 2 3 4 Red Blue Black Yellow Specifications Table Construction Item Construction Item A Construction 7 / 0.18 0.001 Conductors Material TCu Outer Diameter 0.55 0.05 Material PVC Insulators Diameter 1 0.05 Average Thickness 0.22 0.005 (Minimum : 0.17) Inner-Layer Construction 7 0.18 (TCU) Direction Right (S) Layer Pitch 50 10 Diameter 2.61 0.1 Shielded Material PET / A1-Foil Material PVC / PE Jacket Diameter 3.5 0.1 Average Thickness 0.5 0.1 (Minimum : 0.4) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 15/06/12 V1.1Alarm Screen Cable 4 Core Construction Item Construction Item A Jacket Extrusion Semi Substantiate Surface Plane Colour Light Grey Inking Inking Colour Black Dimensions : Millimetres Part Number Table Description Part Number Cable, Alarm, Screen, 4 Core, 100 m HTC3024-1 Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 15/06/12 V1.1
