PP000259 Pro Power

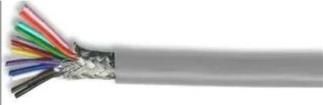

Defence Standard 61-12 Part 5 - 16-2-C Screened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.5mm Construction : T0.216 Stranded Dia.(mm) : 0.92 Insulation Thickness : 0.44 Insulation Dia.(+/-0.05mm) : 1.8 Insulation : FR PVC Insulation Colours : See Insulation Colours Table Braid Shield : Tinned Copper Nylon Rip Cord : 150D Jacket Material : FR PVC Jacket Colour : Grey Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) : <37.04 20C Insulation Resistance (M/Km) : >200 Rated Temperature(C) : -20 to +80 Rated Voltage(V) : 440 Insulation Colours table Core Number Colour Core Number Colour 1 Red 10 Pink 2 Blue 11 Turquoise 3 Green 12 Grey 4 Yellow 13 Red/Blue 5 White 14 Green/Red 6 Black 15 Yellow/Red 7 Brown 16 White/Red 8 Violet 17 Red/Black 9 Orange 18 Red/Brown www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 30/04/15 V1.3Defence Standard 61-12 Part 5 - 16-2-C Screened Multicore Cable Part Number Table Core Jacket Diameter Reel Length Description Braiding Part Number No. (mm) (m) 25 PP000254 Cable, Screen, DEF 16-2-4C 4 7.3 T0.1247 100 PP000255 25 PP000256 Cable, Screen, DEF 16-2-6C 6 8.3 T0.12410 100 PP000257 25 PP000258 Cable, Screen, DEF 16-2-12C 12 10.5 T0.12411 PP000259 100 Cable, Screen, DEF 16-2-18C 18 12 T0.12328 PP000260 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 30/04/15 V1.3
