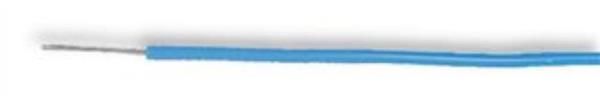

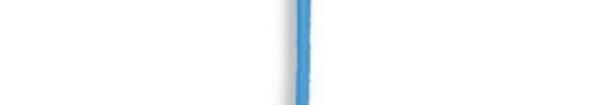

PP000394 Pro Power

2 BS4808 1mm (32/0.2mm) PVC Equipment Wire Reference Standard BS4808 Part 2 Class 3 and Def. Stan. 61-12(Pt6) Type 3 Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 1mm Construction : T0.2 0.00832 Stranded Dia. (mm) : 1.3 Jacket Material : PVC Jacket Thickness : 0.6 Jacket Insulation Dia. (0.15mm) : 2.52+0.13/-0.12 Electrical Characteristics: Max. Conductor DC Resistance at 20C (/Km) : <18.8 Min. Insulation DC Resistance at 20C (M/Km) : 200 Rated Temperature (C) : -25 to 85C Rated Voltage (V) : 1,500 Flame Performance : UL1581VW-1 IEC60332-1 Part Number Table Reel Length Reel Length Description Colour Part Number Description Colour Part Number (m) (m) Black PP000388 Pink PP000398 Brown PP000389 Green/Yellow 100 PP000399 Red PP000390 Yellow/Green PP000400 Orange PP000391 Black PP000401 Yellow PP000392 Red PP000402 Wire, Wire, 100 32/0.2mm 32/0.2mm Green PP000393 Blue PP000403 Blue PP000394 Brown 500 PP000404 Violet PP000395 Pink PP000405 Grey PP000396 Yellow PP000406 White PP000397 Yellow/Green PP000407 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/09/14 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
