Product Information

PP000511

PP000511 electronic component of Pro Power

Datasheet

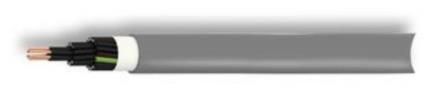

CONTROL CABLE, YY, 4COND, 1.5MM2, 100M
Manufacturer: Pro Power
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

100: USD 4.3117 ea
Line Total: USD 431.17

0 - Global Stock
MOQ: 100  Multiples: 100
Pack Size: 100

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Tue. 21 May to Mon. 27 May

MOQ : 1
Multiples : 1

Stock Image

PP000511
Pro Power

1 : USD 385.4921

Read More Specifications


Manufacturer
Product Category
Jacket Colour
Jacket Material
Conductor Material
Voltage Rating
Brand
Cable Shielding
No. Of Cores
Conductor Area Csa
Reel Length Imperial
Reel Length Metric
External Diameter
Product Range
Svhc
Cable Type
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Pro Power"

Image Description
PP000615 electronic component of Pro Power PP000615

CABLE, COAXIAL, 100M, BLACK, RG223
Stock : 0

PP000514 electronic component of Pro Power PP000514

SOLAR CABLE, 1COND, 6MM2, BLACK, 100M
Stock : 2

PP000512 electronic component of Pro Power PP000512

CONTROL CABLE, YY, 4COND, 2.5MM2, 100M
Stock : 0

PP000616 electronic component of Pro Power PP000616

CABLE, COAXIAL, 100M, BLACK, URM76, LSZH
Stock : 0

PP000614 electronic component of Pro Power PP000614

COAXIAL CABLE, RG213B/U, BLACK, 100M
Stock : 0

PP000613 electronic component of Pro Power PP000613

CABLE, COAXIAL, 100M, BLACK, RG179, PVC
Stock : 0

PP000611 electronic component of Pro Power PP000611

CABLE, TRIAX, 500M, BROWN, RG178, FEP
Stock : 0

PP000606 electronic component of Pro Power PP000606

CABLE, COAXIAL, 250M, BROWN, RG142, FEP
Stock : 0

PP000513 electronic component of Pro Power PP000513

SOLAR CABLE, 1COND, 4MM2, BLACK, 100M
Stock : 6

PP000612 electronic component of Pro Power PP000612

CABLE, COAXIAL, 250M, WHITE, RG6, PVC
Stock : 0

More Products By Category "Multi-Conductor Cables"

Image Description
PP001081 electronic component of Pro Power PP001081

CABLE, SIAF/H05S-K, 0.75MM2, BROWN, 100M
Stock : 3

WPPM-4026S electronic component of World Products WPPM-4026S

WPPM4026S world products
Stock : 0

CTB9200/7FL electronic component of CamdenBoss CTB9200/7FL

TERMINAL BLOCK, PLUGGABLE, 7POS, 12AWG
Stock : 0

RD21N101J101A5HAND electronic component of Walsin RD21N101J101A5HAND

CAPACITOR, MLCC, NP0, 100PF, 100V, RAD
Stock : 0

PP001078 electronic component of Pro Power PP001078

CABLE, SIAF/H05S-K, 0.5MM2, RED, 100M
Stock : 0

030121 electronic component of Wera 030121

SCREWDRIVER, PRECISION, TX5, 40MM
Stock : 0

WPPM-4024A electronic component of World Products WPPM-4024A

WPPM4024A world products
Stock : 0

PP000510 electronic component of Pro Power PP000510

CONTROL CABLE, YY, 4COND, 1MM2, 100M
Stock : 0

CTB9202/5 electronic component of CamdenBoss CTB9202/5

TERMINAL BLOCK, PLUGGABLE, 5POS, 12AWG
Stock : 0

Additional Infomation About Product

YY LSZH / BS EN 50525-3-11 Multiconductor Unscreened Flexible Control Cable Application: For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as intercon - necting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors. Construction: Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation Halogen-Free Compound Type TI6 according to BS EN 50363 Sheath LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363-8 Cable Standards Generally to BS EN 50525-3-11, VDE 0250, BS EN/IEC 60332-3, BS EN/IEC 60754-1 Characteristics: Voltage Rating (Uo/U) 300/500V Temperature Rating Fixed : -40C to +70C Flexed : -15C to +70C Minimum Bending Radius Fixed : 4 overall diameter Flexed : 10 overall diameter Core Identification Black with White numbers (3 core and above includes Green/Yellow) Coloured cores: 2 core : Blue & Brown 3 core : Green/Yellow, Blue & Brown 4 core : Green/Yellow, Brown, Black & Grey Sheath Colour Grey www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/02/15 V1.3YY LSZH / BS EN 50525-3-11 Multiconductor Unscreened Flexible Control Cable Dimensions: Nominal Cross Thickness of Nominal Over- Nominal No. of Part Number Sectional Area outer Sheath all Diameter Weight Cores mm mm mm kg/km PP000501* 0.75 0.8 5.7 46 PP000502 1 0.8 5.9 52 2 PP000503 1.5 0.9 7.1 75 PP000504 2.5 0.9 8.3 108 PP000505* 0.75 0.8 6.04 54 PP000506 1 0.8 6.26 63 3 PP000507* 1.5 0.9 7.54 90 PP000508* 2.5 1 9.04 136 PP000509 0.75 0.8 6.58 66 PP000510* 1 0.9 7.02 80 4 PP000511 1.5 0.9 8.23 116 PP000512* 2.5 1 9.87 179 *These cables are available with colour coded cores Conductors Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Nominal Cross Max. Diameter of Wires Max. Resistance of Conductor at 20C Sectional Area in Conductor Plain Wires mm mm / km 0.75 0.21 26 1 0.21 19.5 1.5 0.26 13.3 2.5 0.26 7.98 Electrical Characteristics: Current Carrying Capacity at 30C Nominal Cross Sectional Area Current Rating mm Amps 0.75 12 1 15 1.5 18 2.5 26 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/02/15 V1.3
