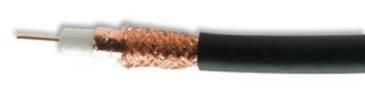

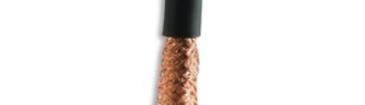

Coaxial Cable CTF Product Description: Part Number PP000629 PP000630 PP000631 Application For communication and signal control systems Reference Standard Customers sample spec. and the general standard Multi-construction 1 Cable Construction: Conductor Bare Copper Construction 1 0.02 1.25 0.02 1.670.03 Stranded Dia. (mm) 1 1.25 1.67 Insulation Layer Gas injection Foam PE Thickness (mm) 1.8 2.2 2.8 (0.15mm) (0.2mm) (0.25mm) Insulation Dia. 4.6 5.65 7.35 CU-Foil Shield(over lapping,%) >115% 115% 115% Thickness () 40 Braiding Bare Copper Bare Copper braiding Construction (mm) 0.15 0.008 16 3 0.14 0.008 16 4 0.14 0.008 16 5 Braid coverage(%) 44% 45% 40% Jacket Layer PVC Thickness (mm) 0.7 0.75 1 (0.2mm) (+/-0.25mm) (0.3mm) Dia. 6.65 7.8 10.15 Insulation Colour Natural Color Outer Jacket Colour According to customer Black Black RG Wire & Cable RG Wire & Cable RG Wire & Cable Limited CTF167 Marking Limited CTF100 75 Limited CTF125 75 75 PVC MM PVC MM WkYr PVC MM WkYr WkYr Packaging 100m/Cardboard Reel 100m/Wooden Drum 100m/Wooden Drum www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 18/02/15 V1.0Coaxial Cable CTF Electrical Characteristics: Part Number PP000629 PP000630 PP000631 Max. Conductor DC Resistance at 20C (/Km) <24.1 15.4 <8.65 Min. Insulation DC Resistance at 20C (M*Km) >500 Rated Temperature(C) 80 Rated Voltage(V) 30 Capacitance(pF/m) 52.5+/-3 <60 <58 Velocity ratio (%) 80% 81% 81% Impedance() 75+/-3 Attenuation at 20C (- dB/100m)(10%) 5MHz 1.6 50MHz 4.6 3.5 2.7 100MHz 6.5 4.9 3.9 200MHz 9.5 230MHz 7.5 6.1 460MHz 15 470MHz 10.9 8.9 860MHz 19.5 14.5 12.5 1,000MHz 21.5 16.2 13.6 1,350MHz 19 16 1,750MHz 29.0 22 18.6 2,150MHz 32.5 24.8 20.9 2,400MHz 27 22.5 3,000MHz 30.2 25.2 Return Loss ( -dB ) 5MHz - 30MHz >23 >23 >23 30MHz - 470MHz >23 >23 >23 470MHz - 862MHz >20 >20 >20 862MHz - 2,150MHz >18 >18 >18 Screening Attenuation 30MHz - 470MHz >75 470 MHz - 1,000MHz >75 1,000MHz - 2,150MHz >65 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 18/02/15 V1.0
