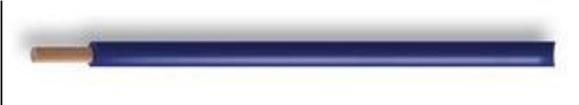

H05Z-K / H07Z-K BS EN 50525-3-41 LSZH Wire Application: In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed. Construction: Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 50363-5. Cable Standards Made in accordance with the following: BS EN 50525-3-41 (previously BS 7211 Table 3 and 4b CENELEC HD22.9), BS EN/IEC 60332-1-2, BS EN 50267-2-1, BS EN/IEC 61034-1 Characteristics: Voltage Rating (Uo/U) 2 2 H05Z-K - 0.5mm to 1mm : 300/500V 2 2 H07Z-K - 1.5mm to 16mm : 450/750V Temperature Rating -25C to +90C Minimum Bending Radius 2 Up to 16mm : 4 overall diameter Insulation Colour Black, Blue, Brown, Green/Yellow & Grey Dimensions: 2491B - H05Z-K Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000435 0.5 0.6 1.9 2.4 0.015 PP000436 Black 0.75 0.6 2.2 2.8 0.011 PP000432 1 0.6 2.4 2.9 0.01 PP000441 0.75 0.6 2.2 2.8 0.011 Blue PP000437 1 0.6 2.4 2.9 0.01 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 22/09/15 V1.4H05Z-K / H07Z-K BS EN 50525-3-41 LSZH Wire Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000445 0.75 0.6 2.2 2.8 0.011 Brown PP000442 1 0.6 2.4 2.9 0.01 PP000449 0.5 0.6 1.9 2.4 0.015 PP000451 Green/Yellow 0.75 0.6 2.2 2.8 0.011 PP000446 1 0.6 2.4 2.9 0.01 6701B H07Z-K Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000433 1.5 0.7 2.8 3.5 0.01 PP000434 2.5 0.8 3.4 4.3 0.009 Black PP001062 10 1 5.7 7.1 0.0056 PP001063 16 1 6.7 8.4 0.0046 PP000438 1.5 0.7 2.8 3.5 0.01 PP000439 2.5 0.8 3.4 4.3 0.009 PP000440 Blue 6 0.8 4.4 5.5 0.006 PP001054 10 1 5.7 7.1 0.0056 PP001055 16 1 6.7 8.4 0.0046 PP000443 1.5 0.7 2.8 3.5 0.01 PP000444 2.5 0.8 3.4 4.3 0.009 Brown PP001058 10 1 5.7 7.1 0.0056 PP001059 16 1 6.7 8.4 0.0046 PP000447 1.5 0.7 2.8 3.5 0.01 PP000448 2.5 0.8 3.4 4.3 0.009 PP000450 Green/Yellow 6 0.8 4.4 5.5 0.006 PP001060 10 1 5.7 7.1 0.0056 PP001061 16 1 6.7 8.4 0.0046 PP001056 10 1 5.7 7.1 0.0056 Grey PP001057 16 1 6.7 8.4 0.0046 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 22/09/15 V1.4
