PP14789 Pro Power

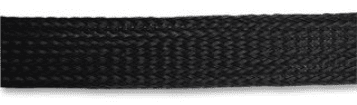

Pro-Power-SIL4 Silicon Coated Glass Braid Insulation sleeving. Class H (180C) 4.0kV grade Applications Suitable for high temperature rated electrical equipment and appliances, for use as primary insulation or as secondary reinforcing. Also offers protection for conductors in high heat applications and in areas of likely mechanical damage. Supplied in 5 metre coils. Ordering Information INSIDE DIAMETER WALL THICKNESS PART Number (min) Typically (mm) Pro-Power-SIL4-2.00-0 2.0 0.80 Pro-Power-SIL4-4.00-0 4.0 0.80 Pro-Power-SIL4-6.00-0 6.0 0.80 Pro-Power-SIL4-8.00-0 8.0 0.80 Colour Black Properties o Thermal Classification Class H (180 C) Construction Silicon Coated Glass Braid o Maximum Short term Temperature 250 C o Electric Strength 20 C Tested to IEC 684-2 4.0kV/1 min ASTM D350 7000V Flammability Self Extinguishing This product is Compliant with ROHS 2002/95/EC the Restriction of use of certain Hazardous Substances in electrical and electronic equipment. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Wire Identification category: Click to view products by Pro Power manufacturer: Other Similar products are found below : CU6337-000 CU6342-000 FCA-410-12 11631010 1-1768037-1 1-1768037-2 1-1768050-0 PXLK-VI Q62184-1 A64304-000 QMT221 HK032WE1NF038B 1330-0519-10 1395199-1 1395200-1 1395202-1 DMVF050WE-300S6 D-SCE-1K-2.4-50-4-CS7834 1538738-1 E90935-000 EC1238-000 EC1465-000 EC1855-000 EC1859-000 EC1863-000 EC5415-000 EC7277-000 EC7352-000 EC7603-000 EC7707-000 EC7735-000 EC7768-000 EC7828-000 EC7854-000 EC7952-000 EC8128-000 1768037-8 1768041-7 NC-127191-10-9 HS048WE2NF038B C03232-000 HTCM-SCE-14-4H-9 HTMS-3/16-9 HT-SCE-1/4-2.0-4 HT-SCE-3/16-2.0-4 HTTMS-1/2-1.50-9 HTTMS- CM-1/2-4H-9 HX-SCE-19.0-50-9 HX-SCE-6.4-50-4 C25254-000
