X-On Electronics has gained recognition as a prominent supplier of P25SMT103TR Rotary Switches across the USA, India, Europe, Australia, and various other global locations. P25SMT103TR Rotary Switches are a product manufactured by PTR HARTMANN. We provide cost-effective solutions for Rotary Switches, ensuring timely deliveries around the world.

P25SMT103TR PTR HARTMANN

Name: P25SMT103TR
Brand: PTR HARTMANN
SKU: P25SMT103TR_PTR_HARTMANN
Availability: InStock
Rating: 5 (11 reviews)

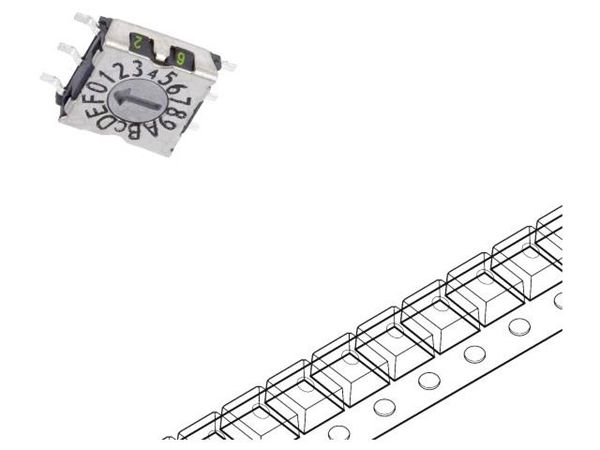

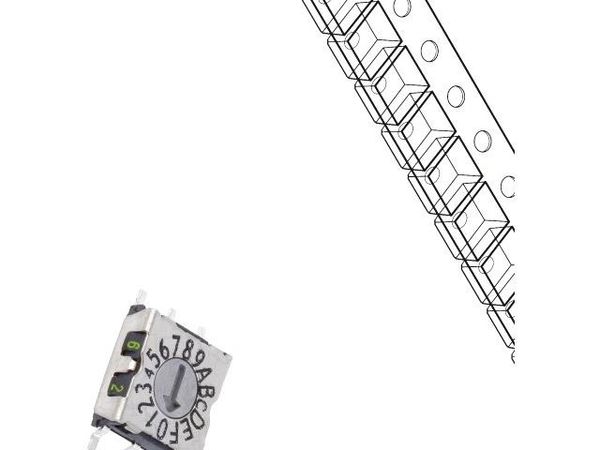

P25SMT103TR electronic component of PTR HARTMANN

Images are for reference only
See Product Specifications

Part No.	P25SMT103TR
Manufacturer:	PTR HARTMANN
Category:	Rotary Switches
Description:	Switch: encoding switch; Pos: 16; 1uA/20mVDC; -50÷125°C; 7x7x2.5mm
Datasheet:	P25SMT103TR Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.422 ea
Line Total: USD 2.42

Availability - 1598
Ship by Mon. 09 Jun to Wed. 11 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

P25SMT103TR More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1598

Ship by Mon. 09 Jun to Wed. 11 Jun

MOQ : 1
Multiples : 1

1 : USD 2.422
12 : USD 1.68
31 : USD 1.582
1000 : USD 1.526

Specifications

Manufacturer

PTR HARTMANN PTR HARTMANN

Product Category

Rotary Switches Rotary Switches

Number of Positions

16 16

Category

Rotary Switches Rotary Switches

Mounting

SMD SMD

Min. Insulation Resistance

100 MOhms 100 MOhms

Leads

for PCB for PCB

Type Of Switch

encoding switch encoding switch

Switches Features

without knob without knob

Max. Contact Resistance

: 80 mOhms : 80 mOhms

Body Dimensions

7x7x2.5mm 7x7x2.5mm

Stable Positions Number

16 16

Operating Temperature

- 50 To 125 C - 50 To 125 C

Dc Contacts Rating @R

1µ A / 20m V DC 1µ A / 20m V DC

Manufacturer Series

P25 P25

Notes:- Show Stocked Products With Similar Attributes.
