X-On Electronics has gained recognition as a prominent supplier of BN 20-RZ-M16 across the USA, India, Europe, Australia, and various other global locations. BN 20-RZ-M16 are a product manufactured by Schmersal. We provide cost-effective solutions for BN 20-RZ-M16, ensuring timely deliveries around the world.

BN 20-RZ-M16 Schmersal

Name: BN 20-RZ-M16
Brand: Schmersal
SKU: BN20RZM16_Schmersal
Availability: InStock
Rating: 5 (11 reviews)

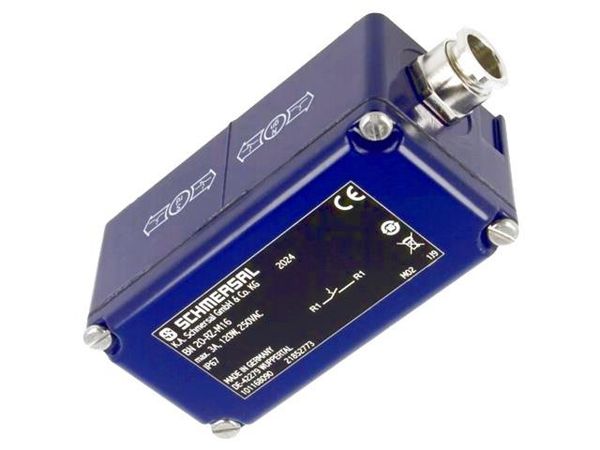

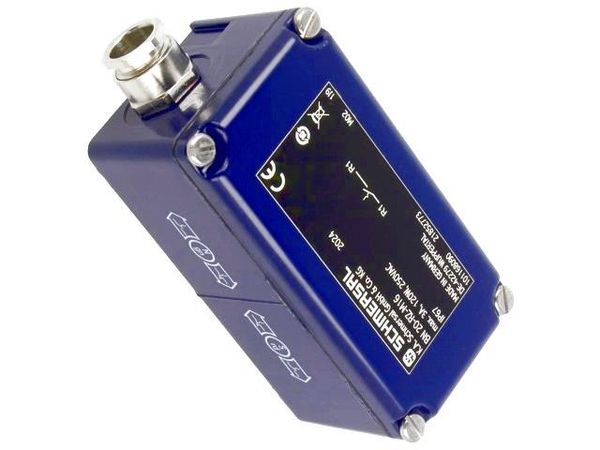

BN 20-RZ-M16 electronic component of Schmersal

Images are for reference only
See Product Specifications

Part No.	BN 20-RZ-M16
Manufacturer:	Schmersal
Category:	Unclassified
Description:	Reed switch; Range: 5÷50mm; Pswitch: 120W; 52x47x104mm; -25÷90°C
Datasheet:	BN 20-RZ-M16 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 181.2069 ea
Line Total: USD 181.21

Availability - 5
Ship by Wed. 18 Jun to Fri. 20 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

BN 20-RZ-M16 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

5

Ship by Wed. 18 Jun to Fri. 20 Jun

MOQ : 1
Multiples : 1

1 : USD 181.2069

Specifications

Manufacturer

Schmersal Schmersal

Product Category

Unclassified Unclassified

Category

Unclassified Unclassified

Leads

screw screw

Ip Rating

IP67 IP67

Body Material

aluminium aluminium

Switching Capacity

120VA, 120W 120VA, 120W

Type Of Sensor

reed switch reed switch

Range

5...50mm 5...50mm

Kind Of Output

bistable bistable

Switched Voltage

Max . 250 VDC , Max . 250 VAC Max . 250 VDC , Max . 250 VAC

Electrical Connection

M16 x2 M16 x2

Operating Temperature

- 25 To 90 C - 25 To 90 C

Safety Switches Features

key activation on the front, side key activation, actuating distance depending on actuating magnet key activation on the front, side key activation, actuating distance depending on actuating magnet

Body Dimensions

52x47x104mm 52x47x104mm

Switched Current Max.

3 A 3 A

Manufacturer Series

BN 20 BN 20
