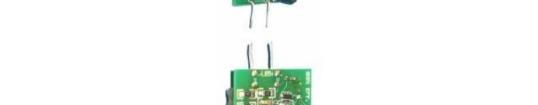

STEVAL-ILL041V1

STEVAL-ILL041V1 electronic component of STMicroelectronics

Datasheet
Power Management IC Development Tools 93 EFF LED Driver US Solution Board

Manufacturer: STMicroelectronics
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 84.775 ea
Line Total: USD 84.78

1 - Global Stock
Ships to you between
Wed. 05 Jun to Mon. 10 Jun
MOQ: 1  Multiples: 1
Pack Size: 1
Availability Price Quantity
1 - WHS 1


Ships to you between
Wed. 05 Jun to Mon. 10 Jun

MOQ : 1
Multiples : 1

Stock Image

STEVAL-ILL041V1
STMicroelectronics

1 : USD 84.775


Manufacturer
Product Category
RoHS - XON
Icon ROHS
Product
Type
Tool Is For Evaluation Of
Input Voltage
Series
Output Current
Packaging
Brand
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.
Image Description
STEVAL-ILL051V1 electronic component of STMicroelectronics STEVAL-ILL051V1

LED Lighting Development Tools 3 A HB LED driver Dimming Function
Stock : 0

STEVAL-ILL051V2 electronic component of STMicroelectronics STEVAL-ILL051V2

STMicroelectronics LED Lighting Development Tools 3 A HB LED driver Dimming Function
Stock : 25

STEVAL-ILL049V12 electronic component of STMicroelectronics STEVAL-ILL049V12

LED Lighting Development Tools LED driver based on the LED6001 + 9-LED board with NTC sensor
Stock : 0

STEVAL-ILL048V1 electronic component of STMicroelectronics STEVAL-ILL048V1

LED Lighting Development Tools Single-channel LED driver for automotive day-time running lights (DTRL) and front lights based on ALED6001 and STM32F103
Stock : 0

STEVAL-ILL045V1 electronic component of STMicroelectronics STEVAL-ILL045V1

LED Lighting Development Tools 9 W, A19 format Triac Dimmable BRD
Stock : 2

STEVAL-ILL042V2 electronic component of STMicroelectronics STEVAL-ILL042V2

LED Lighting Development Tools 60 W, high power-factor flyback LED driver based on the L6562AT and TSM101
Stock : 0

STEVAL-ILL046V2 electronic component of STMicroelectronics STEVAL-ILL046V2

LED Lighting Development Tools ST1CC40 HB LED Driver Inhibit BRD
Stock : 0

STEVAL-ILL046V1 electronic component of STMicroelectronics STEVAL-ILL046V1

LED Lighting Development Tools HB LED driver inhibit based on the ST1CC40 in a QFN package
Stock : 0

STEVAL-ILL044V1 electronic component of STMicroelectronics STEVAL-ILL044V1

LED Lighting Development Tools 9 W Triac dimmable High PWR ISO BRD
Stock : 2

STEVAL-ILL043V1 electronic component of STMicroelectronics STEVAL-ILL043V1

STMicroelectronics LED Lighting Development Tools 75W High PWR L6562A High PF 2 DIMM LED
Stock : 0

Image Description
STEVAL-ILH002V1 electronic component of STMicroelectronics STEVAL-ILH002V1

Power Management IC Development Tools 35W BALLAST FOR HID LAMP METAL HALIDE
Stock : 0

STEVAL-ILD002V1 electronic component of STMicroelectronics STEVAL-ILD002V1

Power Management IC Development Tools DIMMABLE CFL BALLAST SOLUT BASED ON L6574
Stock : 0

STEVAL-ILB009V1 electronic component of STMicroelectronics STEVAL-ILB009V1

Power Management IC Development Tools STD3N62K3 Ballast STD845D PFC BJT BRD
Stock : 0

STEVAL-ILB008V1 electronic component of STMicroelectronics STEVAL-ILB008V1

Power Management IC Development Tools 4x18 W Range Ballast L6585DE Combo IC
Stock : 0

STEVAL-ILB007V1 electronic component of STMicroelectronics STEVAL-ILB007V1

STMicroelectronics Power Management IC Development Tools 2x58 W Wide Range Ballast IC L6585DE
Stock : 0

STEVAL-IHT004V1 electronic component of STMicroelectronics STEVAL-IHT004V1

T1235H-6T, ACS108, BTB08-600SW Triac Controller Power Management Evaluation Board
Stock : 0

STEVAL-IHM045V1 electronic component of STMicroelectronics STEVAL-IHM045V1

Power Management IC Development Tools 3-phase high voltage inverter power board for FOC based on the STGIPN3H60A (SLLIMM™-nano)
Stock : 0

STEVAL-IHM043V1 electronic component of STMicroelectronics STEVAL-IHM043V1

Power Management IC Development Tools 6-Step BLDC sensorless driver board based on the STM32F051 and L6234
Stock : 1

STEVAL-IHM041V1 electronic component of STMicroelectronics STEVAL-IHM041V1

STMicroelectronics Power Management IC Development Tools STM8 Triac Based 120V 60Hz 7A BRD
Stock : 3

STEVAL-IHM040V1 electronic component of STMicroelectronics STEVAL-IHM040V1

STMicroelectronics Power Management IC Development Tools BLDCPMSM STM3 Driver Demo Board
Stock : 0

STEVAL-ILL041V1 A 93% efficient LED driver solution for the US market Data brief Features Output current 350 mA +/-3% over 90 V-138 V line range Load: 18 (connected in series) 1 W LEDs Efficiency > 93% Power factor > 0.97 RoHS compliant Description STEVAL-ILL041V1 The STEVAL-ILL041V1 demonstration board implements an LED driver that meets the present requirements for the US market. The STEVAL-ILL041V1 utilizes STs L6564 power factor controller in an unconventional circuit to regulate the input power to a step-down switching regulator. The circuit also compensates for variations in LED voltage drop, to maintain the average output current in a tight band over a wide range of line voltage and LED characteristics. While the input current waveform is not perfectly sinusoidal, power factor and harmonic content are well within the requirements for the US commercial market. The form factor was designed to fit into the PAR38 envelope and the driver and LEDs can be used to replace 65 W incandescent flood lamps. October 2011 Doc ID 018900 Rev 1 1/4 For further information contact your local STMicroelectronics sales office. www.st.com 4 Circuit schematic STEVAL-ILL041V1 1 Circuit schematic Figure 1. Circuit schematic FS - V 2/4 Doc ID 018900 Rev 1
