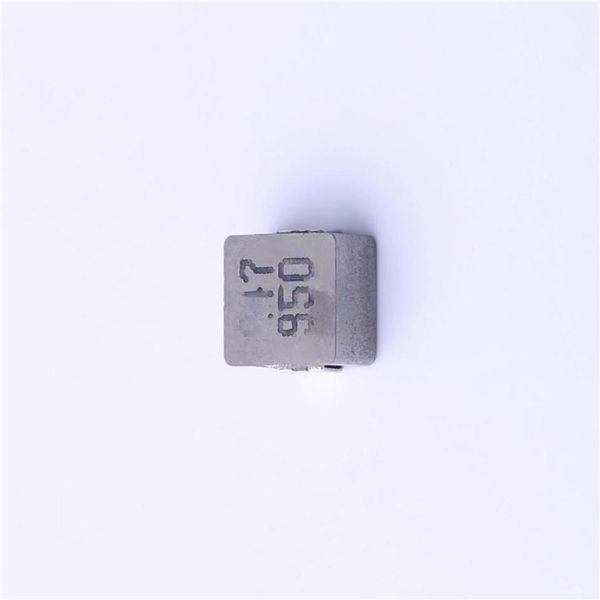

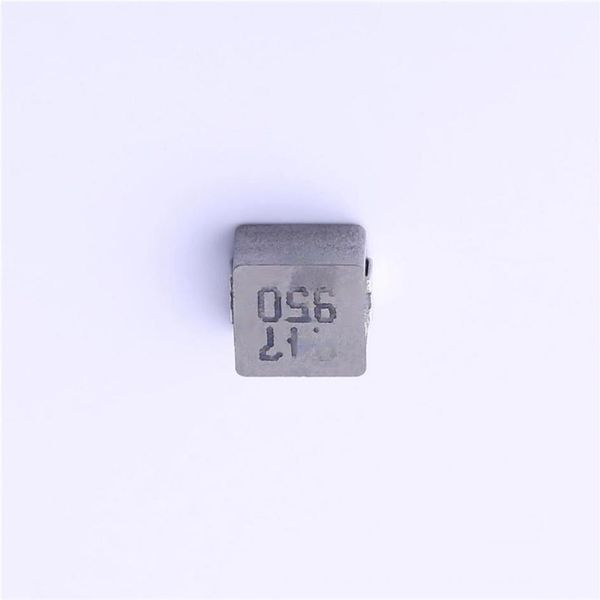

SMD Power Inductor 0530CDMCC/DS Description Metal compound molding type construction. RoHS Magnetically shielded. Low audible core noise. Suitable for large current. Halogen LWH:5.75.43.0mm Max. Product weight:0.43g (Ref.) Free Moisture Sensitivity Level: 1 RoHS compliance. Halogen Free available. Dimension - mm Environmental Data 5.40.3 2.80.2 2.2 Operating temperature range: -55+125 (including coils self temperature rise) Storage temperature range: -55+125 Solder reflow temperature: 260 peak. Packaging 1.20.2 00.15 Carrier tape and reel packaging. 1.5 2000pcs/Reel. Land pattern and Schematics - mm Applications Ideally used in notebook, ultrabook, tablet PC, 6.0 LCD display, Server application. 2.2 High current, POL converters. Low profile, high current power supplies. Battery powered devices. 2.5 DC/DC converters in distributed power systems. Page 1 of 4 Revised: 10-Jan-19 5.2 0.2 2.2 0.1 2.5SMD Power Inductor 0530CDMCC/DS Electrical Characteristics Saturation Inductance D.C.R Temperature Current (H) (m) rise current Part No. Stamp (A)2 Within (at 25 ) (A) 3 Max.(Typ.) Typ. 1 Max.(Typ.) (at 25 ) R10 0.10 20% 2.8(2.4) 24.5(29.0) 21.0 0530CDMCCDS-R10MC 0.20 20% 18.7(22.0) 0530CDMCCDS-R20MC R20 3.9(3.5) 14.0 R33 0.33 20% 5.0(4.4) 16.0(19.0) 13.5 0530CDMCCDS-R33MC 0.47 20% 15.3(18.0) 0530CDMCCDS-R47MC R47 8.5(7.4) 10.5 0.68 20% 11.9(14.0) R68 12.0(11.0) 9.6 0530CDMCCDS-R68MC 1R0 1.0 20% 14.0(13.0) 10.2(12.0) 9.4 0530CDMCCDS-1R0MC 1.2 20% 11.5(13.5) 0530CDMCCDS-1R2MC 1R2 16.0(15.0) 8.7 11.1(13.0) 1R5 1.5 20% 25.0(20.0) 7.2 0530CDMCCDS-1R5MC 2R2 2.2 20% 29.0(25.0) 7.6(9.0) 5.8 0530CDMCCDS-2R2MC 3.3 20% 6.8(8.0) 0530CDMCCDS-3R3MC 3R3 38.0(32.0) 5.1 4R7 4.7 20% 60.0(50.0) 5.1(6.0) 3.8 0530CDMCCDS-4R7MC 5.6 20% 3.6(4.3) 0530CDMCCDS-5R6MC 5R6 54.0(47.0) 4.0 6.8 20% 3.8(4.5) 6R8 90.0(75.0) 3.3 0530CDMCCDS-6R8MC 100 10 20% 125(110) 3.4(4.0) 2.8 0530CDMCCDS-100MC 1 Measuring frequency Inductance at 100kHz ,1.0V 2 Saturation current: The value of DC current when the inductance is over 70% of its initial value. (at 25 ) 3 Temperature rise current: The actual value of DC current when temperature of coil rise is T=40(Ta=25) Board conditions: FR4, Copper=70m,four-layer PWB, t=1.6mm. Page 2 of 4 Revised: 10-Jan-19
