X-On Electronics has gained recognition as a prominent supplier of EF92251B2-1000U-A99 DC Fans across the USA, India, Europe, Australia, and various other global locations. EF92251B2-1000U-A99 DC Fans are a product manufactured by Sunon. We provide cost-effective solutions for DC Fans, ensuring timely deliveries around the world.

EF92251B2-1000U-A99 Sunon

Name: EF92251B2-1000U-A99
Brand: Sunon
SKU: EF92251B21000UA99_Sunon
Availability: InStock
Rating: 5 (11 reviews)

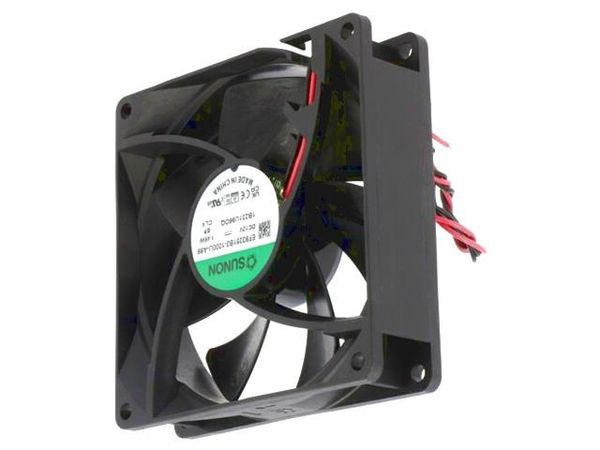

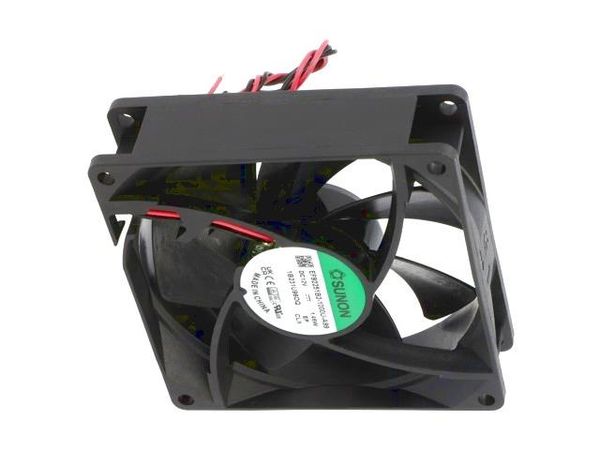

EF92251B2-1000U-A99 electronic component of Sunon

Images are for reference only
See Product Specifications

Part No.	EF92251B2-1000U-A99
Manufacturer:	Sunon
Category:	DC Fans
Description:	DC Fans DC Axial Fan, 92x92x25mm, 12VDC, Ball, Lead Wires, Auto Restart, 2017Q3-MP
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 8.736 ea
Line Total: USD 8.74

Availability - 968
Ship by Wed. 21 May to Fri. 23 May

MOQ: 1 Multiples: 1
Pack Size: 1

EF92251B2-1000U-A99 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

968

Ship by Wed. 21 May to Fri. 23 May

MOQ : 1
Multiples : 1

1 : USD 8.736
25 : USD 6.58
50 : USD 5.796
224 : USD 5.39
250 : USD 5.348

Specifications

Manufacturer

Sunon Sunon

Product Category

DC Fans DC Fans

Supply Voltage

12 VDC 12 VDC

Operating Supply Voltage

4.5 To 13.8 V 4.5 To 13.8 V

Airflow

58.45m³/h 58.45m³/h

Min. Insulation Resistance

10 MOhms 10 MOhms

Operating Temperature

- 10 To 70 C - 10 To 70 C

Enclosure Material

thermoplastic thermoplastic

Current Rating

104 mA 104 mA

Leads

lead x2 lead x2

Type Of Fan

DC DC

Fan Dimensions

92x92x25mm 92x92x25mm

Fan Motor

brushless DC brushless DC

Impeller Material

thermoplastic thermoplastic

Flammability Rating

UL94V - 0 UL94V - 0

Insulation Class

A A

Kind Of Bearing

ball bearing ball bearing

Static Pressure

2.79mm H₂O 2.79mm H₂O

Noise Level

37.9dBA 37.9dBA

Rotational Rate/Speed

2700 ( ± 10 % )rpm 2700 ( ± 10 % )rpm

Power Consumption

1.25 W 1.25 W

Wire Size

24AWG 24AWG

Cable Length

3.05 m 3.05 m

Additional Functions

autorestart autorestart

Kind Of Fan

axial axial

Notes:- Show Stocked Products With Similar Attributes.

EF92251B2-1000U-A99 Alternative Parts

We are delighted to provide the EF92251B2-1000U-A99 from our DC Fans category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the EF92251B2-1000U-A99 and other electronic components in the DC Fans category and beyond.

HS Compliance

Tariff Desc

8414.59.90 FANS INCORPORATING BRUSHLESS MOTORS, having ANY of the following:
(a) DC powered;
Op. 19.10.2000 Dec. 05.01.2001 - TC 0008777
