SMD0805-005 TECHFUSE

Name: SMD0805-005
Brand: TECHFUSE
SKU: SMD0805005_TECHFUSE
Availability: InStock
Rating: 5 (11 reviews)

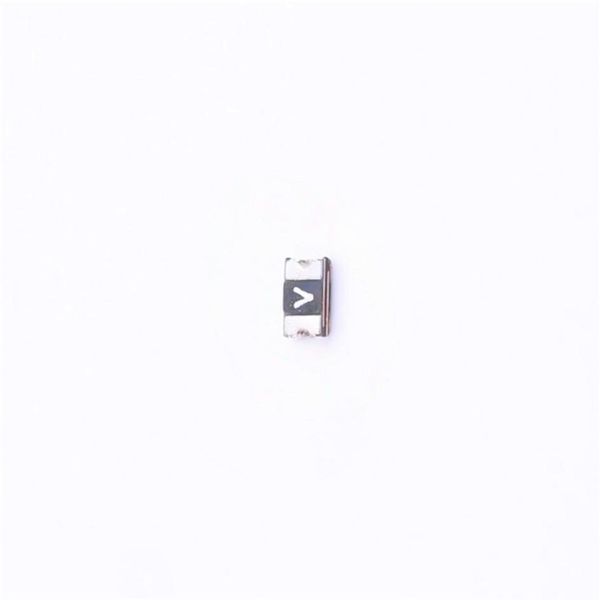

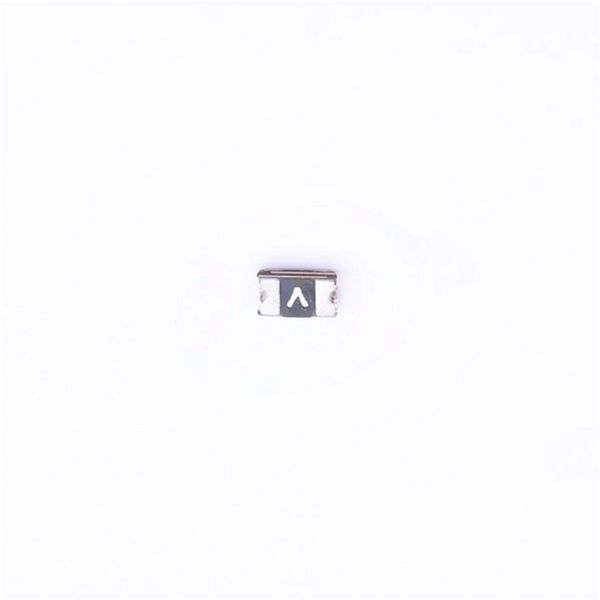

SMD0805-005 electronic component of TECHFUSE

Images are for reference only
See Product Specifications

Part No.	SMD0805-005
Manufacturer:	TECHFUSE
Category:	Resettable Fuses - PPTC
Description:	15V 50mA 100A 500mW 200mA 2Ω 1.5s 10Ω 0805 Resettable Fuses ROHS
Datasheet:	SMD0805-005 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

10: USD 0.0752 ea
Line Total: USD 0.75

Availability - 8215
Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ: 10 Multiples: 10
Pack Size: 10

SMD0805-005 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

8215

Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ : 10
Multiples : 10

10 : USD 0.0752
100 : USD 0.061
300 : USD 0.054
1000 : USD 0.0329
5000 : USD 0.0265
10000 : USD 0.0251

Specifications

Manufacturer

TECHFUSE TECHFUSE

Product Category

Resettable Fuses - PPTC Resettable Fuses - PPTC

Hold Current

50 mA 50 mA

Trip Current

200 mA 200 mA

Category

Resettable Fuses-PPTC Resettable Fuses-PPTC

Rohs

y y

Operating Voltage Max

15 V 15 V

Current Rating Max

100 A 100 A

Power Dissipation

500 mW 500 mW

Operating Temperature

- -

Resistance - Initial Ri Min

2 Ohms 2 Ohms

Maximum Time To Trip

1.5s 1.5s

Resistance - Post Trip R1 Max

10 Ohms 10 Ohms

Notes:- Show Stocked Products With Similar Attributes.
