SMD500L-16V TECHFUSE

Name: SMD500L-16V
Brand: TECHFUSE
SKU: SMD500L16V_TECHFUSE
Availability: InStock
Rating: 5 (11 reviews)

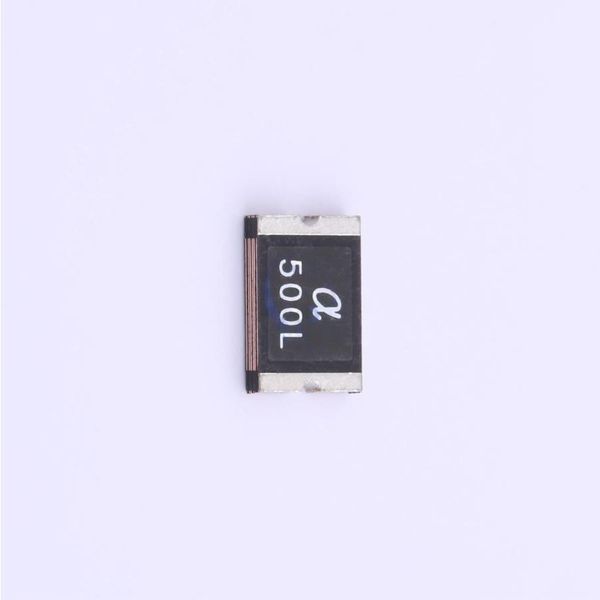

SMD500L-16V electronic component of TECHFUSE

Images are for reference only
See Product Specifications

Part No.	SMD500L-16V
Manufacturer:	TECHFUSE
Category:	Resettable Fuses - PPTC
Description:	16V 5A 100A 1.8W 10A 5mΩ 10s 31mΩ SMD,7.96x5.44mm Resettable Fuses ROHS
Datasheet:	SMD500L-16V Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.1926 ea
Line Total: USD 0.96

Availability - 4903
Ship by Mon. 30 Jun to Thu. 03 Jul

MOQ: 5 Multiples: 5
Pack Size: 5

SMD500L-16V More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

4903

Ship by Mon. 30 Jun to Thu. 03 Jul

MOQ : 5
Multiples : 5

5 : USD 0.1926
50 : USD 0.171
150 : USD 0.1198
1500 : USD 0.0976
3000 : USD 0.0933
4500 : USD 0.0911

Specifications

Manufacturer

TECHFUSE TECHFUSE

Product Category

Resettable Fuses - PPTC Resettable Fuses - PPTC

Hold Current

5 A 5 A

Trip Current

10 A 10 A

Category

Resettable Fuses-PPTC Resettable Fuses-PPTC

Rohs

y y

Operating Voltage Max

16 V 16 V

Current Rating Max

100 A 100 A

Power Dissipation

1.8 W 1.8 W

Operating Temperature

- -

Resistance - Initial Ri Min

5 mOhms 5 mOhms

Maximum Time To Trip

10s 10s

Resistance - Post Trip R1 Max

31 mOhms 31 mOhms

Notes:- Show Stocked Products With Similar Attributes.
