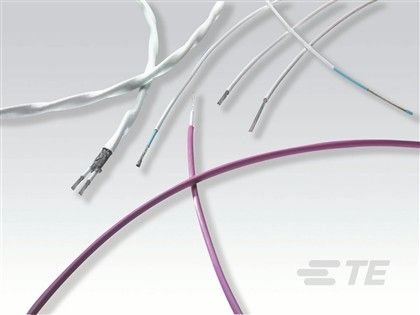

55FB1511 SPECIFICATION CONTROL DRAWING Date Revision TITLE ONE CONDUCTOR CABLE, SHIELDED, JACKETED, FILTER LINE - ELECTROLOSS 8-11-10 G This specification sheet forms a part of the latest issue of Raychem Specification 55F . JACKET - RADIATION-CROSSLINKED, COMPONENT WIRE - 55FA0511 SHIELD - TIN-COATED COPPER MODIFIED CONDUCTIVE ETFE CABLE CONSTRUCTION DETAILS JACKET FLEXURE JACKET THICKNESS OUTSIDE DIAMETER ENDURANCE CONDUCTOR SHIELD MAXIMUM PART NUMBER (in.) (in.) MANDREL SIZE SIZE WEIGHT 1/ DIAMETER (AWG) (AWG) (lbs/1000 ft.) (in.) ( 3%) MINIMUM NOMINAL NOMINAL MAXIMUM 55FB1511-22-* 22 38 .0060 .008 .083 .091 8.8 .125 55FB1511-20-* 20 38 .0060 .008 .091 .099 11.2 .125 55FB1511-18-* 18 38 .0060 .008 .102 .110 14.9 .250 55FB1511-16-* 16 38 .0060 .008 .110 .119 18.0 .250 55FB1511-14-* 14 38 .0060 .008 .127 .136 24.1 .250 55FB1511-12-* 12 38 .0060 .008 .143 .153 33.2 .250 55FB1511-10-* 10 38 .0060 .008 .169 .179 48.1 .250 CABLE RATINGS AND ADDITIONAL REQUIREMENTS TEMPERATURE RATING: 150C JACKET FLAWS: Not Applicable Maximum continuous conductor temperature JACKET FLEXURE ENDURANCE: 10 cycles, no cracking VOLTAGE RATING: 600 volts (rms) at sea level LIFE CYCLE: 200 3C for 168 hours BLOCKING: 200 3C for 6 hours LOW TEMPERATURE-COLD BEND: -65 2C for 4 hours CROSSLINKING PROOF TEST: 300 3C for 7 hours SHIELD COVERAGE: 85% (minimum) FLAMMABILITY: 3 seconds (maximum) 3 in. (maximum) VOLTAGE WITHSTAND (DIELECTRIC): no flaming of facial tissue Conductor to shield, 1500 volts (rms), 60 Hz FLUORIDE EXTRACTION: VOLTAGE WITHSTAND (Post Environmental): Not Applicable 70 2 C for 168 hours, 250 ppm (maximum) IDENTIFICATION AND COLOR STRIPING DURABILITY: PART NUMBER: 125 cycles (250 strokes) (minimum), 500 g weight The in the part numbers above shall be replaced by color code JACKET COLOR: Black designators with a dash separating the component wire color from JACKET ELONGATION AND TENSILE STRENGTH: the jacket color. Violet shall be light violet and the designator shall be 7L. Elongation, 50% (minimum) Example: AWG 22, light violet component wire, black jacket: Tensile Strength, 3500 lbf/in (minimum) 55FB1511-22-7L-0 NOTE: Nominal values are for information only. Nominal values are not requirements. This product meets or exceeds all requirements of SAE AS85485/12 for 22-10 AWG, less identification. Internal wire sizes 22-10 AWG meet or exceed all requirements of SAE AS85485/9, less identification. All other AWG sizes meet or exceed all requirements of SAE AS85485, less identification. Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902... MAY BE REPLACED BY Axxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. The TE logo, Tyco Electronics, Electroloss and Raychem are trademarks. Raychem Wire & Cable 501 Oakside Avenue DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL Redwood City, CA 94063-3800 Page 1 of 1 Phone: 1-800-227-8816 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Fax: 1-650-361-6297 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. 2008-2010 Tyco Electronics Corporation. All rights reserved.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Multi-Conductor Cables category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 89504-002-1000 89705-008-500 6000FE-877-1000 CS2885-000 M27500-20SP2S23 6309UE-877-1000 M3905-BK005 6502FE 8771000 CW9530-000 CX6543-000 CXA-0066-20-4-9CS2973 CXA-0078-16-1-9CS2405 CXA-0078-22-4-9CS2405 CXA-0078-24-4-9CS2405 CXA-0140-16-6/9-9CS2405 CY0660-000 720451-000 752687-000 768146-000 773159-000 83318E-009-500 8348-060-500 83559-002- 1000 83653-002-5000 8404-060-500 8469 060100 858171-000 8628-060-500 868361-001 8730-060-1000 8737-060-U1000 8747-060-100 8747-060-1000 8769-060-1000 8775-060-500 8780-060-1000 8782-001-U1000 9159-060-500 9318-060-1000 939870-000 9423 060U500 9444 060U1000 9497 0001000 9520-060-1000 9524-060-1000 9546-060-500 9572-002-U500 9774-060-1000 A43962-000 1232A1-008- 1000
