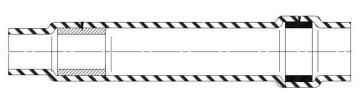

CUSTOMER DRAWING Product Dimensions Cable Dimensions Product Name L E A B D D max min min min min max D-108-06 127 73 8.9 7.5 4.5 7.5 (5.0) (2.875) (0.350) (0.295) (0.175) (0.295) D-108-07 127 74 10.2 8.8 5 8.8 (5.0) (2.915) (0.400) (0.345) (0.200) (0.345) D-108-08 131 74 12.7 11.3 7 11.3 (5.150) (2.915) (0.500) (0.445) (0.275) (0.445) MATERIALS 1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride 2. SOLDER PREFORM WITH FLUX: SOLDER: TYPE Sn96 per ANSI-J-STD-006. FLUX: TYPE ROM1 per ANSI-J-STD-004. 3. MELTABLE INSERT: Meltable thermoplastic. Color: clear. APPLICATION 1. These parts are designed to attach an overshield to butt spliced shielded cables. 2. Temperature range: -55 C to +150 C. Cable dimensions: see table. Raychem TITLE: THERMOFIT SOLDERSLEEVE* DEVICE DEVICES DOCUMENT NO.: Unless otherwise specified dimensions are in millimeters. Inches dimensions are shown in brackets D-108-06/-08 TOLERANCES: ANGLES: N/A TE Connectivity reserves the right to 0.00 N/A amend this drawing at any time. REV : DATE : 0.0 N/A ROUGHNESS IN Users should evaluate the suitability 2 16-Apr-2020 0 N/A MICRON of the product for their application. DRAWN BY: DATE: ECO: SCALE: SIZE: SHEET: M. FORONDA 29-JUN-98 NTS A 1 of 1 ECO-20-005255 2020 TE Connectivity Ltd. Family of Companies. All Rights Reserved. If this document is printed it becomes uncontrolled. Check for the latest revision. *TE Connectivity, TE connectivity (logo), Raychem, THERMOFIT, SolderSleeve are trademarks X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Solder Sleeves & Shield Tubing category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 899170-000 620040N001 620069N003 CTA-0050-01 629624-000 6500750004 6501390002 CX0781-000 696396-000 697080-000 D-150- 0331CS2902 D-181-1222-90/9CS2800 D-300-01CS1108 715325N001 908357N001 982127-1 D-436-0182CS246 D-436-37CS2651 D-436- 61CS246 D-436-82-CS2621 D-659-0087 E53797N001 CB0213-000 CB0219-000 S200-2-01 S200-4-00CS2904 LSS-81-16AA-CS5575 ST18-2-00 FLX40-020-04-CS8651 325534-000 CTA-0025 D-108-07CS436 D-128-0010 D-141-0108CS404 D-144-41CS1371 D-150-0231- NRCS2896 D-150-1011 395947-000 427243N001 B-801-18-01 515-9 C67137-000 CB0220-000 D-436-0185CS1102 D-436-36CS2908 D- 436-37CS2908 D-436-52CS246 D44133N001 LSS-26-8A 626168-000
