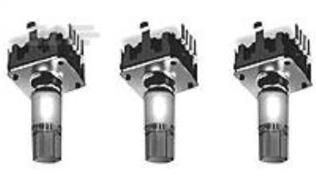

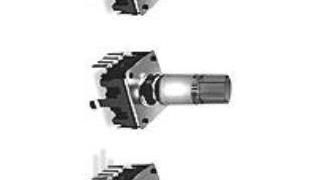

12mm Rotary Encoder with LED Type DPL12 Series Key Features 12mm rotary encoder Incremental type Push switch option Various shaft lengths LED color options Detent 12mm rotary incremental encoder with LED for use in electronic equipment. Options Can be supplied with or without switch with customization to standard options. Characteristics Electrical Pulse 24 / 360 Contact Rating 0.5mA 5VDC Dielectric Strength 300VAC / 1mA, 1 minute Insulation Resistance (min) M at 5VAC Operating Speed (RPM) 60 RPM Electrical Travel Continuous Rotational Noise t2 = 2.0ms max (see below) Chattering t1 & t3 = 3.0ms max (see below) Code off Area V=3.5V or more Code on Area V=1.5V or less LED With Switch Dual color (see below) No Switch Single color (see below) Color Options Switch 1 = Blue / Green, 2 = Blue / Orange, 3 = Green / Red) No Switch White, Red, Green, Blue Switch Power Rating (where fitted) 5VDC 10mA Switch contact Resistance M a . Operating Temperature -10C ~ +85C Storage Temperature -40C ~ +70C Dimensions in Dimensions Shown for 1-1773449-0 CIS WR 11/2016 For Email, phone or live chat, millimetres unless reference purposes only. go to: www.te.com/help otherwise specified Specifications subject to change 12mm Rotary Encoder with LED Electrical Characteristics Item Conditions Specifications 2 Phase different signals (signal A & signal B) Details shown below (broken line shows detent position where fitted) A (Terminal A-C) C/W Output Signal B (Terminal B-C) Format A (Terminal A-C) C C/W B (Terminal B-C) Resolution Number of pulses in 360 rotation 24 pulses / 360 each phase Switching Measurement shall be made under the following conditions: Characteristics 1. Shaft rotational speed: 360/S 2. Test Circuit: See below Chattering Speified the sigal s passage tie from 3.5V to 1.5V or from 1.5V to 3.5V of each switching position (Code OFF ON or ON OFF t , t 3mS NB To aoid hatterig t - t please consider masking time and adding C/R filters to your circuit for pulse count design. Sliding Noise Bounce Specified by the time of voltage change exceed 1.5V in code ON area. When the bounce has code ON time less than 1mS e tee hatterig s t or t the T S voltage change shall be regarded as part of chattering, When the code ON time between two bounces is less than 1ms they are regarded as one linked bounce Dimensions in Dimensions Shown for 1-1773449-0 CIS WR 11/2016 For Email, phone or live chat, millimetres unless reference purposes only. go to: www.te.com/help otherwise specified Specifications subject to change
