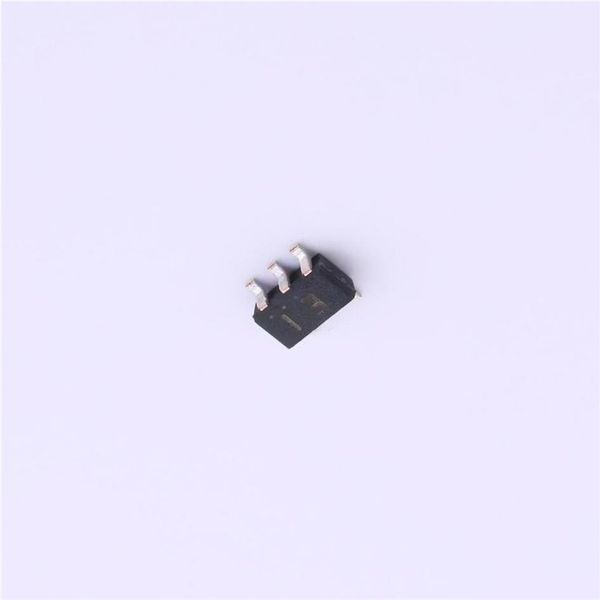

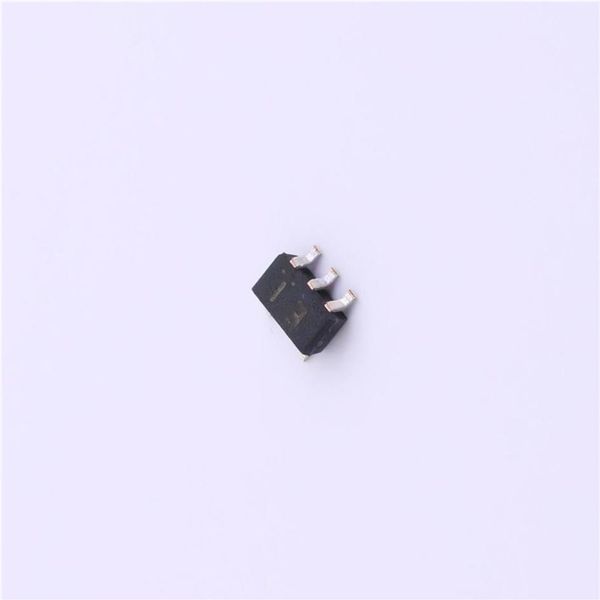

TC7S00F(TE85L,F) Toshiba

TC7S00F/FU TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7S00F, TC7S00FU 2-Input NAND Gate Features TC7S00F High Speed : t 7ns (Typ.) at V = 5 V pd = CC Low power dissipation : I = 1 A (Max) at Ta = 25C CC High noise immunity : V = V = 28% V (min) NIH NIL CC Output drive capability : 5 LSTTL Loads Symmetrical Output Impedance : I = I = 2mA (min) OH OL Balanced propagation delays : t t pLH pHL Wide operating voltage range : V = 2 to 6 V CC (SMV) TC7S00FU Marking Product name E 1 (USV) Weight SSOP5-P-0.95 : 0.016 g (Typ.) SSOP5-P-0.65A : 0.006 g (Typ.) Absolute Maximum Ratings (Ta = 25C) Characteristics Symbol Rating Unit Pin Assignment (top view) Supply voltage V 0.5 to 7.0 V CC DC input voltage V 0.5 to V + 0.5 V IN CC DC output voltage V 0.5 to V + 0.5 V OUT CC IN B 1 5 V CC Input diode current I 20 mA IK Output diode current I 20 mA OK IN A 2 DC output current I 12.5 mA OUT DC V /ground current I 25 mA CC CC GND 3 4 OUT Y Power dissipation P 200 mW D Storage temperature T 65 to 150 C stg Lead temperature (10 s) T 260 C L Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (Handling Precautions/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). 1 2009-08-03 TC7S00F/FU IEC Logic Symbol Truth Table IN A A B Y OUT Y & L L H IN B L H H H L H H H L Operating Ranges Characteristics Symbol Rating Unit Supply voltage V 2.0 to 6.0 V CC Input voltage V 0 to V V IN CC Output voltage V 0 to V V OUT CC Operating temperature T 40 to 85 C opr 0 to 1000 (V = 2.0 V) CC Input rise and fall time t , t 0 to 500 (V = 4.5 V) ns r f CC 0 to 400 (V = 6.0 V) CC 2 2009-08-03
