278-775-000

278-775-000 electronic component of Van Damme

Datasheet

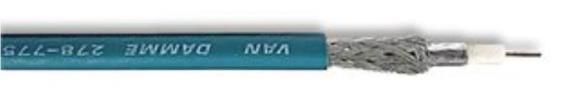

COAXIAL CABLE, HD MINI, BLUE, 100M
Manufacturer: Van Damme
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 2.6612 ea
Line Total: USD 2.66

0 - Global Stock
MOQ: 1  Multiples: 1
Pack Size: 1

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Wed. 22 May to Tue. 28 May

MOQ : 1
Multiples : 1

Stock Image

278-775-000
Van Damme

1 : USD 2.6612
10 : USD 2.4767
25 : USD 2.3907
50 : USD 2.2187

Read More Specifications


Manufacturer
Product Category
Coaxial Cable Type
Wire Gauge
Conductor Area Csa
Impedance
Reel Length Imperial
Reel Length Metric
Conductor Material
No Of Max Strands X Strand Size
Jacket Material
Jacket Colour
External Diameter
Svhc
Attenuation 100Mhz
Attenuation 10Mhz
Attenuation 135Mhz
Attenuation 200Mhz
Attenuation 400Mhz
Attenuation 5Mhz
Capacitance
Velocity Of Propagation
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Van Damme"

Image Description
268001CL electronic component of Van Damme 268001CL

CABLE, 1PAIR, 7/0.2MM, BLACK, 500M
Stock : 0

268002C electronic component of Van Damme 268002C

CABLE, 1PAIR, 7/0.2MM, BLUE, 100M
Stock : 0

268003C electronic component of Van Damme 268003C

CABLE, 1PAIR, 7/0.2MM, RED, 100M
Stock : 12

278-975-000 electronic component of Van Damme 278-975-000

COAXIAL CABLE, RG59/U, 28AWG, BLUE,PER M
Stock : 0

268001C electronic component of Van Damme 268001C

CABLE, 1PAIR, 7/0.2MM, BLACK, 100M
Stock : 16

268005C electronic component of Van Damme 268005C

CABLE, PHONO PATCH, BLACK, 100M
Stock : 25

104-466-003 electronic component of Van Damme 104-466-003

PATCH CORD, RJ45 PLUG, CAT6A, 3M, BLACK
Stock : 0

104-466-005 electronic component of Van Damme 104-466-005

PATCH CORD, RJ45 PLUG, CAT6A, 5M, BLACK
Stock : 0

104-466-010 electronic component of Van Damme 104-466-010

PATCH CORD, RJ45 PLUG, CAT6A, 10M, BLACK
Stock : 0

More Products By Category "Unclassified"

Image Description
CQ50623001 electronic component of TE Connectivity CQ50623001

Spiral Wraps, Sleeves, Tubing & Conduit LWB-103-3.0(10)
Stock : 1

00631 electronic component of Edl Lighting 00631

LUMINAIRE, FLEXIBLE, IP21, 24V, 20W
Stock : 0

451893-000 electronic component of TE Connectivity 451893-000

Solder Sleeves & Shield Tubing SO63-3-9030CS2677
Stock : 0

CRGH0603F22R electronic component of TE Connectivity CRGH0603F22R

Thick Film Resistors - SMD CRGH0603 1% 22R 0.2W
Stock : 27411

CPF-A-0402B100RE1 electronic component of TE Connectivity CPF-A-0402B100RE1

Thin Film Resistors - SMD CPF A 0402 100R 0.1% 25PPM
Stock : 2000

KM-23ESGC electronic component of Kingbright KM-23ESGC

LED, SMD, SOT-23, RED+GREEN
Stock : 0

Q33310F700202 SG-310SCF 16 MHZ C electronic component of Epson Q33310F700202 SG-310SCF 16 MHZ C

OSCILLATOR, SPXO, SG-310SCF, 16 MHZ, SMD
Stock : 0

CQT 202 electronic component of Adam CQT 202

WEIGHING, ELECTRONIC BALANCE, 200G
Stock : 0

CRGH0603F27K electronic component of TE Connectivity CRGH0603F27K

Thick Film Resistors - SMD CRGH0603 1% 27K 0.2W
Stock : 11482

CPF-A-0402B100KE1 electronic component of TE Connectivity CPF-A-0402B100KE1

Thin Film Resistors - SMD CPF A 0402 100K 0.1% 25PPM
Stock : 958

Additional Infomation About Product

VAN DAMME PRODUCT DATA SHEET VAN DAMME 278-775-000 HD VISION MINI COAX LSZH The Van Damme HD Vision Miniature precision coaxial cable has been designed with exacting electrical characteristics and mechanical tolerances to ensure trouble free performance with SMPTE 424M and 292M HD-SDI signals as well as SDI and analogue video. Applications & Application Notes Transmission of HD-SDI, SDI and analogue video signals Installation in public buildings, schools and colleges, government premises and marine vessels Low overall diameter for Outside Broadcast vehicles and high density patch panels Jacket material specified as the thermoplastic polymer SHF1 or a special LSZH polymer both compliant with IEC 60092 Electrical Installations in ships pt. 359 Sheathing materials for shipboard power and communication cables Fully tested and compliant with the following IEC standards o IEC 60332.1 Fire retardancy of a single cable o IEC 60754.1 Amount of Halogen Gas Emissions o IEC 60754.2 Degree of acidity of released gases o IEC 61034.2 Measurement of smoke density Use of precision 75 Ohm components throughout any signal chain is imperative Recommended Transmission Lengths SMPTE 259 SMPTE 292 SMPTE 424 Data rate (clock) 143Mb/s 177Mb/s 270Mb/s 360Mb/s 1.485Gb/s 2.97Gb/s Clock Rate 72MHz 89MHz 135MHz 180MHz 743MHz 1485MHz Stock code Recommended maximum transmission lengths 278-775-000 148m 132m 108m 66m 29m 20m www.van-damme.com VAN DAMME PRODUCT DATA SHEET Mechanical Specifications Conductor Material Bare ultra pure oxygen free copper Stranding 1 x 0.41mm Dielectric Material Gas injected Foam skin polyethylene Average 0.30mm thickness Diameter 1.90mm Screen 1 Type Aluminium/polyester foil 125% coverage Screen 2 Material Tinned ultra pure oxygen free copper Coverage 95% Overall Jacket Material LSZH polymer Water blue RAL 5021 Average thickness Overall 3.10 mm 0.15 diameter Electrical specifications Resistance Conductor <145 Ohm/km Shield Insulation >5000 MOhm/km Voltage test 1000V DC 1 minute OK Capacitance 56 pF/m Velocity of propagation 83% Impedance at 10MHz 75 Ohms 1.0 Attenuation 5 MHz 4.40 dB/100m 10 MHz 6.10 dB/100m 100 MHz 17.90 dB/100m 135 MHz 20.80 dB/100m 180 MHz 24.00 dB/100m 200 MHz 25.30 dB/100m 270 MHz 29.40 dB/100m 400 MHz 35.80 dB/100m 743 MHz 47.98 dB/100m 1485 MHz 63.70 dB/100m www.van-damme.com
