F221K25S3NN63J5R

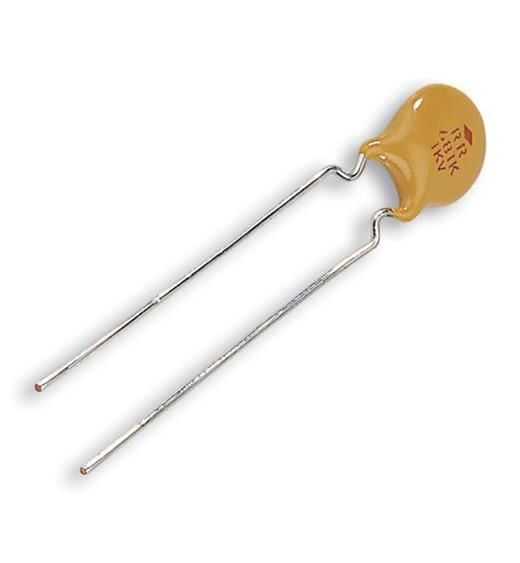

F Series www.vishay.com Vishay BCcomponents Ceramic Disc Capacitors, Class 1, Class 2, Low Loss (0.2 %), 500 V , 1 kV , 2 kV , and 3 kV DC DC DC DC FEATURES High reliability Low losses High capacitance in small size Kinked leads Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 APPLICATIONS In electronic circuits where low losses and high capacitance per volume are essential, for example: SMPS HF ballast Snubber and high voltage circuits QUICK REFERENCE DATA DESCRIPTION VALUE Ceramic Class 1 2 Ceramic Dielectric S3N Y5R Voltage (V ) 1000 2000 3000 500 1000 2000 3000 DC Min. Capacitance (pF) 100 100 100 100 100 100 100 Max. Capacitance (pF) 2200 4700 2700 2700 4700 4700 2700 Mounting Radial MARKING DESIGN Marking indicates capacitance value and tolerance in The capacitors consist of a ceramic disc both sides of which accordance with EIA 198 and voltage marks. are silver-plated. Connection leads are made of tinned copper having a diameter of 0.6 mm or 0.8 mm. OPERATING TEMPERATURE RANGE The capacitors are supplied with kinked leads and lead -30 C to +125 C spacings of 5 mm or 7.5 mm and 10 mm. Encapsulation is made of epoxy-resin, flammable resistant in accordance TEMPERATURE CHARACTERISTICS with UL 94 V-0 Class 1: S3N CAPACITANCE RANGE Class 2: Y5R 100 pF to 4700 pF SECTIONAL SPECIFICATION RATED DC VOLTAGE IEC 60384-9, EIA 198 500 V 1 kV 2 kV 3 kV EXAMPLES OF MARKING CODE DIELECTRIC STRENGTH Disc size (D ) 6.5 mm: Disc size (D ) 7.5 mm: max. max. 200 % of rated voltage BC RR = low loss with T.C. Y5R RR INSULATION RESISTANCE AT 500 V 101K 102K DC 2 kV 3 kV 10 000 M min. Note TOLERANCE ON CAPACITANCE Remark: no TC marking for S3N 10 % 20 % AGING DISSIPATION FACTOR Typical 0.5 % per time decade 0.2 % max. Note The capacitors meet the essential requirements of IEC 60384-9 and EIA 198. Unless stated otherwise all electrical values apply at an ambient temperature of 25 C 3 C, at normal atmospheric conditions Revision: 07-Oct-16 Document Number: 28500 1 For technical questions, contact: cdc vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 F Series www.vishay.com Vishay BCcomponents ORDERING CODES DIELECTRIC S3N (1000 V / 2000 V ) DC DC 1000 V 2000 V DC DC CAP. DIAMETER THICKNESS DIAMETER THICKNESS (pF) ORDERING CODE ORDERING CODE (mm max.) (mm max.) (mm max.) (mm max.) 100 F101K25S3NN6 R 6.5 4.0 F101K25S3NP6 R 6.5 4.5 120 F121K25S3NN6 R 6.5 4.0 F121K25S3NP6 R 6.5 4.5 150 F151K25S3NN6 R 6.5 4.0 F151K25S3NP6 R 6.5 4.5 180 F181K25S3NN6 R 6.5 4.0 F181K25S3NP6 R 6.5 4.5 220 F221K25S3NN6 R 6.5 4.0 F221K25S3NP6 R 6.5 4.5 270 F271K25S3NN6 R 6.5 4.0 F271K25S3NP6 R 6.5 4.5 330 F331K25S3NN6 R 6.5 4.0 F331K29S3NP6 R 7.5 4.5 390 F391K25S3NN6 R 6.5 4.0 F391K29S3NP6 R 7.5 4.5 470 F471K25S3NN6 R 6.5 4.0 F471K33S3NP6 R 8.5 4.5 560 F561K29S3NN6 R 7.5 4.0 F561K39S3NP6 R 10.0 4.5 680 F681K29S3NN6 R 7.5 4.0 F681K39S3NP6 R 10.0 4.5 820 F821K33S3NN6 R 8.5 4.0 F821K39S3NP6 R 10.0 4.5 1000 F102K33S3NN6 R 8.5 4.0 F102K43S3NP6 R 11.0 4.5 1200 F122K39S3NN6 R 10.0 4.0 F122K47S3NP63K7R 12.0 4.5 1500 F152K39S3NN6 R 10.0 4.0 F152K53S3NP63K7R 13.5 4.5 1800 F182K43S3NN6 R 11.0 4.0 F182K53S3NP63K7R 13.5 4.5 2200 F222K47S3NN6 R 12.0 4.0 F222K63S3NP63K7R 16.0 4.5 2700 / / / F272K63S3NP63K7R 16.0 4.5 3300 / / / F332K69S3NP63K7R 17.5 4.5 3900 / / / F392K75S3NP83K0R 19.0 4.5 4700 / / / F472K84S3NP83K0R 21.5 4.5 DIELECTRIC S3N (3000 V ) DC 3000 V DC CAP. DIAMETER THICKNESS (pF) ORDERING CODE (mm max.) (mm max.) 100 F101K25S3NR6 R 6.5 5.5 120 F121K25S3NR6 R 6.5 5.5 150 F151K29S3NR6 R 7.5 5.5 180 F181K29S3NR6 R 7.5 5.5 220 F221K29S3NR6 R 7.5 5.5 270 F271K29S3NR6 R 7.5 5.5 330 F331K33S3NR6 R 8.5 5.5 390 F391K39S3NR6 R 10.0 5.5 470 F471K39S3NR6 R 10.0 5.5 560 F561K39S3NR6 R 10.0 5.5 680 F681K43S3NR6 R 11.0 5.5 820 F821K53S3NR6 R 13.5 5.5 1000 F102K53S3NR6 R 13.5 5.5 1200 F122K59S3NR6 R 15.0 5.5 1500 F152K63S3NR6 R 16.0 5.5 1800 F182K69S3NR6 R 17.5 5.5 2200 F222K75S3NR83K0R 19.0 5.5 2700 F272K75S3NR83K0R 19.0 5.5 Notes Lead diameter is 0.6 mm th 5 digit is capacitance tolerance code: 10 % = K 20 % = M th 13 digit is packaging code: bulk = 3 reel = T ammo = U th 14 digit is lead style code: L J K (J is valid for 1 kV only) th 15 digit is lead spacing code: 5.0 mm = 5 6.4 mm = 6 7.5 mm = 7 10.0 mm = 0 Revision: 07-Oct-16 Document Number: 28500 2 For technical questions, contact: cdc vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
