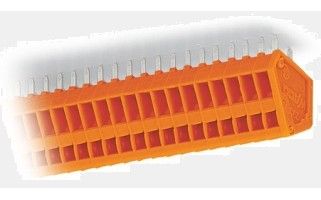

233-424 Wago

Printview: PCB terminal strip 2 solder pins/pole 24-pole pin spacing 2.54 mm / 0.1 in - Item No.: 233-424 . PCB terminal strip 2 solder pins/pole 24-pole pin spacing 2.54 mm / 0.1 in Item No.: 233-424 . PCB terminal strip 2 solder pins/pole 24-pole pin spacing 2.54 mm / 0.1 in . Marking . Business data Supplier WAGO Item no. 233-424 GTIN / EAN 4045454050191 Content 1 Order amount 20 Customer item number . Notes Compact terminal strips with CAGE CLAMP connection and screwdriver actuation parallel or perpendicular to conductor entryDouble solder pins for high mechanical stabilityCustom color combinations Technical data Miscellaneous No. of poles 24 Pin Spacing 2.54 mm / 0.1 in % Total number of connection points 24 Total number of potentials 24 Color orange Ratings according to 1 IEC/EN 60664-1 Overvoltage category EN 1 III Pollution degree (1) 2 WAGO Kontakttechnik GmbH & Co. KG 1Printview: PCB terminal strip 2 solder pins/pole 24-pole pin spacing 2.54 mm / 0.1 in - Item No.: 233-424 Technical data Rated voltage EN (1) V 160 V Rated surge voltage (1) kV 2.5 kV Nominal current A 6 A Overvoltage category EN 2 II Degree of pollution (2) 2 Rated voltage EN (2) V 320 V Rated surge voltage (2) kV 2.5 kV Nominal current (2) A 6 A Overvoltage category EN 3 III Degree of pollution (3) 3 Rated voltage EN (3) V 63 V Rated surge voltage (3) kV 2.5 kV Nominal current (3) A 6 A Number of individual connection objects at the product 1 Connection technology (1) CAGE CLAMP Solid sizes 1 0.08 0.5 mm / 28 20 AWG Fine-stranded wires 1 0.08 0.5 mm / 28 20 AWG Fine-stranded wires with insulated ferrule 1 0.25 mm / AWG Fine-stranded wires with uninsulated ferrule 1 0.25 mm / AWG Strip length 1 5 6 mm / 0.2 0.24 in Conductor entry angle to the PCB 1 30 Solder pin arrangement in-line solder pin Solder pin length mm 4 mm Solder pin width A mm 0.5 mm Solder pin width B mm 0.75 mm Tolerance of drilled hole mm 1.1(+ 0.1) mm Material group I Insulating material Polyamide 66 (PA 66) Flammability rating per UL 94 V0 Limit temperature range -60 C 105 C Clamping spring material Chrome-nickel spring steel (CrNi) Contact material Electrolytic copper (Ecu) Contact plating tin-plated Fire load MJ 0.124 MJ Weight g 8.186 g WAGO Kontakttechnik GmbH & Co. KG 2
