X-On Electronics has gained recognition as a prominent supplier of MSB40M Bridge Rectifiers across the USA, India, Europe, Australia, and various other global locations. MSB40M Bridge Rectifiers are a product manufactured by YFW Electronics. We provide cost-effective solutions for Bridge Rectifiers, ensuring timely deliveries around the world.

MSB40M YFW Electronics

Name: MSB40M
Brand: YFW Electronics
SKU: MSB40M_YFW_Electronics
Availability: InStock
Rating: 5 (11 reviews)

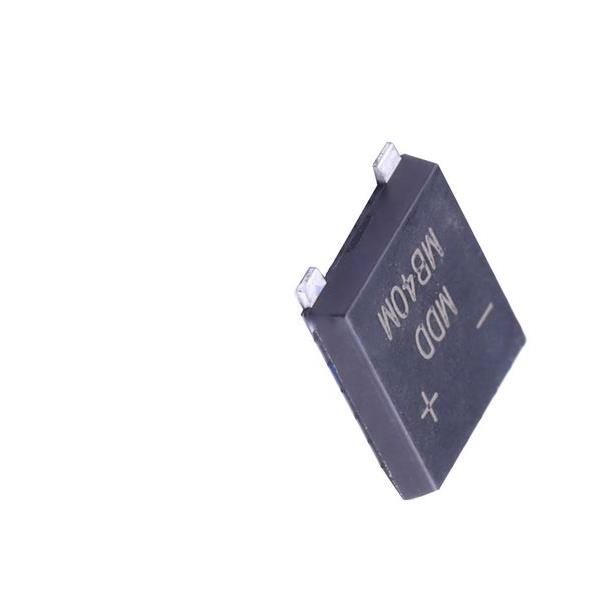

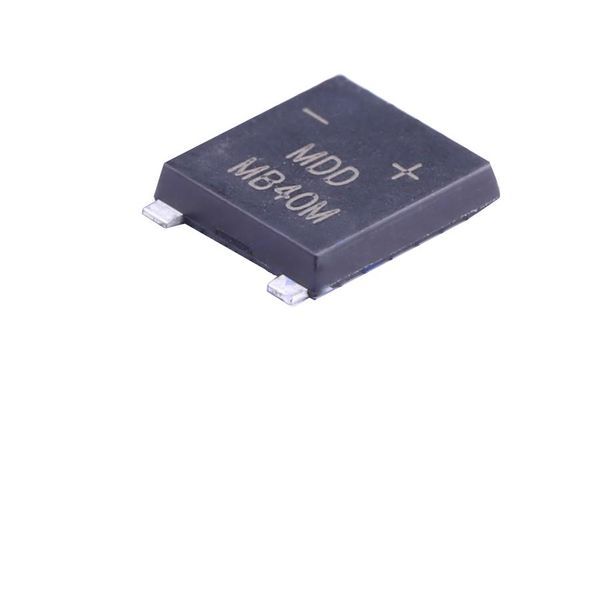

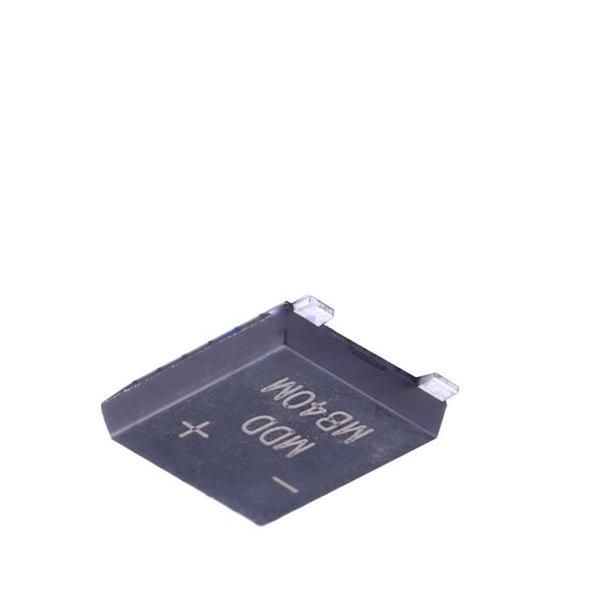

MSB40M electronic component of YFW Electronics

Images are for reference only
See Product Specifications

Part No.	MSB40M
Manufacturer:	YFW Electronics
Category:	Bridge Rectifiers
Description:	95A 1.1V@4A 4A 1kV UMSB Bridge Rectifiers ROHS
Datasheet:	MSB40M Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.281 ea
Line Total: USD 1.41

Availability - 2783
Ship by Fri. 16 May to Wed. 21 May

MOQ: 5 Multiples: 5
Pack Size: 5

MSB40M More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

2783

Ship by Fri. 16 May to Wed. 21 May

MOQ : 5
Multiples : 5

5 : USD 0.281
50 : USD 0.2232
150 : USD 0.1487
500 : USD 0.1129
3000 : USD 0.095
6000 : USD 0.0895

Specifications

Manufacturer

YFW Electronics YFW Electronics

Product Category

Bridge Rectifiers Bridge Rectifiers

Package / Case

UMSB UMSB

Rohs

y y

Peak Forward Surge Current

95 A 95 A

Forward Voltage Vf@If

1.1 V @4A 1.1 V @4A

Reverse Leakage Current Ir

5 uA @1kV 5 uA @1kV

Average Rectified Current Io

4 A 4 A

Reverse Voltage Vr

1 kV 1 kV

Operating Temperature

- 55 C ~ + 150 C @ (Tj) - 55 C ~ + 150 C @ (Tj)

Notes:- Show Stocked Products With Similar Attributes.
