X-On Electronics has gained recognition as a prominent supplier of DB3C-C1LD Basic / Snap Action Switches across the USA, India, Europe, Australia, and various other global locations. DB3C-C1LD Basic / Snap Action Switches are a product manufactured by ZF Cherry. We provide cost-effective solutions for Basic / Snap Action Switches, ensuring timely deliveries around the world.

DB3C-C1LD ZF Cherry

Name: DB3C-C1LD
Brand: ZF Cherry
SKU: DB3CC1LD_ZF_Cherry
Availability: OutOfStock
Rating: 5 (11 reviews)

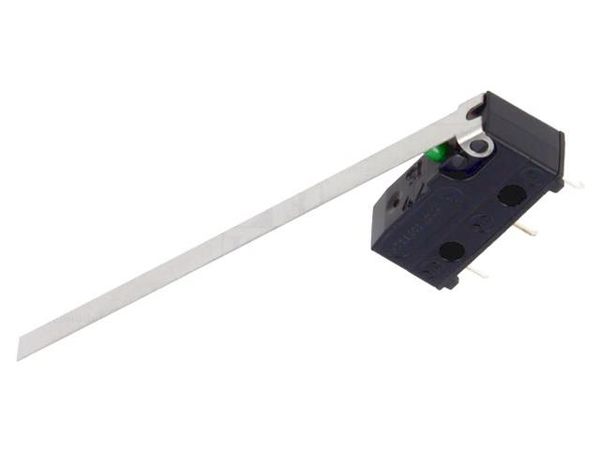

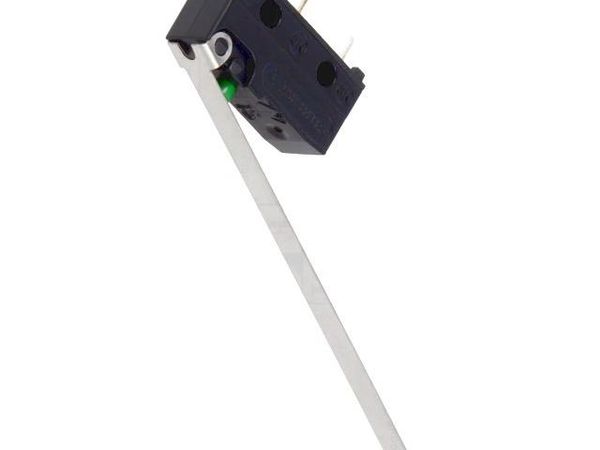

DB3C-C1LD electronic component of ZF Cherry

Images are for reference only
See Product Specifications

Part No.	DB3C-C1LD
Manufacturer:	ZF Cherry
Category:	Basic / Snap Action Switches
Description:	Microswitch SNAP ACTION; 0.1A/250VAC; with lever; SPDT; ON-(ON)
Datasheet:	DB3C-C1LD Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.52 ea
Line Total: USD 2.52

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

DB3C-C1LD More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 01 Jul to Thu. 03 Jul MOQ : 1 Multiples : 1	1 : USD 2.52 10 : USD 2.226 11 : USD 1.75 30 : USD 1.652

Specifications

Manufacturer ZF Cherry ZF Cherry
Product Category Basic / Snap Action Switches Basic / Snap Action Switches
Operating Force 1.5N 1.5N
IP Rating IP50 IP50
Mechanical Durability 15000000 cycles 15000000 cycles
Operating Temperature - 40 To 120°C - 40 To 120°C
Body Dimensions 20x6.45x9.85mm 20x6.45x9.85mm
Leads for PCB for PCB
Electrical Life 50000 cycles 50000 cycles
Type Of Switch microswitch SNAP ACTION microswitch SNAP ACTION
Contacts Configuration SPDT SPDT
Ac Contacts Rating @R 0.1A / 250 VAC 0.1A / 250 VAC
Switching Method ON - (ON) ON - (ON)
Stable Positions Number 1 1
Switches Features with lever with lever
Manufacturer Series DB DB
Number Of Positions 2 2

We are delighted to provide the DB3C-C1LD from our Basic / Snap Action Switches category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the DB3C-C1LD and other electronic components in the Basic / Snap Action Switches category and beyond.
