LCD, with A backlit
|

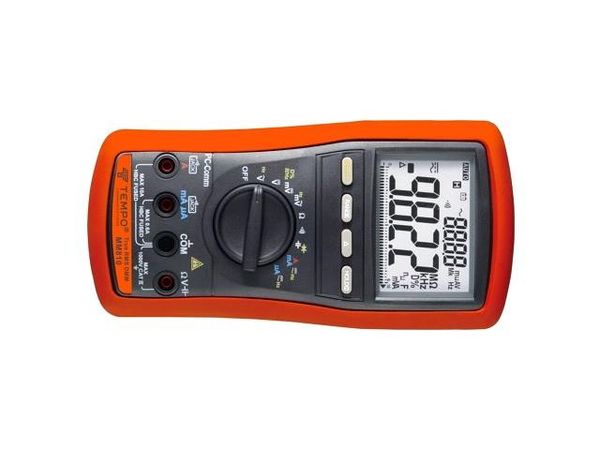

digital multimeter
|
|
|
|
|
|
|
|
|
AC voltage, DC voltage, frequency, capacitance, DC current, resistance, AC current, continuity, touch voltage
|
|
|
- 20 To 60 C
|
40 To 500Hz , 50 To 60Hz , 500 To 1000Hz , 1 To 3kHz , 3 To 20kHz
|
10 A , 600 uA , 6 A , 60 mA , 600 mA , 6000 uA
|
6 kOhms hms , 60 kOhms hms , 600 kOhms hms , 6 MOhms , 60 MOhms , 6 Ohms
|
600 uA , 6000 uA , 60 mA , 600 mA , 6 A , 8 A
|
600 mV , 60 mV , 99.99 V , 999.9 V , 9.999 V
|
999.9 V , 600 mV , 60 mV , 99.99 V , 9.999 V
|
600 nF , 6 uF , 60 uF , 60 nF , 600 uF , 6 MF , 25 MF
|
|
|
b A ttery 9 V x1
|
CAT IV 1000 V
|
(0 , 06 % + 0 , 2 mV) (600 mV) , ± (0 , 08 % + 0 , 002 V) (9 , 999 V) , ± (0 , 08 % + 0 , 02 V) (99 , 99 V) , ± (0 , 08 % + 0 , 2 V) (999 , 9 V) , ± (0 , 12 % + 0 , 02 mV) (60 mV)
|
± (0 , 8 % + 0 , 03 nF) (60 nF) , ± (0 , 8 % + 0 , 3 nF) (600 nF) , ± (1 , 0 % + 0 , 003 uF) (6 uF) , ± (2 , 0 % + 0 , 03 uF) (60 uF) , ± (3 , 5 % + 0 , 5 uF) (600 uF) , ± (5 , 0 % + 0 , 005 MF) (6 MF) , ± (6 , 5 % + 0 , 05 MF) (25 MF)
|
± (0 , 1 % + 0 , 003 kOhms hms) (6 kOhms hms) , ± (0 , 1 % + 0 , 03 kOhms hms) (60 kOhms hms) , ± (0 , 1 % + 0 , 3 kOhms hms) (600 kOhms hms) , ± (0 , 1 % + 0 , 3 Ohms) (600 Ohms) , ± (0 , 4 % + 0 , 003 MOhms) (6 MOhms) , ± (1 , 5 % + 0 , 05 MOhms) (60 MOhms)
|
(0 , 2 % + 0 , 04 A) (8 A) , ± (0 , 2 % + 0 , 04 mA) (60 mA) , ± (0 , 2 % + 0 , 4 mA) (600 mA) , ± (0 , 2 % + 0 , 4 uA) (600 uA) , ± (0 , 2 % + 4 uA) (6000 uA)
|
|
|
