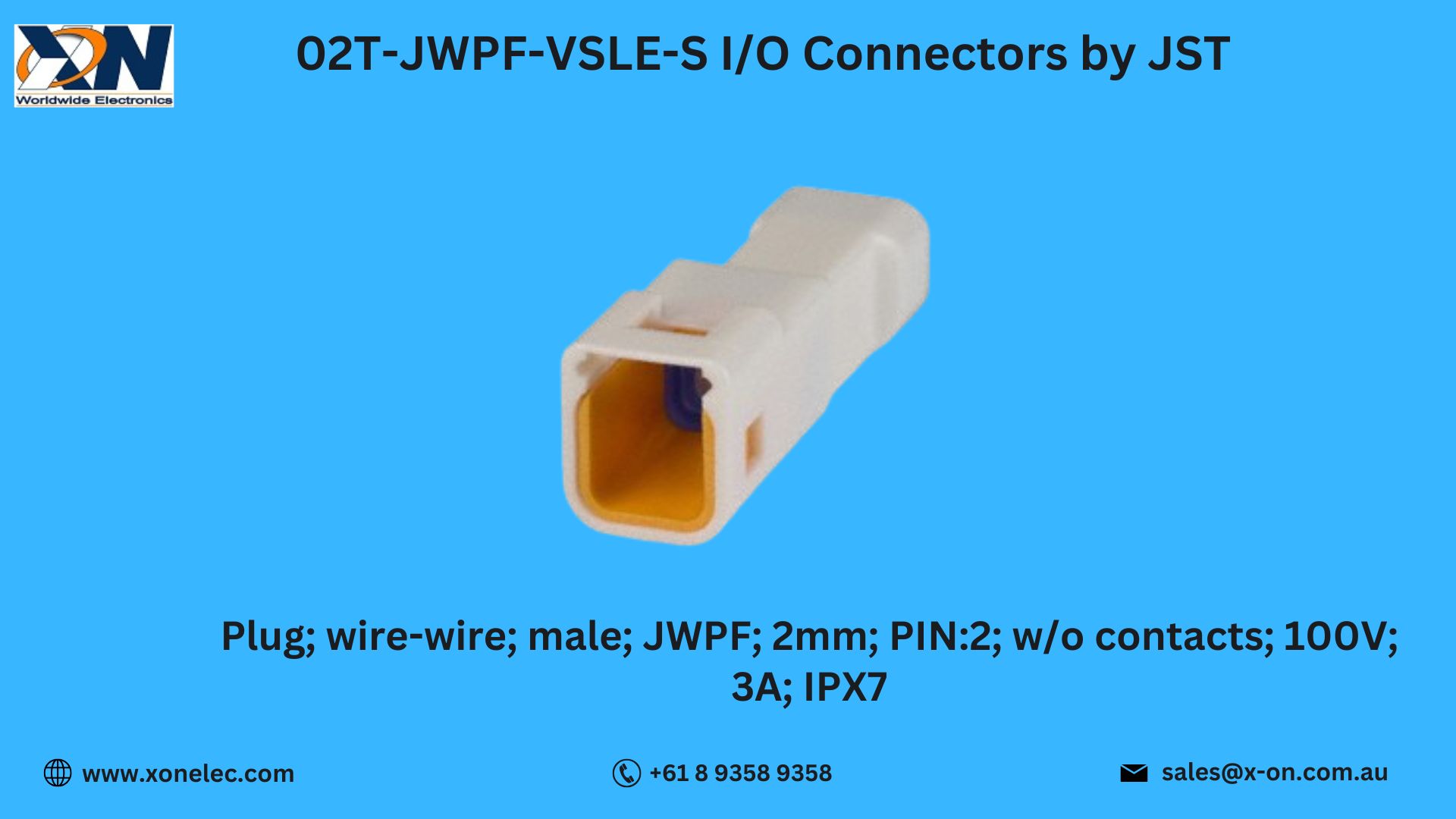

02T-JWPF-VSLE-S I/O Connectors by JST – IP67 Rated

02T-JWPF-VSLE-S I/O Connectors by JST – Waterproof & Compact I/O Connectivity Solution

The I/O Connectors 02T-JWPF-VSLE-S by JST are part of JST’s robust JWPF series, designed for secure and waterproof I/O connections in harsh environments. With a compact design and excellent sealing properties, these connectors are ideal for automotive, industrial control, and outdoor electronics applications. The 02T-JWPF-VSLE-S ensures dependable performance even under high-vibration and moisture-prone conditions.

In this blog, we’ll explore the technical specifications, key features, application areas, wiring configuration, and how to order or download the datasheet directly from Xon Electronics. If your design requires durable and compact connectivity, these I/O Connectors by JST are a top-tier choice.

Technical Specifications of 02T-JWPF-VSLE-S

• Manufacturer: JST (Japan Solderless Terminals)

• Series: JWPF

• Part Number: 02T-JWPF-VSLE-S

• Connector Type: Receptacle Housing

• Positions: 2

• Contact Type: Female Socket

• Waterproof Rating: IP67 (Mated Condition)

• Material: Nylon (UL94V-0 flame-retardant)

• Mounting Style: Free Hanging

• Operating Temperature Range: -40°C to +85°C

• Applications: Automotive, Industrial, Marine, LED Lighting Systems

• Category: Connectors, I/O Connectors, Waterproof Connectors

The 02T-JWPF-VSLE-S stands out for its compact form, high durability, and superior environmental resistance.

Key Features of 02T-JWPF-VSLE-S

• IP67 Waterproof Rating – Protects connections from water, dust, and corrosion

• Compact 2-Circuit Design – Saves space in tight applications

• Secure Locking Mechanism – Prevents accidental disconnections during vibration

• Durable Housing Material – Withstands harsh environments and high temperatures

• Mating Compatibility – Easily mates with other JWPF series terminals and housings

These features make the I/O Connectors by JST an optimal solution for critical systems requiring long-lasting, secure connections.

Applications of 02T-JWPF-VSLE-S

These I/O Connectors by JST are widely adopted across applications demanding compact, rugged connectivity:

• Automotive wiring harnesses and sensor modules

• Marine electronics and navigation systems

• LED lighting in outdoor installations

• Industrial control panels and machinery

• Smart agriculture and robotic systems

No matter the environment, the 02T-JWPF-VSLE-S ensures sealed and stable I/O interfacing.

Wiring and Connection Overview

Wiring the 02T-JWPF-VSLE-S involves simple steps:

1. Insert crimped contacts into the 2-position housing.

2. Mating with male plug from the JWPF series ensures waterproof sealing.

3. Use silicone seals to maintain the IP67 rating.

The secure fit and snap-lock feature ensure vibration resistance and mechanical reliability.

Use Case Scenario: LED Lighting in Outdoor Enclosures

Scenario: A lighting manufacturer needed a waterproof connector for LED installations exposed to rain and dust.

Problem: Standard connectors failed after prolonged outdoor use.

Solution: The 02T-JWPF-VSLE-S I/O Connectors by JST provided a compact and sealed connection, ensuring long-term reliability.

Result: The client reported zero connection failures over a 12-month test cycle in wet and dusty environments.

This highlights the value of using I/O Connectors by JST in mission-critical and weather-exposed applications.

Download Datasheet for 02T-JWPF-VSLE-S

Need more technical information?

Download the 02T-JWPF-VSLE-S Datasheet from Xon Electronics
(Insert product link when available)

Why Buy from Xon Electronics?

Xon Electronics offers a wide range of authentic JST components, including the 02T-JWPF-VSLE-S, with:

• 100% Genuine I/O Connectors by JST
• Global Shipping to USA, India, Australia, Europe & beyond
• Special Pricing for OEMs and Volume Orders
• Technical Integration Support
• Secure, Trusted Checkout Process

Shop at www.xonelec.com and get reliable components for your electronic projects.

Conclusion

The 02T-JWPF-VSLE-S I/O Connectors by JST are engineered for compact, high-performance, and waterproof connections. Their rugged build, IP67 rating, and secure mating system make them the go-to choice for automotive, industrial, and outdoor electronics. Available now at Xon Electronics with global shipping and OEM support.

FAQs – 02T-JWPF-VSLE-S I/O Connector

Q1. What is the waterproof rating of this connector?
It’s IP67-rated when mated, offering full protection against water and dust.

Q2. How many positions does it have?
This model supports 2 circuits.

Q3. Is it suitable for automotive environments?
Yes, it’s built to withstand vibration, moisture, and high temperatures.

Q4. Can I get technical support from Xon Electronics?
Absolutely. Xon provides expert integration support for all products.

Q5. Where can I buy it?
Order from www.xonelec.com with global shipping and secure checkout.
