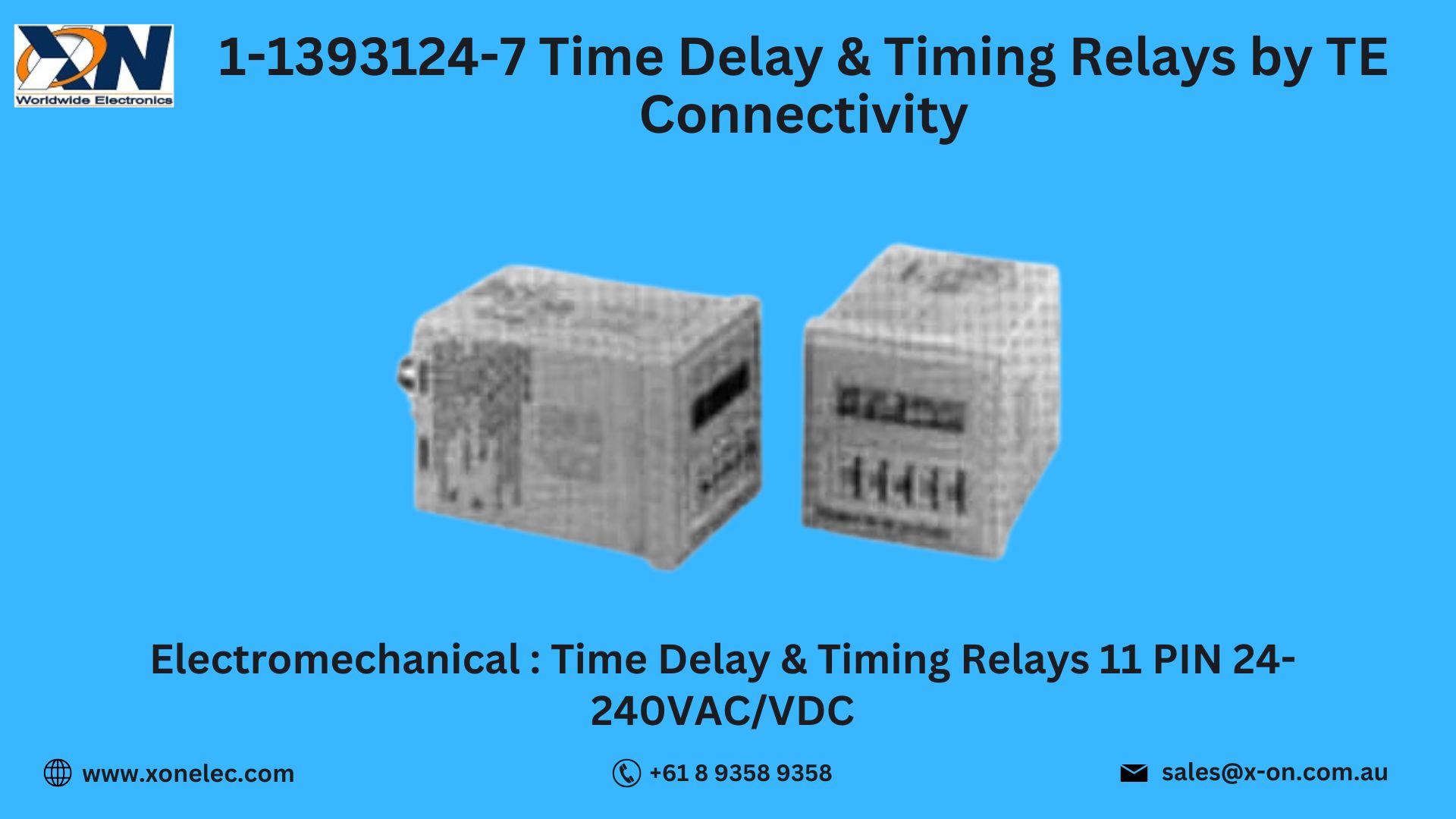

1-1393124-7 Time Delay & Timing Relays by TE Connectivity – Precision Control for Industrial Automation
The Time Delay & Timing Relays 1-1393124-7 by TE Connectivity are robust, reliable Electromechanical devices designed for accurate time-based switching in industrial and commercial applications. These versatile Relays are widely used in automation panels, motor control systems, lighting circuits, and safety interlocks, offering both delayed ON and delayed OFF functions with high precision.
In this blog, we explore the specifications, key features, typical applications, wiring overview, a real-world use case, and where to purchase or download the datasheet from Xon Electronics. These dependable Time Delay & Timing Relays ensure system safety, accuracy, and automation performance across industries.
Technical Specifications of 1-1393124-7
-
Manufacturer: TE Connectivity
-
Part Number: 1-1393124-7
-
Type: Time Delay & Timing Relays
-
Function: Delay ON, Delay OFF
-
Timing Range: 0.05 seconds to 300 hours
-
Contact Configuration: SPDT (Single Pole Double Throw)
-
Coil Voltage: 24V DC
-
Contact Rating: 10A @ 250V AC / 30V DC
-
Mounting: DIN rail or panel mount
-
Category: Electromechanical, Relays, Time Delay & Timing Relays
The 1-1393124-7 combines reliability with flexibility for automation professionals looking for top-tier Electromechanical control.
Key Features of 1-1393124-7 Relay
-
Wide adjustable timing range (from milliseconds to hours)
-
Compact design with easy DIN rail mounting
-
Clear LED indicators for power and timing status
-
SPDT contacts for versatile switching control
-
High-performance coil and contact durability
These features make the 1-1393124-7 Time Delay & Timing Relays by TE Connectivity essential for reliable industrial Relays and control systems.
Applications of 1-1393124-7 Relay
-
Industrial automation systems
-
HVAC controls and lighting circuits
-
Motor start/stop sequencing
-
Conveyor and pump control panels
-
Safety delay mechanisms in factory machines
These Time Delay & Timing Relays are indispensable tools in smart factory operations and efficient Electromechanical automation.
Wiring and Connection Overview
Wiring the 1-1393124-7 is straightforward:
-
Connect the coil terminals to 24V DC supply
-
Use the SPDT contacts to switch AC or DC loads
-
Mount securely on DIN rail or panel using clips
-
Adjust timing via the front-mounted rotary dial
This configuration ensures optimal timing accuracy and system responsiveness with reliable Relays.
Use Case Scenario: Motor Start Delay in Industrial Conveyor System
Scenario: An automation engineer needed a timed delay to avoid motor overloading during system startup.
Problem: Direct motor activation caused current surges and equipment wear.
Solution: The 1-1393124-7 Time Delay & Timing Relays by TE Connectivity introduced a configurable delay-on function, protecting components.
Result: Reduced mechanical stress, extended equipment life, and smoother system operation.
This real-world application shows the role of Electromechanical Relays in improving operational efficiency.
Download Datasheet for 1-1393124-7
Need full specs, pinout diagrams, and safety certifications?
Download 1-1393124-7 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is your go-to source for reliable Time Delay & Timing Relays with:
-
100% Genuine TE Connectivity Components
-
Fast Delivery to USA, India, Australia, Europe & other countries
-
Bulk Purchase Options for Industrial Buyers
-
Technical Support for Selection and Integration
-
Secure Online Ordering Platform
Get premium Electromechanical solutions for your automation needs.
FAQs – 1-1393124-7 Time Delay Relay
Q1. What voltage does the relay coil operate on?
24V DC.
Q2. Can I mount it on a DIN rail?
Yes, it supports DIN rail or panel mounting.
Q3. What is the timing adjustment range?
From 0.05 seconds up to 300 hours.
Q4. Is this relay suitable for motor control?
Absolutely—it’s perfect for start/stop delay applications.
Q5. Where can I buy this globally?
From www.xonelec.com with shipping to USA, India, Australia, Europe & more.
Conclusion
The 1-1393124-7 Time Delay & Timing Relays by TE Connectivity deliver precise, dependable control in automation and timing-critical circuits. Whether you're managing HVAC, motor systems, or safety devices, this component is an excellent fit for robust Electromechanical and Relay applications. Order today from Xon Electronics for reliable support and global delivery.
