10-01-3026 Molex 2-Circuit KK 254 Wire Housing

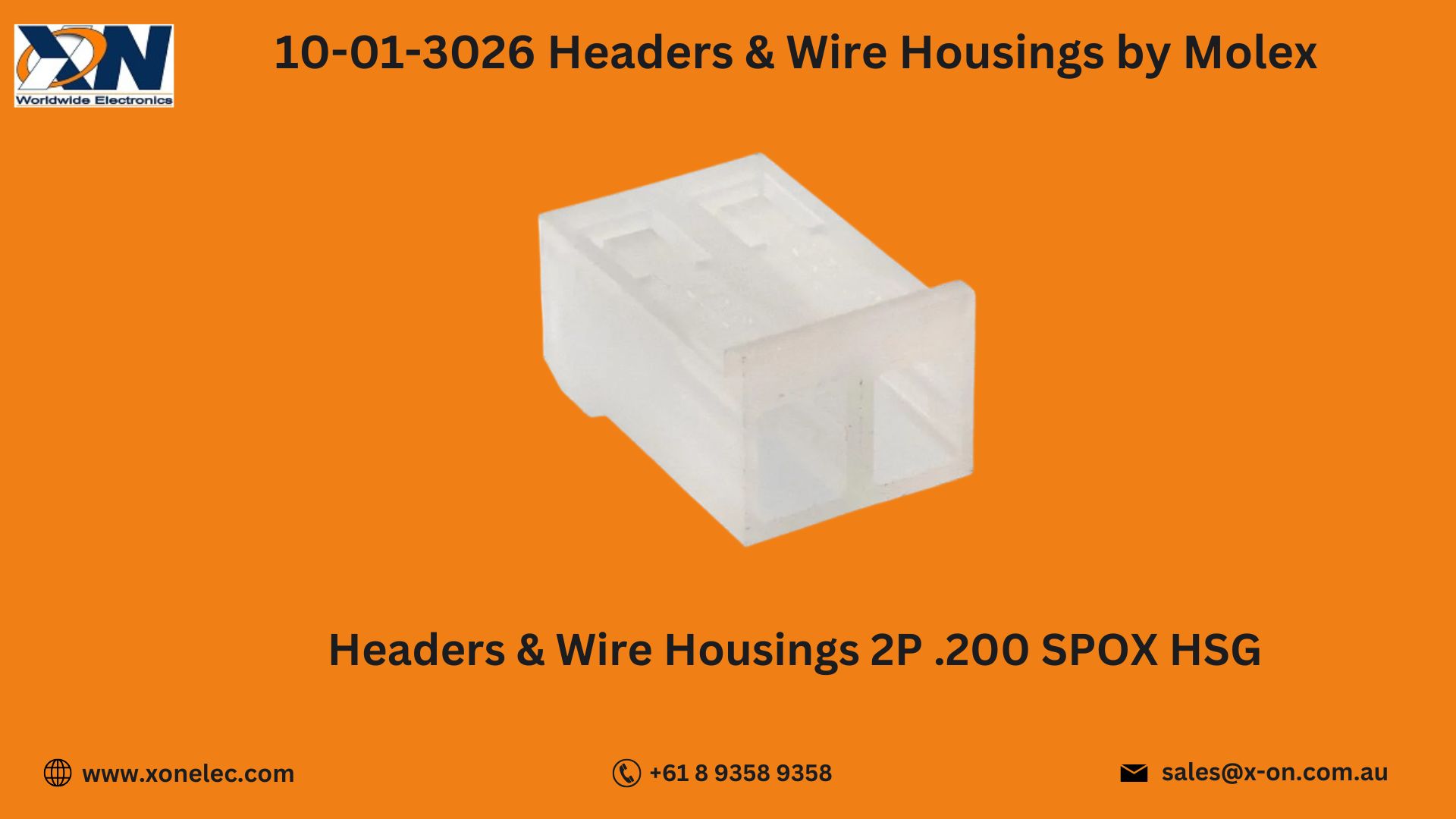

10-01-3026 – 2-Position Wire Housing by Molex for KK 254 Series Applications

The Headers & Wire Housings 10-01-3026 by Molex are 2-circuit, 2.54mm pitch wire housings from the popular KK 254 series. Engineered for secure, reliable, and compact wire-to-board connections, this housing is ideal for use in power supplies, LED lighting, industrial controls, and consumer electronics.

In this blog, we’ll review technical specs, key features, wiring instructions, real-world applications, and how to buy or download the datasheet from Xon Electronics.

Technical Specifications of 10-01-3026

Manufacturer: Molex
Part Number: 10-01-3026
Type: Wire Housing
Series: KK 254
Number of Circuits: 2
Pitch: 2.54 mm
Mounting Type: Free Hanging (Cable)
Material: Nylon 66, UL 94V-0 rated
Color: Natural
Operating Temperature: -40°C to +105°C
Category: Interconnects, Headers & Wire Housings by Molex

Designed to deliver secure mating and long-term durability, the 10-01-3026 Headers & Wire Housings by Molex are a reliable choice for low-power, compact connection solutions.

Key Features of 10-01-3026

2.54mm Pitch KK 254 Series Design – Ensures compatibility with standard Molex headers
2-Circuit Configuration – Ideal for basic power or signal connections
Durable Nylon Construction – Flame-retardant, high-temperature resistant
Positive Locking Mechanism – Prevents accidental disconnection
Tool-Free Assembly – Easy integration with Molex crimp terminals

These features make Headers & Wire Housings by Molex an industry-favorite for quick, repeatable, and secure wiring systems.

Applications of 10-01-3026 Connector Housing

LED Lighting Modules
Consumer Electronics and Home Appliances
Industrial Automation Equipment
Low-Voltage Power Supply Units
Automotive Signal Wiring

With dependable mechanical retention and compact design, 10-01-3026 Headers & Wire Housings by Molex are used extensively in high-reliability and space-constrained devices.

Assembly & Wiring Instructions

To assemble the 10-01-3026 housing:

[Step 1] Crimp Molex terminals (e.g., 08-50-0032) onto 22–30 AWG wires
[Step 2] Insert the terminals into the housing until they lock in place
[Step 3] Connect the housing to a 2.54mm pitch header on the PCB
[Step 4] Use optional friction lock for secure mating in high-vibration environments

Thanks to its ease of use, the Headers & Wire Housings by Molex streamline assembly processes and improve field serviceability.

Use Case Scenario – LED Driver Board Wiring

Scenario: An LED lighting manufacturer needed a compact and secure connector to link control boards with external drivers.

Problem: Bulky connectors didn’t fit within slim housings.

Solution: The 10-01-3026 wire housing provided the perfect balance of size and secure mating.

Result: Faster assembly, better reliability, and improved thermal performance.

Just another reason why Headers & Wire Housings by Molex are a go-to for engineers around the world.

Download Datasheet for 10-01-3026

Looking for full specs, CAD models, or compliance certifications?

[Download 10-01-3026 Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics stocks a full range of Headers & Wire Housings by Molex, including the 10-01-3026 model:

100% Genuine Molex Components
Global Delivery – USA, India, Australia, Europe & more
In Stock for Immediate Dispatch
OEM Support and Technical Assistance
Fast and Secure Online Shopping

Order today from www.xonelec.com and power your design with trusted Molex interconnects.

Conclusion

The 10-01-3026 Headers & Wire Housings by Molex offer robust design, compact form, and secure locking for reliable wire-to-board connectivity. Whether you're working on lighting systems, embedded electronics, or industrial panels, trust Headers & Wire Housings by Molex for proven performance and worldwide availability—now at Xon Electronics.
