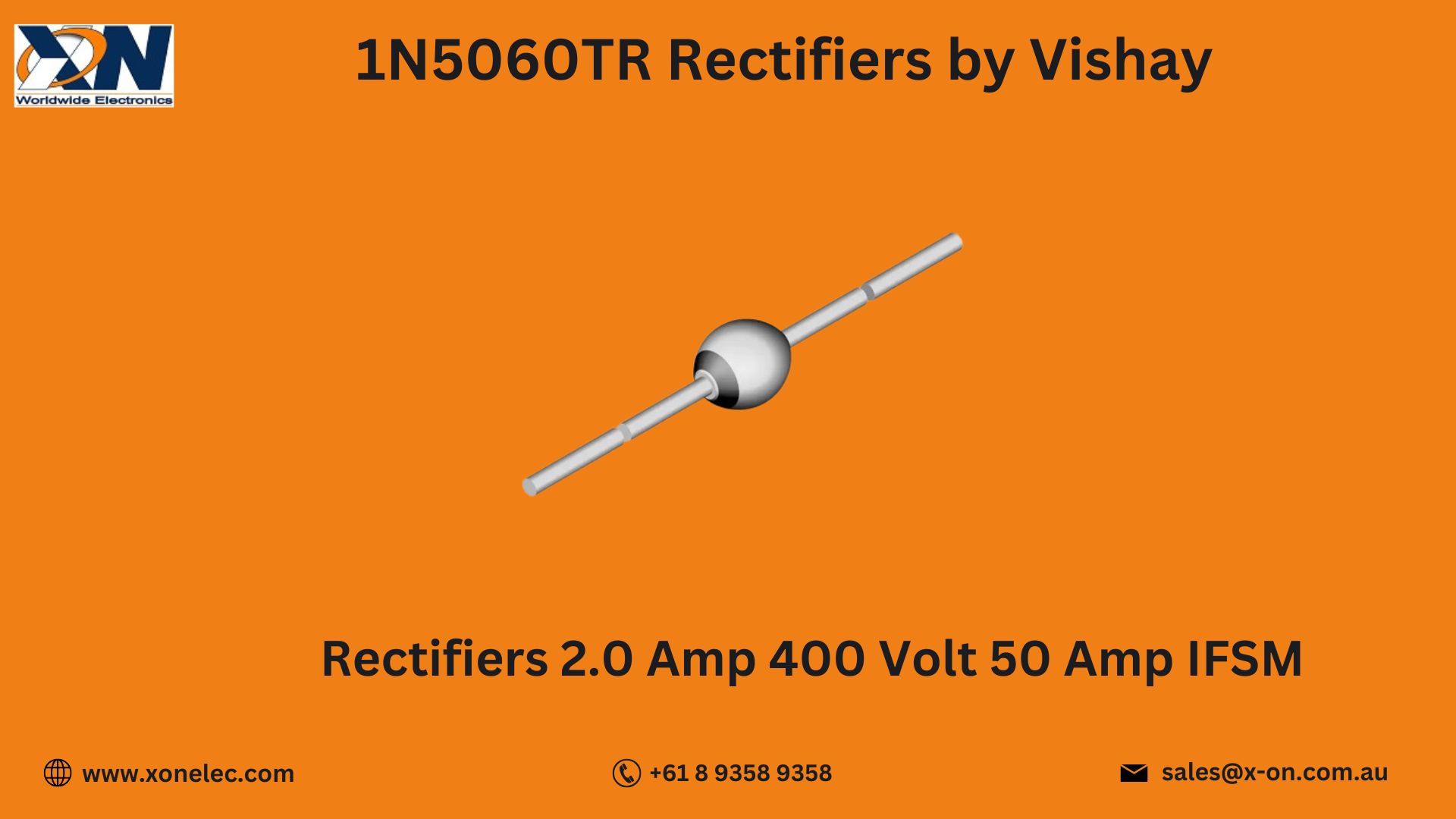

1N5060TR Rectifiers by Vishay – Efficient DO-204AL Diode for General Purpose Use

The Rectifiers 1N5060TR by Vishay are high-performance, general-purpose silicon diodes designed for efficient rectification in consumer, industrial, and automotive electronics. With a maximum repetitive reverse voltage of 600V and forward current of 1.5A, these rectifiers provide reliable performance in standard AC/DC conversion and signal processing tasks.

In this blog, we’ll explore technical specifications, core features, use cases, wiring details, and where you can purchase or download the datasheet from Xon Electronics. Whether you're building a power supply or updating a legacy PCB design, the 1N5060TR is a cost-effective and robust solution.


Technical Specifications of 1N5060TR

  • Manufacturer: Vishay

  • Part Number: 1N5060TR

  • Type: General-Purpose Rectifier Diode

  • Mounting Type: Through Hole

  • Package: DO-204AL (DO-41)

  • Maximum Repetitive Reverse Voltage: 600V

  • Average Rectified Current (Io): 1.5A

  • Peak Forward Surge Current: 50A

  • Forward Voltage Drop (VF): 1.1V @ 1.5A

  • Reverse Recovery Time: Standard

  • Operating Temperature: -65°C to +175°C

  • Category: Diodes, Rectifiers, Single

These Rectifiers by Vishay are optimized for rugged environments with a wide operating temperature range and reliable surge capability.


Key Features of 1N5060TR Rectifier

  • High Reverse Voltage – Up to 600V handling capacity

  • Robust Forward Current – Sustains 1.5A average load

  • Surge Protection – Withstands up to 50A surge current

  • Standard DO-204AL Package – Easy to mount in legacy and modern designs

  • Wide Temperature Range – Suitable for automotive and industrial applications

These attributes make the 1N5060TR Rectifiers by Vishay ideal for designers seeking both performance and compatibility in a compact diode solution.


Applications of 1N5060TR

The 1N5060TR Rectifiers by Vishay are commonly used in:

  • Power Supplies (AC to DC conversion)

  • DC Motor Drives

  • LED Drivers and Displays

  • Battery Chargers

  • Signal Demodulation

  • Home Appliance Control Boards

These rectifiers excel in rectification, reverse voltage blocking, and surge handling in both consumer and industrial systems.


Wiring and Connection Overview

[AC Input] — Connect anode to positive AC input and cathode to the DC output path

[DC Output] — Cathode feeds load or capacitor for voltage smoothing

Designed for through-hole mounting, the DO-204AL case ensures firm PCB anchoring and high thermal endurance.


Use Case Scenario: Power Adapter Rectifier Upgrade

Scenario: A consumer electronics OEM was redesigning a legacy 12V adapter to improve heat dissipation and handle occasional voltage spikes.

Problem: Existing diodes failed under repetitive surge conditions.

Solution: The 1N5060TR Rectifiers by Vishay delivered reliable performance at 600V with a 50A surge rating.

Result: Improved adapter durability, fewer field failures, and reduced warranty claims.


Download Datasheet for 1N5060TR

Looking for electrical characteristics, certifications, or thermal graphs?

 Download 1N5060TR Datasheet from Xon Electronics


Why Buy from Xon Electronics?

Xon Electronics is your global partner for authentic Vishay semiconductors like the 1N5060TR Rectifiers by Vishay, offering:

  • 100% Genuine Vishay Components
  • Worldwide Shipping – USA, India, Australia, Europe & more
  • Bulk Orders & OEM Discounts
  • Technical Documentation Support
  • Safe & Trusted Checkout

Order today at www.xonelec.com and upgrade your circuit with confidence.


Conclusion

The 1N5060TR Rectifiers by Vishay are dependable, compact, and versatile diodes that meet the demands of high-voltage, high-surge electronic applications. With DO-204AL packaging and 600V blocking capability, they deliver solid performance across industries. Now available at Xon Electronics with global shipping support.


FAQs – 1N5060TR Rectifier Diode

Q1. What is the maximum repetitive reverse voltage?
600V.

Q2. Is this diode surge-rated?
Yes, it can handle up to 50A of surge current.

Q3. What package type is it?
DO-204AL, also known as DO-41.

Q4. Can it be used in AC-DC power supplies?
Absolutely, it's designed for standard rectification tasks.

Q5. Where can I order it globally?
From www.xonelec.com, shipping to USA, India, Australia, Europe, and beyond.
