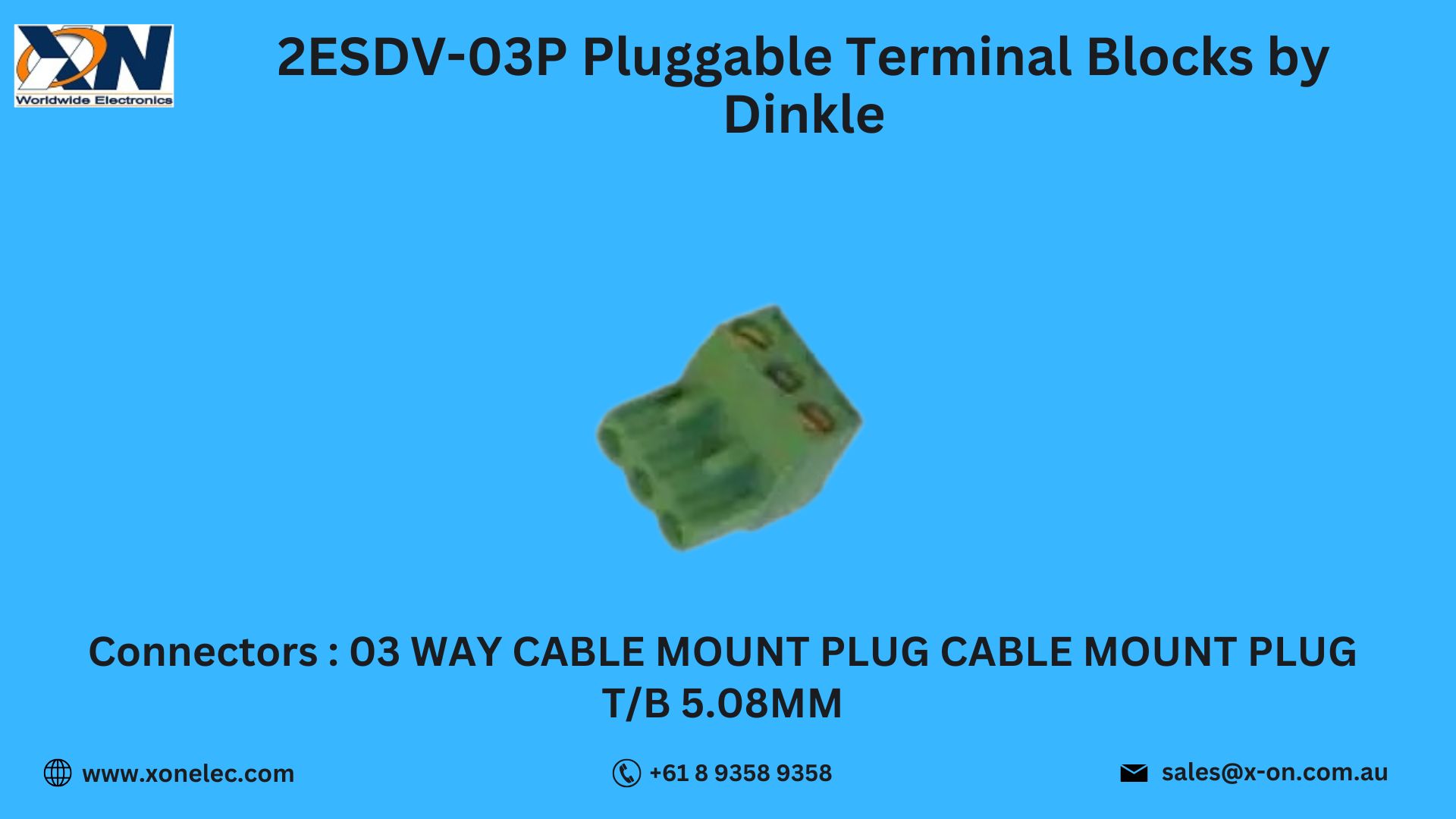

2ESDV-03P Pluggable Terminal Blocks by Dinkle – Compact and Reliable Connectivity Solutions
The Pluggable Terminal Blocks 2ESDV-03P by Dinkle are innovative Connectors designed for easy, secure, and efficient electrical connections in industrial and commercial systems. These Pluggable Terminal Blocks feature a space-saving design with reliable performance, making them ideal for control panels, automation systems, and power distribution setups.
In this blog, we’ll highlight the technical specifications, key features, applications, installation tips, and details for downloading the datasheet or purchasing from Xon Electronics. These Terminal Blocks are trusted globally for their durability and user-friendly design.
Technical Specifications of 2ESDV-03P
-
Manufacturer: Dinkle
-
Model: 2ESDV-03P
-
Type: Pluggable Terminal Blocks
-
Number of Positions: 3
-
Current Rating: 10A
-
Voltage Rating: 300V
-
Wire Size: 28-14 AWG
-
Pitch: 5.08mm
-
Mounting Type: Vertical PCB mount
-
Operating Temperature: -40°C to +105°C
-
Category: Connectors, Terminal Blocks, Pluggable Terminal Blocks
These Pluggable Terminal Blocks are optimized for compact and flexible wiring in modern electronic systems.
Key Features of 2ESDV-03P Pluggable Terminal Blocks
-
Vertical PCB mount design for efficient space utilization
-
Secure locking mechanism ensures vibration-resistant connections
-
Simplified plug-and-play design for fast installation and maintenance
-
High-temperature resistance for harsh industrial environments
-
Compatible with a wide range of Connectors and automation setups
The 2ESDV-03P Pluggable Terminal Blocks by Dinkle are ideal for engineers looking for versatile and durable Terminal Blocks.
Applications of 2ESDV-03P Pluggable Terminal Blocks
-
Industrial automation systems and control panels
-
Renewable energy systems such as solar power installations
-
Power distribution boards and monitoring equipment
-
Building management systems (BMS) and HVAC controls
-
OEM projects requiring modular Pluggable Terminal Blocks
These Connectors ensure efficient, secure, and scalable wiring solutions across industries.
Installation and Handling Overview
To integrate the 2ESDV-03P Terminal Block:
-
Solder the PCB-mounted header onto the circuit board.
-
Strip wire insulation and insert wires into the pluggable connector.
-
Tighten the screws to secure the wires firmly.
-
Plug the connector into the header until it locks in place for a secure connection.
These Pluggable Terminal Blocks make maintenance and upgrades simple and quick.
Use Case Scenario: Automation Panel Wiring
Scenario: An industrial automation company needed modular and easy-to-service Pluggable Terminal Blocks for compact panels.
Problem: Traditional terminal blocks made maintenance time-consuming and complex.
Solution: The 2ESDV-03P Pluggable Terminal Blocks by Dinkle offered plug-and-play functionality and saved space.
Result: Faster panel assembly, simplified field service, and improved system flexibility.
Download Datasheet for 2ESDV-03P
Need technical details and design specifications?
Download 2ESDV-03P Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics supplies genuine Dinkle Pluggable Terminal Blocks with:
-
100% Authentic Products for Industrial Applications
-
Fast Global Delivery to USA, India, Australia, Europe & more
-
OEM Discounts and Bulk Order Options Available
-
Technical Support for Easy Integration
-
Secure Online Ordering at www.xonelec.com
FAQs – 2ESDV-03P Pluggable Terminal Blocks by Dinkle
Q1. What is the pitch size of this terminal block?
It has a 5.08mm pitch for compact PCB layouts.
Q2. Can it handle high-vibration environments?
Yes, it includes a secure locking mechanism for reliable performance.
Q3. Is it suitable for renewable energy systems?
Absolutely. It is ideal for solar and other energy applications.
Q4. Can I reuse the connector during system upgrades?
Yes, the pluggable design allows for easy removal and reinstallation.
Q5. Does Xon Electronics ship globally?
Yes, shipping is available to USA, India, Australia, Europe & more.
Conclusion
The 2ESDV-03P Pluggable Terminal Blocks by Dinkle provide secure, modular, and efficient connectivity solutions for industrial and commercial applications. These premium Connectors are ideal for engineers and OEMs seeking reliable Terminal Blocks for modern systems. Order today from Xon Electronics for global delivery and expert support.
