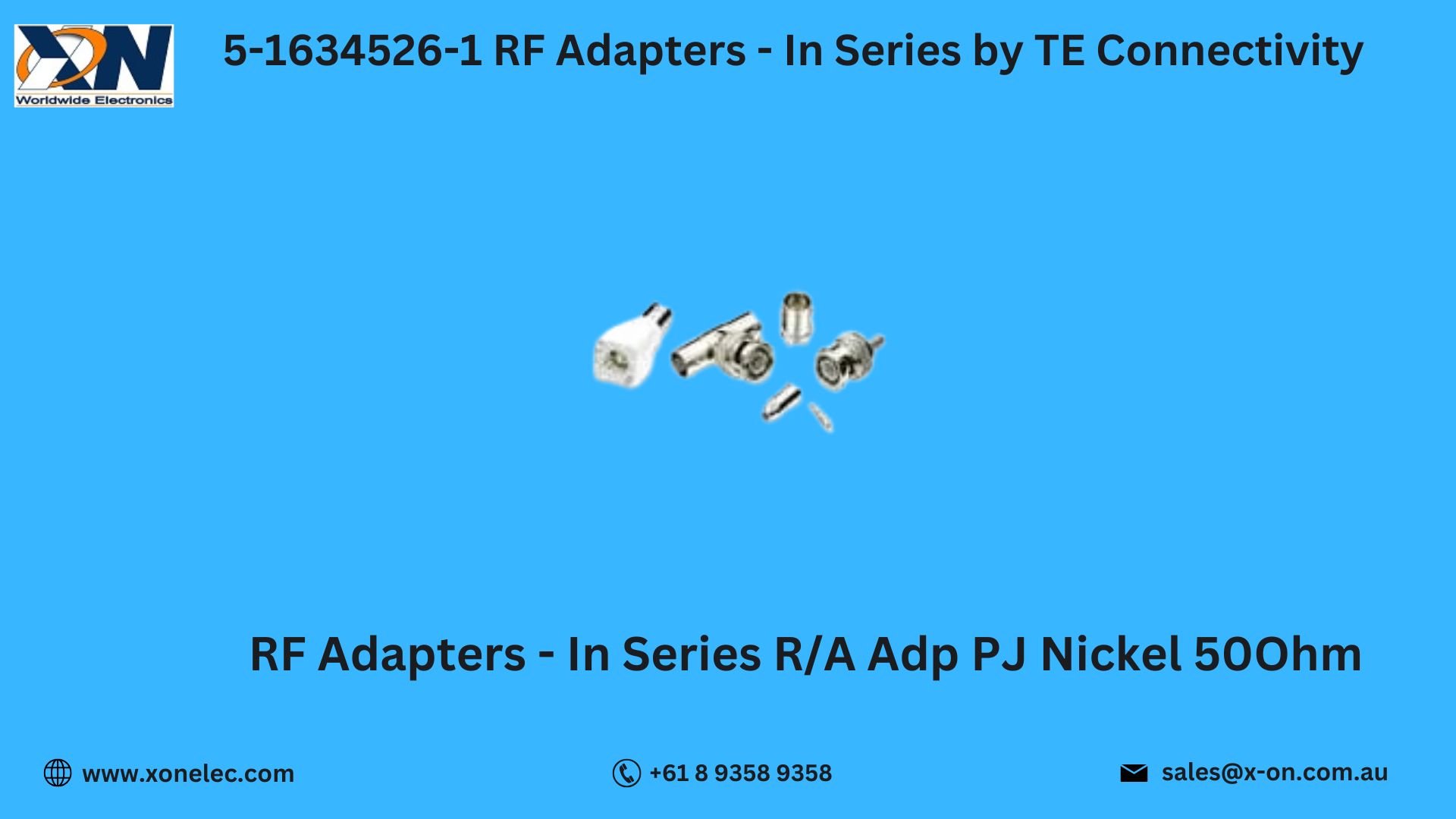

5-1634526-1 RF Adapters - In Series by TE Connectivity – Precision RF Connectivity for High-Frequency Applications
The RF Adapters - In Series 5-1634526-1 by TE Connectivity are engineered for secure, low-loss RF connections between identical connector interfaces. With precise impedance matching and high mechanical durability, these adapters ensure signal integrity in demanding RF applications. As part of the Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity family, they are a trusted choice for industries such as telecommunications, broadcast, aerospace, and defense.
In this blog, we’ll explore the specifications, features, applications, and why Xon Electronics is your go-to supplier worldwide.
Technical Specifications of 5-1634526-1
-
Manufacturer: TE Connectivity
-
Part Number: 5-1634526-1
-
Type: RF Adapter – In Series
-
Interface: SMA (Male to Male)
-
Impedance: 50 O
-
Frequency Range: DC to 18 GHz
-
Body Material: Stainless steel with gold-plated contacts
-
Category: Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity
These specs ensure stable, low-loss performance across a wide frequency range.
Key Features of 5-1634526-1 RF Adapters
-
High Precision Interface – Maintains consistent impedance for signal clarity
-
Wide Frequency Range – Up to 18 GHz for versatile RF applications
-
Durable Build – Stainless steel housing resists wear and corrosion
-
Gold-Plated Contacts – Ensures reliable electrical performance
-
Compact Design – Ideal for space-constrained RF setups
These qualities make the 5-1634526-1 RF Adapters - In Series by TE Connectivity a reliable solution in Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity projects.
Applications of 5-1634526-1
This RF adapter is widely used in:
-
Test and Measurement Equipment
-
Wireless Communication Systems
-
RF Signal Routing and Switching
-
Military and Aerospace Electronics
-
Broadcast and Antenna Systems
In each of these, Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity help ensure stable, high-frequency signal paths.
Connection Overview
The 5-1634526-1 RF Adapters - In Series by TE Connectivity simply connect two SMA male interfaces in a secure, low-resistance manner. Its precision machining ensures minimal VSWR and consistent performance.
Use Case Scenario: Laboratory RF Testing
Scenario: A research lab required a high-quality adapter for precision RF testing up to 18 GHz.
Problem: Low-grade adapters introduced signal loss and reflections.
Solution: The 5-1634526-1 RF Adapters - In Series by TE Connectivity delivered stable connections, minimal insertion loss, and long-term reliability.
Result: Accurate test measurements and reduced retesting.
Download Datasheet for 5-1634526-1
Need detailed mechanical drawings, electrical performance data, or installation guidelines?
Download 5-1634526-1 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics supplies genuine Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity with:
- 100% Original TE Connectivity Products
- Global Delivery – USA, India, Australia, Europe & more
- Bulk Pricing for OEMs and Labs
- Technical Expertise for RF Solutions
- Secure and Quick Ordering
Order now from www.xonelec.com for high-quality RF adapters shipped worldwide.
Conclusion
The 5-1634526-1 RF Adapters - In Series by TE Connectivity provide precise impedance control, low-loss performance, and rugged construction for professional RF applications. As part of the Connectors, RF Interconnects, RF Adapters, RF Adapters - In Series by TE Connectivity lineup, they’re a reliable choice for engineers and technicians worldwide. Available now from Xon Electronics with shipping to USA, India, Australia, Europe, and more.
FAQs – 5-1634526-1 RF Adapter
Q1. What frequency range does it support?
It supports DC to 18 GHz.
Q2. What is the interface type?
It’s an SMA in-series adapter (Male to Male).
Q3. Is it suitable for aerospace use?
Yes, it meets high-reliability standards for aerospace and defense.
Q4. Where can I buy it globally?
From www.xonelec.com, with delivery to USA, India, Australia, Europe, and other regions.
