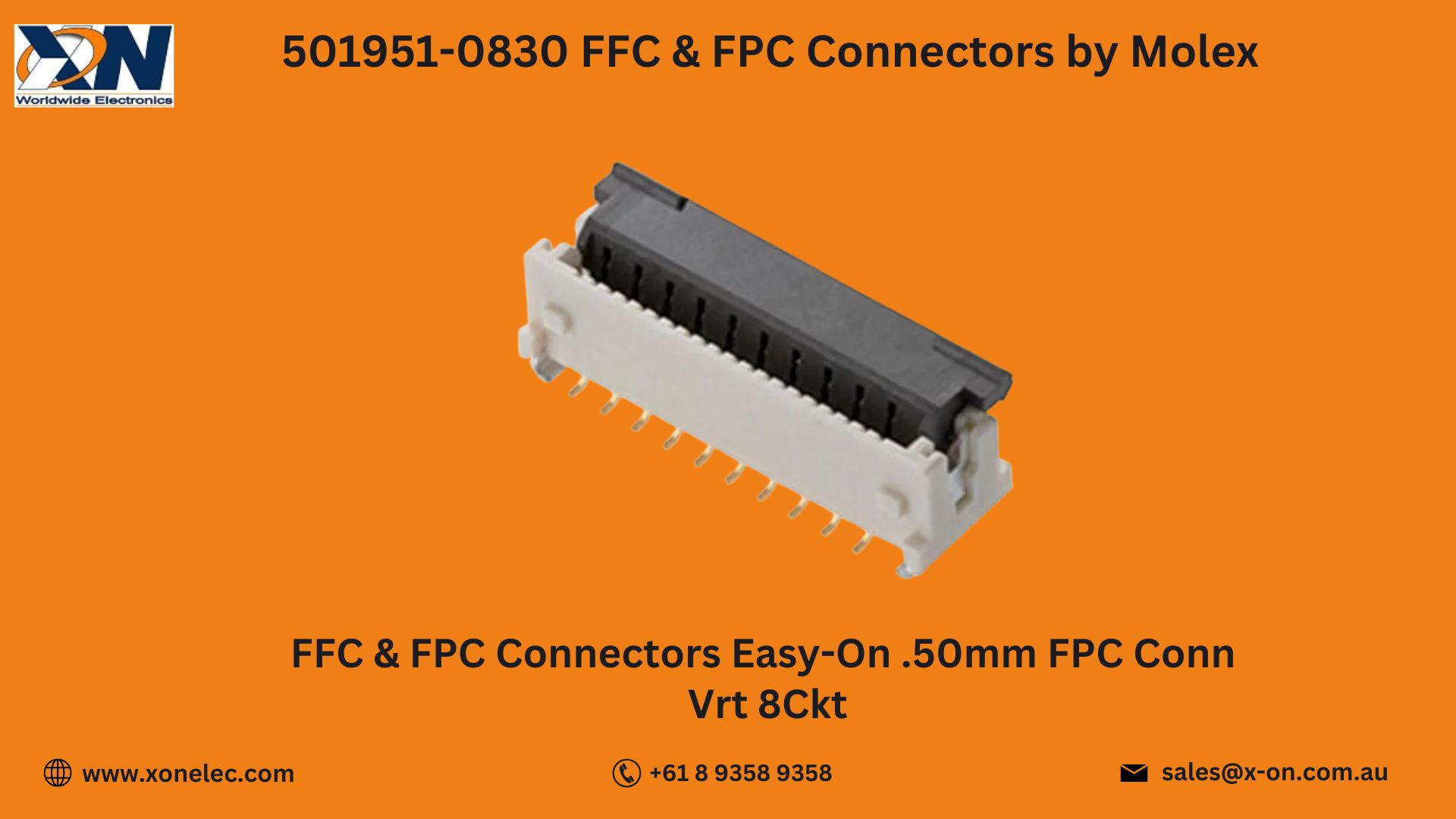

501951-0830 FFC & FPC Connectors by Molex – Compact 8-Circuit Connector for Flexible PCBs
The FFC & FPC Connectors 501951-0830 by Molex are compact, low-profile connectors designed to support flexible flat cable (FFC) and flexible printed circuit (FPC) designs. Engineered with 8 circuits and a 1.0mm pitch, this ZIF (Zero Insertion Force) connector offers reliable signal transmission, easy cable insertion, and secure latching—ideal for applications like LCDs, consumer electronics, medical devices, and automotive infotainment systems.
In this blog, we explore technical specs, features, real-world uses, wiring overview, and where you can purchase the connector or download its datasheet from Xon Electronics.
Technical Specifications of 501951-0830
-
Manufacturer: Molex
-
Part Number: 501951-0830
-
Type: FFC/FPC ZIF Connector
-
Number of Positions: 8 Circuits
-
Mounting Type: Surface Mount (SMT)
-
Orientation: Horizontal / Right Angle
-
Pitch: 1.00mm
-
Actuator Type: Flip-Lock
-
Current Rating: 0.5A
-
Voltage Rating: 50V AC/DC
-
Operating Temperature: -40°C to +85°C
-
Category: Connectors, FFC & FPC Connectors by Molex
This compact, SMT-compatible ZIF connector ensures stable, high-density PCB connections in modern compact electronic devices.
Key Features of 501951-0830 Connector
-
Compact 1.0mm Pitch – Space-saving design for tight PCB layouts
-
8-Circuit Configuration – Supports essential signal routing
-
Flip-Lock Actuator – Provides secure and tool-free cable retention
-
Low Profile (2.1mm Height) – Ideal for portable or slim devices
-
RoHS Compliant – Environmentally friendly and globally approved
These attributes make the 501951-0830 FFC & FPC Connectors by Molex a trusted choice among PCB designers and system engineers.
Applications of 501951-0830 Connector
The 501951-0830 FFC & FPC Connectors by Molex are used in:
-
LCD Display Interfaces
-
Touchscreens and Control Panels
-
Printers and Scanners
-
Medical Instruments
-
Automotive Displays and Navigation Systems
-
Wearables and Smart Devices
For any application requiring flexible and compact cable-to-board connectivity, this Molex connector offers optimal performance.
Wiring and Connection Overview
[FFC/FPC Cable Insertion] – Insert the flat cable into the connector housing
[Locking Mechanism] – Flip down the actuator to lock the cable in place securely
This tool-less installation ensures quick assembly and reliable signal transmission in compact device layouts.
Use Case Scenario: Smart Home Display Panel
Scenario: A smart home manufacturer needed a space-saving connector for connecting a touchscreen display to a main control PCB.
Problem: Standard connectors were too bulky and lacked secure cable retention.
Solution: The 501951-0830 FFC & FPC Connectors by Molex offered compact dimensions, flip-lock security, and 8-pin routing.
Result: Reduced PCB footprint, improved assembly time, and enhanced signal integrity in the final product.
Download Datasheet for 501951-0830
Need pin diagrams, mechanical dimensions, or footprint layouts?
Download 501951-0830 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
At Xon Electronics, we stock premium components like the 501951-0830 FFC & FPC Connectors by Molex, with:
- 100% Authentic Molex Products
- Global Delivery – USA, India, Australia, Europe & more
- OEM Discounts & Volume Orders
- Technical Guidance Available
- Secure Online Transactions
Order now from www.xonelec.com to power your design with precision and reliability.
Conclusion
The 501951-0830 FFC & FPC Connectors by Molex deliver precision, flexibility, and secure performance in a compact 1.0mm-pitch connector. Perfect for high-density electronic designs, these Molex connectors simplify cable-to-board connections in space-constrained devices. Available now at Xon Electronics with global shipping and expert support.
FAQs – 501951-0830 FFC/FPC Connector
Q1. How many circuits does this connector support?
It supports 8 circuits with a 1.00mm pitch.
Q2. What locking mechanism is used?
A flip-lock ZIF actuator ensures secure cable retention.
Q3. Is it suitable for surface mounting?
Yes, it's designed for SMT assembly.
Q4. Can this be used in automotive displays?
Yes, it’s suitable for infotainment and compact embedded systems.
Q5. Where can I buy this connector globally?
From www.xonelec.com, with shipping to USA, India, Australia, Europe, and other regions.
