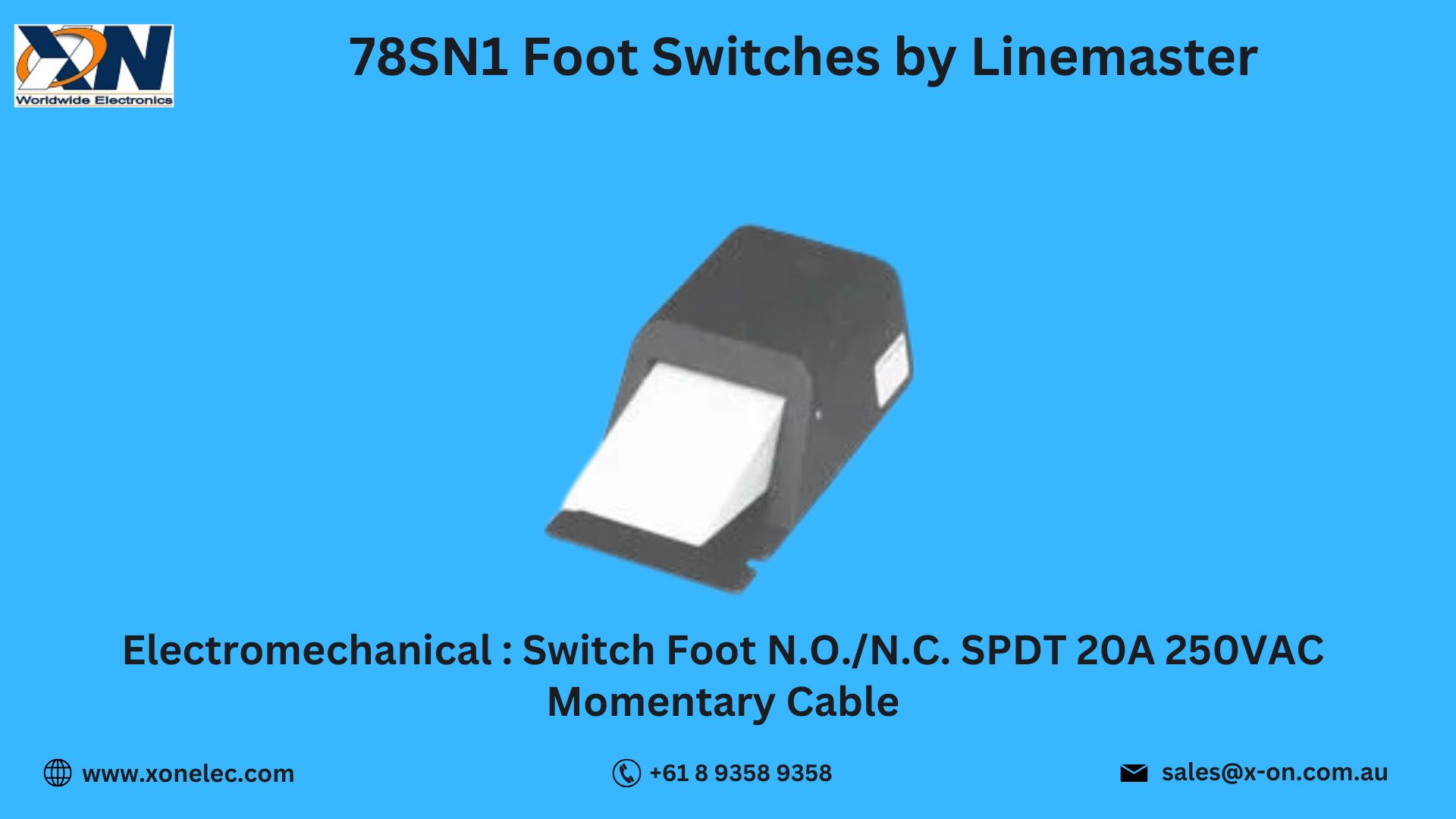

78SN1 Foot Switches by Linemaster – Rugged Control for Industrial Equipment

The Foot Switches 78SN1 by Linemaster are heavy-duty, momentary-action switches designed for hands-free operation in demanding environments. These high-performance Foot Switches are ideal for controlling machinery and tools in Industrial Automation setups where safety, convenience, and durability are top priorities. With Linemaster’s trusted design and engineering, the 78SN1 enhances workflow and reduces operator fatigue in high-traffic workstations.

This blog highlights the specifications, key features, application scenarios, wiring overview, and ordering information for the 78SN1—your go-to solution for robust Electromechanical control.

Technical Specifications of 78SN1

• Manufacturer: Linemaster

• Part Number: 78SN1

• Category: Electromechanical, Industrial Automation, Industrial Switches, Foot Switches

• Switch Function: SPDT, Momentary

• Actuation: Foot-operated, treadle-style

• Contact Rating: 10A @ 125/250VAC

• Housing Material: Cast aluminum

• Enclosure Type: Industrial-grade, corrosion-resistant

• Mounting: Base-mountable

• Ingress Protection: NEMA-rated enclosure (weather-resistant)

• Color: Safety yellow

• Compliance: UL, CSA, RoHS

Built for rugged field and factory environments, the 78SN1 delivers reliable performance across a range of Industrial Switches.

Key Features of 78SN1 by Linemaster

• Durable Construction – Heavy-duty aluminum housing for long-lasting service

• Hands-Free Operation – Increases efficiency and safety during machinery use

• High Current Handling – Rated for up to 10A at 250VAC

• Compact and Stable Design – Non-slip base and ergonomic pedal

• Field-Ready Protection – Suitable for use in dusty or wet conditions

This foot switch stands out among Electromechanical components for offering rugged operation and ergonomic design in Industrial Automation workflows.

Applications of 78SN1 Foot Switches

The 78SN1 Foot Switches are widely used in various industrial and commercial environments:

• Medical and Dental Equipment Control

• Power Tool and Press Operations

• Sewing and Textile Machines

• Welding Stations and Cutting Tables

• Assembly Line Automation

• Packaging and Material Handling Systems

Engineers and technicians rely on Foot Switches like the 78SN1 for precise and safe activation of equipment in Industrial Automation environments.

Wiring and Connection Overview

Basic installation and usage of the 78SN1 Foot Switch:

• Wiring Terminals: Internal terminal screws for secure connection

• Switch Contacts: SPDT contacts allow NO or NC configuration

• Cable Entry: Strain relief provided for incoming wiring

• Mounting Options: Can be floor-mounted or left portable for mobile use

• Safety Consideration: Mount on non-slip surface in operator zone

This easy integration makes it a favorite among Industrial Switches for field and factory deployment.

Use Case Scenario: Assembly Line Machine Control

Scenario: An electronics manufacturer needed a hands-free switch to operate soldering tools on their assembly line.

Problem: Manual switches slowed down work and posed safety risks with occupied hands.

Solution: They implemented 78SN1 Foot Switches by Linemaster to provide precise, hands-free operation for each technician.

Result: Enhanced safety, reduced cycle time, and better overall workflow—powered by rugged, high-performance Foot Switches in a busy Industrial Automation setting.

Why Buy from Xon Electronics?

Xon Electronics supplies top-grade Foot Switches and other Industrial Switches with:

• 100% Authentic Linemaster Products
• Worldwide Shipping – USA, India, Australia, Europe & more
• OEM and Bulk Orders Available
• Technical Support for Configuration
• Secure Online Shopping Experience

Visit www.xonelec.com to source industry-trusted Electromechanical components for your next Industrial Automation build.

Conclusion

The 78SN1 Foot Switches by Linemaster are purpose-built for hands-free control in tough industrial conditions. With a weather-resistant design, robust electrical rating, and ergonomic foot pedal, it’s a top performer in the field of Industrial Switches and Foot Switches.

Now available from Xon Electronics—your trusted supplier for professional Electromechanical solutions in Industrial Automation systems.

FAQs – 78SN1 by Linemaster

Q1. What is the switch type of the 78SN1?
It is a single-pole, double-throw (SPDT) momentary foot switch.

Q2. Can it be used outdoors?
Yes, it features a NEMA-grade enclosure suitable for outdoor or wet conditions.

Q3. Is it suitable for high-load applications?
Yes, it handles up to 10A at 250VAC.

Q4. How do I wire the switch?
It includes internal terminal screws compatible with standard 18–12 AWG wire.
