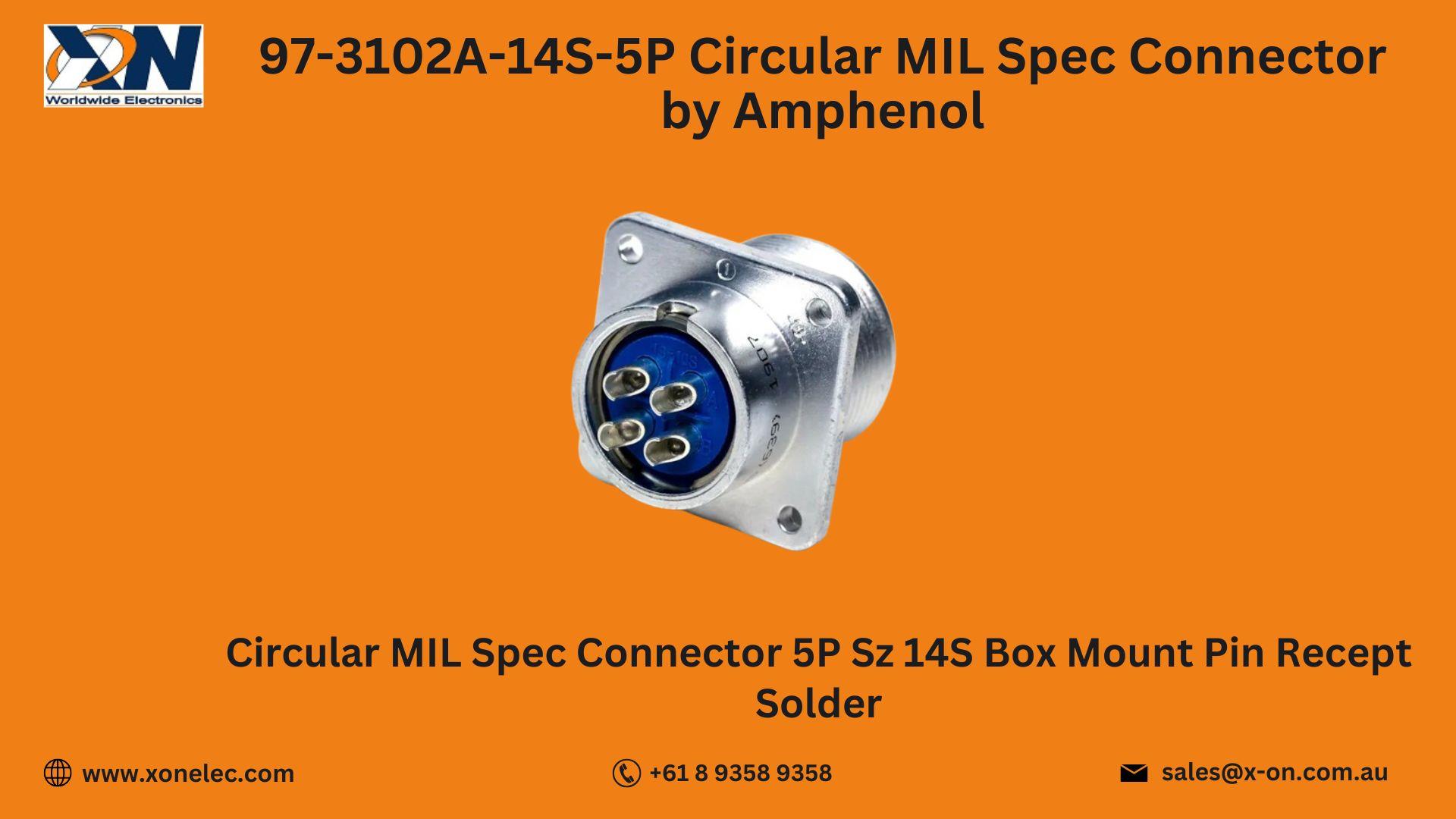

97-3102A-14S-5P Circular MIL Spec Connector by Amphenol Devices
Introduction
Looking to upgrade your design with high-reliability interconnects? The Circular MIL Spec Connector 97-3102A-14S-5P by Amphenol is engineered for robust performance. Among Connectors, this one stands out for durability, solder-cup contacts, and a MIL-5015 standard build. Whether for automotive, defence, industrial machinery or robotics, these Circular MIL Spec Connectors ensure solid, trusted connectivity.
Technical Specifications
| Specification |
Detail |
| Manufacturer |
Amphenol Industrial |
| Series / Model |
97-3102A-14S-5P |
| Connector Type |
Circular MIL Spec Connector by Amphenol, box mount receptacle, male pins (solder cup) |
| Number of Positions / Contacts |
5 positions (5P) |
| Insert Arrangement |
14S-5 |
| Shell Style |
Box Mount Receptacle (97 series, shell size 14S) |
| Material – Shell |
Aluminum alloy with cadmium plating and olive-drab chromate finish |
| Contact Material & Finish |
Copper alloy (brass), silver-plated, solder cup contacts |
| Termination Style |
Solder cup |
| Coupling / Mating Style |
Threaded coupling, box mount, polarized keyway |
| Operating Temperature |
-55 °C to +125 °C |
| Standard / Specification |
MIL-DTL-5015 (SAE AS50151 style general-duty) |
Key Features
-
Rugged Construction: The shell is aluminum alloy, with cadmium plating and olive drab chromate, offering resistance to corrosion and physical wear.
-
Reliable Contact System: Silver-plated solder cup contacts with hardened dielectric insert deliver consistent electrical performance.
-
High Temperature Range: Functional from -55 °C to +125 °C, suitable for automotive, aerospace, industrial settings.
-
MIL Spec Standard Compliance: As a member of the 97 series, this unit complies with the MIL-DTL-5015 style, giving you a trusted Circular MIL Spec Connector by Amphenol that intermates with other 97 / MIL-5015 devices.
-
Versatile Mounting: The box mount receptacle design allows panel or chassis mounting, securing connections in fixed installations.
Applications
The 97-3102A-14S-5P Circular MIL Spec Connector by Amphenol is ideal for:
-
Industrial machinery & automation where robust power or signal connections are needed
-
Aerospace or defence equipment requiring MIL-spec compliance
-
Vehicles, off-road or marine environments exposed to vibration, temperature extremes, and moisture
-
Robotics, sensors, instrumentation where durability and reliable mating/polarization are needed
-
Harsh-environment outdoor or mobile systems
Wiring & Connection
-
Mounting: Install the box receptacle shell into the panel or chassis using the flange mount. Ensure proper orientation using the polarized keyway.
-
Wire Preparation: Strip wires, tin ends if needed, then solder into the solder-cup contacts per the datasheet.
-
Mating: Use corresponding plug of the 97 series (threaded coupling) to connect. Tighten coupling to recommended torque for secure contact.
-
Sealing / Accessories: Use matching hardware for caps, backshells, or cable clamps if environmental sealing is required.
Use Case Scenario
Suppose you're designing a control panel for heavy-duty agricultural machinery. You need connectors that can tolerate vibration, dust, temperature swings, and occasional moisture. The 97-3102A-14S-5P Circular MIL Spec Connector by Amphenol is mounted on the panel, and its silver-solder contacts handle power and sensor wiring reliably. The olive drab, cadmium-plated shell protects against corrosion. This connector keeps your signals clean and your equipment running without frequent failure.
Datasheet Download
Download the full datasheet for 97-3102A-14S-5P from Amphenol or authorized distributors for exact dimensions, torque specs, material certifications, and mating plug compatibility.
Why Buy from Xon Electronics
-
We stock genuine Circular Connectors and Circular MIL Spec Connectors from Amphenol, ensuring authenticity.
-
Complete documentation, quality verification, and support for technical queries.
-
Global shipping: we supply customers in USA, Europe, India, Australia, and many other countries.
-
Competitive pricing and bulk-order discounts.
Conclusion
When you need a durable, MIL-spec Circular MIL Spec Connector by Amphenol for demanding environments, the 97-3102A-14S-5P delivers. It gives you solder-cup reliability, strong shell material, and temperature resilience. Whether in defence, industrial automation, or harsh outdoor systems, this Circular Connector will be a dependable choice.
