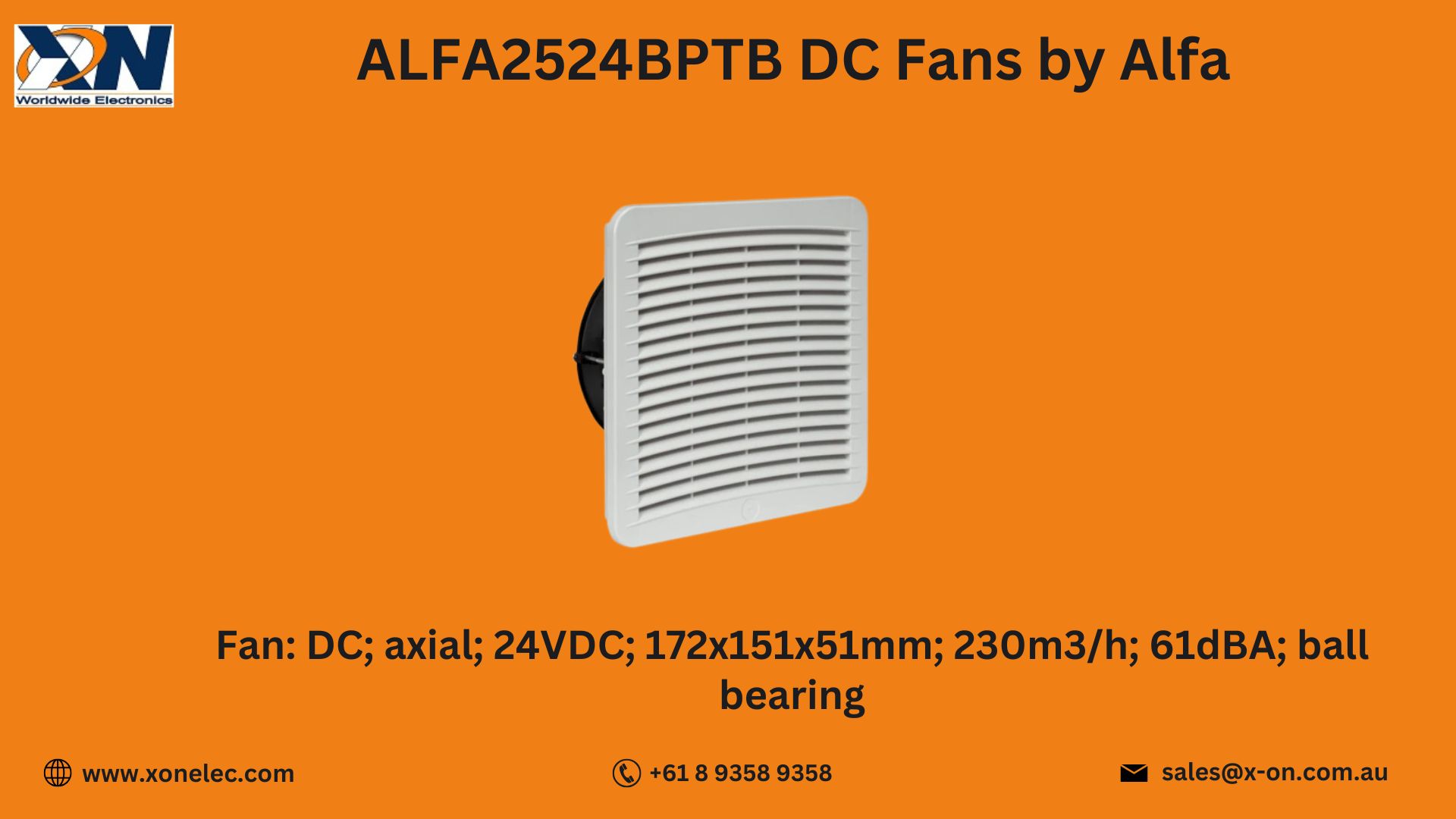

ALFA2524BPTB DC Fans by Alfa – Compact Cooling Power for Efficient Thermal Management
The DC Fans ALFA2524BPTB by Alfa are high-reliability cooling solutions designed for compact and demanding applications. With a brushless motor and high airflow efficiency, this 24V DC fan is ideal for power supplies, industrial controllers, and communication equipment that require consistent cooling in tight spaces. These fans are part of a broader line of Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa that deliver long service life, low power consumption, and quiet operation.
In this article, we’ll examine the technical specifications, performance advantages, and real-world applications of DC Fans by Alfa, now available at Xon Electronics.
Technical Specifications of ALFA2524BPTB
-
Manufacturer: Alfa
-
Part Number: ALFA2524BPTB
-
Fan Type: Brushless DC Fan
-
Rated Voltage: 24V DC
-
Current: 0.06A
-
Speed: 7200 RPM
-
Airflow: 3.35 CFM
-
Noise Level: 21 dBA
-
Dimensions: 25 x 25 x 10 mm
-
Category: Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa
This miniature fan delivers strong airflow performance in a compact 25mm footprint—perfect for high-density circuit boards and thermal-sensitive electronics.
Key Features of ALFA2524BPTB
-
High-Speed Operation – 7200 RPM for consistent cooling
-
Low Power Draw – Just 0.06A current, efficient for battery-powered devices
-
Quiet Performance – 21 dBA sound rating ensures minimal noise
-
Compact Size – 25mm frame fits easily into space-constrained enclosures
-
Brushless Motor – Extended life and reduced maintenance
These features make Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa an ideal fit for designers who need long-term cooling performance in small-scale electronic products.
Applications of ALFA2524BPTB DC Fan
The ALFA2524BPTB DC Fans by Alfa are suited for:
-
Power supply modules
-
Communication base stations and routers
-
Industrial control boards
-
Small enclosures and electronic panels
-
Battery-powered cooling devices
For consistent performance and compact design flexibility, engineers rely on Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa.
Installation and Wiring Overview
Wiring is straightforward:
Red Wire - +24V DC
Black Wire - Ground
Optional Yellow Wire - Tach Output (Speed Monitoring)
The fan is mounted via standard screw holes and operates from a regulated 24V power supply, making it easy to integrate into various PCB layouts.
Use Case Scenario: Compact Power Supply Cooling
Scenario: A power supply manufacturer was facing thermal issues in a tightly packed 1U chassis design.
Problem: Heat buildup was leading to component failure and reduced MTBF.
Solution: Engineers integrated ALFA2524BPTB DC Fans by Alfa, providing localized airflow directly to the heat-critical zones.
Result: Improved reliability, longer product life, and quieter operation—highlighting the value of Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa in tight industrial spaces.
Download Datasheet for ALFA2524BPTB
Want to review full specs or CAD files?
Download ALFA2524BPTB Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Get genuine Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa with full assurance from Xon Electronics:
- Verified Alfa Components
- Worldwide Delivery – USA, India, Australia, Europe & More
- Bulk Order Discounts for OEMs
- Technical Support & Compatibility Advice
- Safe & Fast Checkout Process
Order now at www.xonelec.com
Conclusion
The ALFA2524BPTB DC Fans by Alfa offer high airflow in a compact design, making them ideal for demanding thermal applications. Their quiet operation, energy efficiency, and brushless reliability make them essential in today’s high-performance electronics. Choose Thermal Management, Fans & Blowers, Fans, DC Fans by Alfa from Xon Electronics with fast delivery to USA, India, Australia, Europe, and other global regions.
FAQs – ALFA2524BPTB by Alfa Devices
Q1. What voltage does the ALFA2524BPTB fan operate on?
It operates at 24V DC with a current draw of 0.06A.
Q2. Is this fan suitable for compact enclosures?
Yes, its 25x25x10mm size makes it perfect for tight spaces.
Q3. What is the noise level of this fan?
It runs quietly at just 21 dBA, ideal for noise-sensitive applications.
Q4. Can it be used in telecom devices?
Absolutely, it's perfect for routers, base stations, and more.
Q5. Where can I buy this product globally?
You can order it from www.xonelec.com with shipping to USA, India, Australia, Europe, and other countries.
