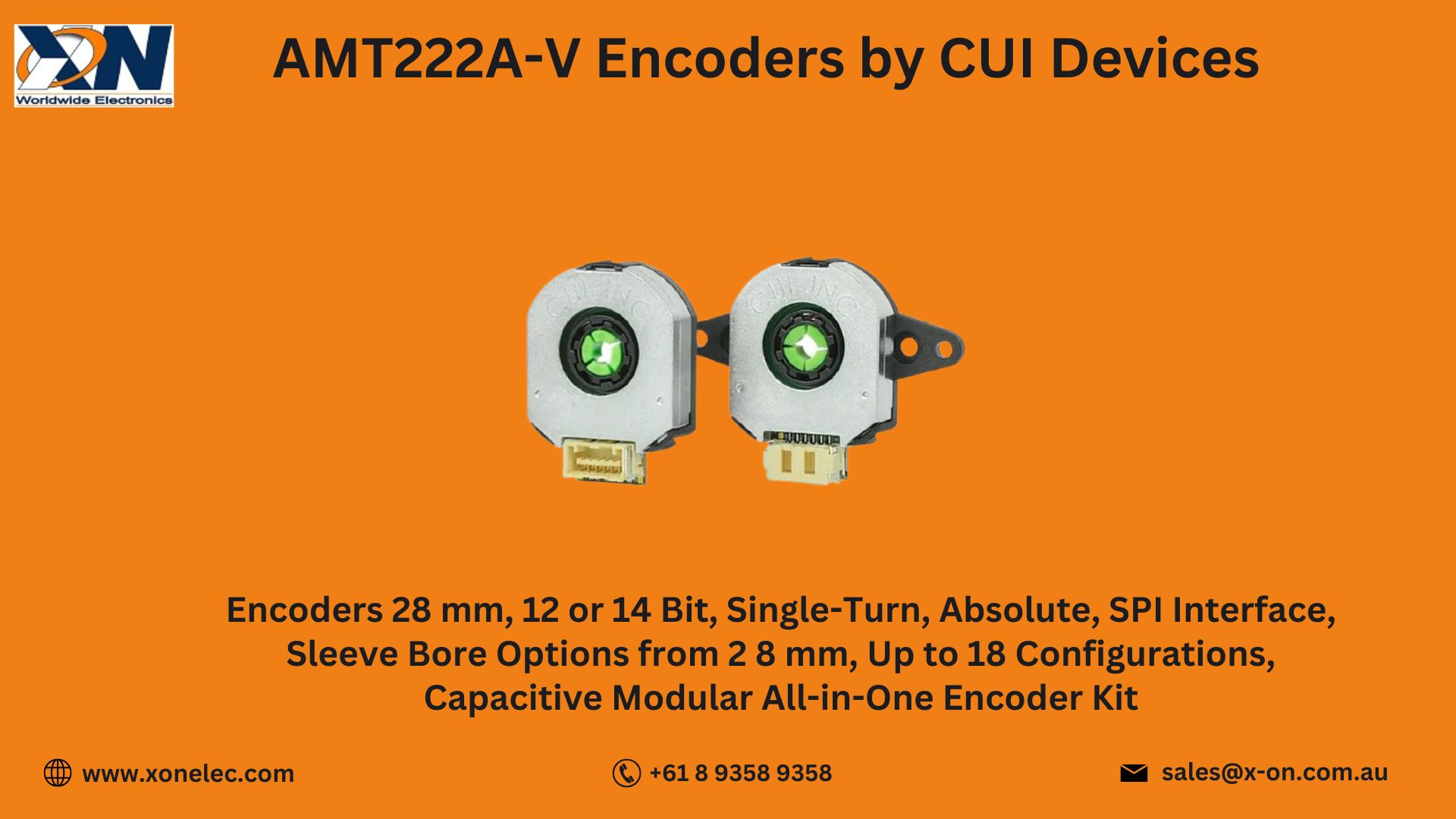

AMT222A-V Encoders by CUI Devices for Precision Control

AMT222A-V Encoders by CUI Devices – Compact, Precise Feedback for Motion Control Systems

The Encoders AMT222A-V by CUI Devices are high-resolution, capacitive rotary encoders that deliver reliable and precise position feedback in motion control applications. With their compact design, low power consumption, and immunity to environmental contaminants, these encoders are ideal for robotics, industrial automation, and motor control systems. In this blog, we’ll highlight the technical specifications, top features, common applications, wiring setup, and how to order the AMT222A-V Encoders by CUI Devices from Xon Electronics.

Technical Specifications of AMT222A-V

Manufacturer: CUI Devices
Part Number: AMT222A-V
Type: Capacitive Rotary Encoder
Resolution: Up to 4096 PPR (Programmable)
Output Type: SPI
Supply Voltage: 3.3V to 5.5V
Shaft Type: Hollow shaft
Mounting Options: Multiple bolt patterns
Operating Temperature: -40°C to +125°C
Ingress Protection: IP50
Category: Sensors, Rotary Encoders, Feedback Devices

The AMT222A-V Encoders by CUI Devices offer a robust signal output with excellent noise immunity, making them ideal for high-speed, high-precision environments.

Key Features of AMT222A-V Encoders

Capacitive Sensing Technology – Immune to dirt, dust, and oil unlike optical encoders
Programmable Resolution – Customize up to 4096 positions per revolution
SPI Interface – Fast and accurate digital communication
Low Power Consumption – Ideal for energy-efficient systems
Modular Design – Multiple mounting and shaft options for easy integration
Wide Voltage Range – Operates reliably from 3.3V to 5.5V

These features make the Encoders by CUI Devices a top-tier choice for engineers seeking long-lasting, precise motion feedback solutions.

Applications of AMT222A-V Encoders

The AMT222A-V Encoders by CUI Devices are widely used in systems requiring accurate angular feedback and programmable control:

Servo Motor Feedback Systems
Robotics and Automation
3D Printers and CNC Machines
Industrial Motor Drives
Medical Equipment
Laboratory Instruments

Thanks to their rugged performance and programmable features, Encoders by CUI Devices meet the needs of even the most demanding environments.

Wiring and Connection Overview

Typical SPI Connection Setup:

VCC ? 3.3V–5.5V Supply
GND ? Ground
CLK, MOSI, MISO ? Connect to MCU SPI Interface
CS ? Chip Select from Controller

The AMT222A-V includes a diagnostic LED and comes with alignment tools, making installation quick and error-free.

Use Case Scenario: Precision Robotics Joint Feedback

Scenario: A robotics company needed precise joint position feedback for real-time motion correction.
Problem: Optical encoders failed due to dust and tight spaces.
Solution: The AMT222A-V Encoders by CUI Devices were installed due to their dust immunity and compact footprint.
Result: Improved control accuracy, extended system uptime, and smoother motion response.

This example showcases how Encoders by CUI Devices outperform traditional optical sensors in tough industrial conditions.

Download Datasheet for AMT222A-V

Need detailed electrical specifications, resolution settings, or mechanical drawings?

[Download AMT222A-V Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics provides reliable sourcing for high-quality feedback components like the Encoders by CUI Devices:

100% Authentic CUI Devices Products
Fast Global Shipping – USA, India, Australia, Europe & more
OEM Bulk Pricing & Flexible Ordering
Technical Assistance for Integration
Safe and Fast Checkout at www.xonelec.com

Conclusion

The AMT222A-V Encoders by CUI Devices deliver exceptional value in precision control applications. With their capacitive design, programmable resolution, and SPI output, they are the smart choice for robust and compact motion feedback. Available now at Xon Electronics with global delivery.
